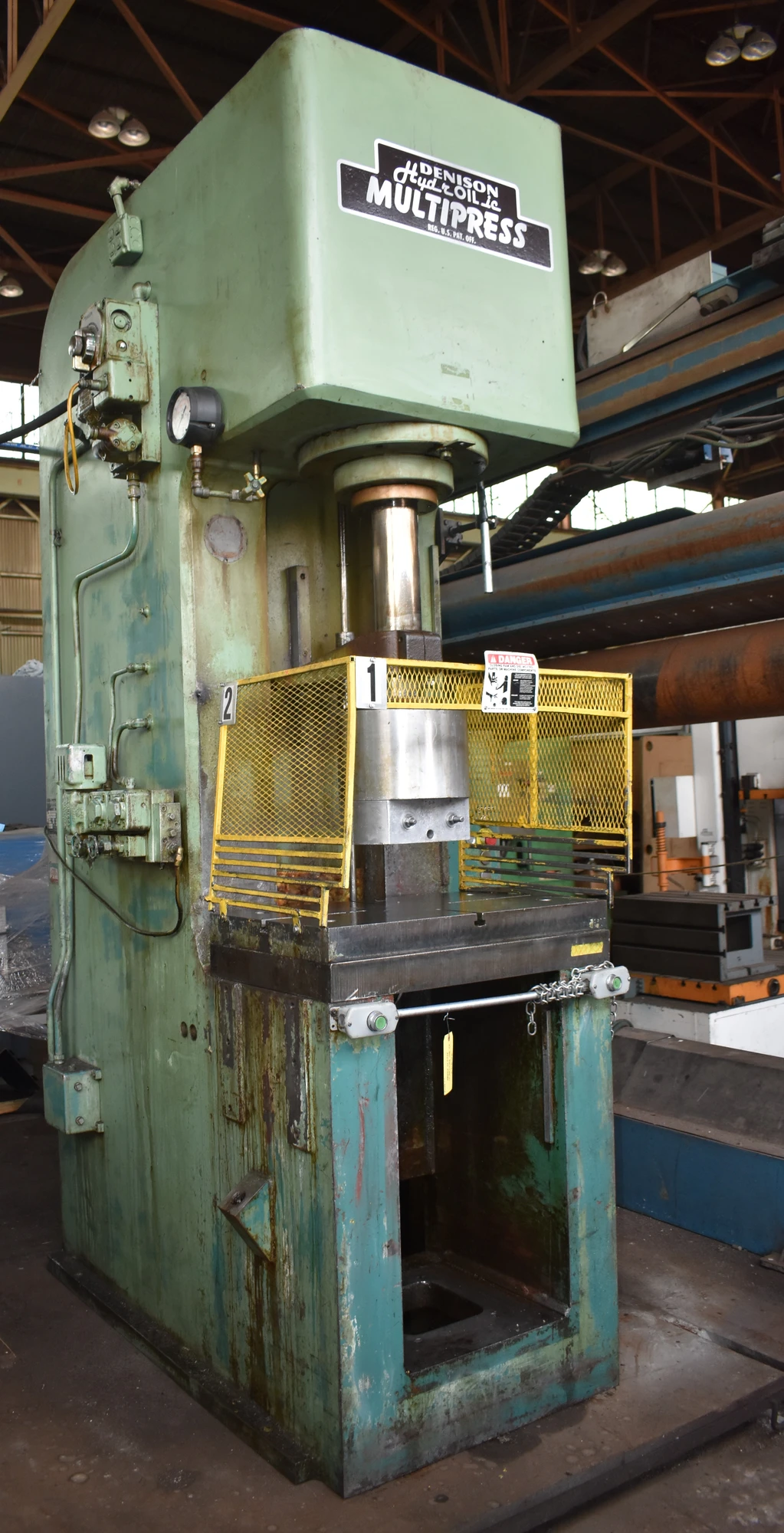

50 TON DENISON "MULTIPRESS" EXTRA-HIGH GAP-FRAME
HYDRAULIC PRESS
Serial No 18348, Model NA50C95DO2A129KO SPECIAL
Shop Order 92190A
| Tonnage | 50 T | 45.359 t |
| Stroke | 15" | 381 mm |
| Daylight | 36" | 914.4 mm |
| Power | 30 hp | 22.4 kW |
| Bed W | 32" | 812.8 mm |
| Bed L | 19.5" | 495.3 mm |
| IPM | 290 | 290 |
| Dimensions | 2'11" x 4'8" | 2'11" x 4'8" |
| Weight | 10000 | 10000 |
50 TON DENISON "MULTIPRESS" EXTRA-HIGH GAP-FRAME
HYDRAULIC PRESS
Serial No 18348, Model NA50C95DO2A129KO SPECIAL
Shop Order 92190A
EQUIPPED WITH:
36" Daylight
31" x 19.75" T-Slotted Bolster Plate
C95 Automatic Cycling Control Valve - PF07Q-020-51W Hydraulic Pump
CATALOG SPECIFICATIONS:
Tonnage Capacity 50 TON
Stroke Length 15"
Daylight, Maximum 36"
Main Cylinder Diameter 6"
Ram Diameter 4.25"
Bed Area, L-R x F-B 32" x 19.5"
Throat Depth 12"
Ram Speed, Rapid Approach 290 IPM
Ram Speed, Pressing 145 IPM
Ram Speed, Rapid Return 290 IPM
Hydraulic System Pressure, Maximum 3950 PSI
Hydraulic Motor, Horsepower/RPM 30 HP
Overall Dimensions, W x D 2'11" x 4'8"
Overall Height 106"
Weight, Approximately 10000 LBS
F.O.B. OUR WAREHOUSE
