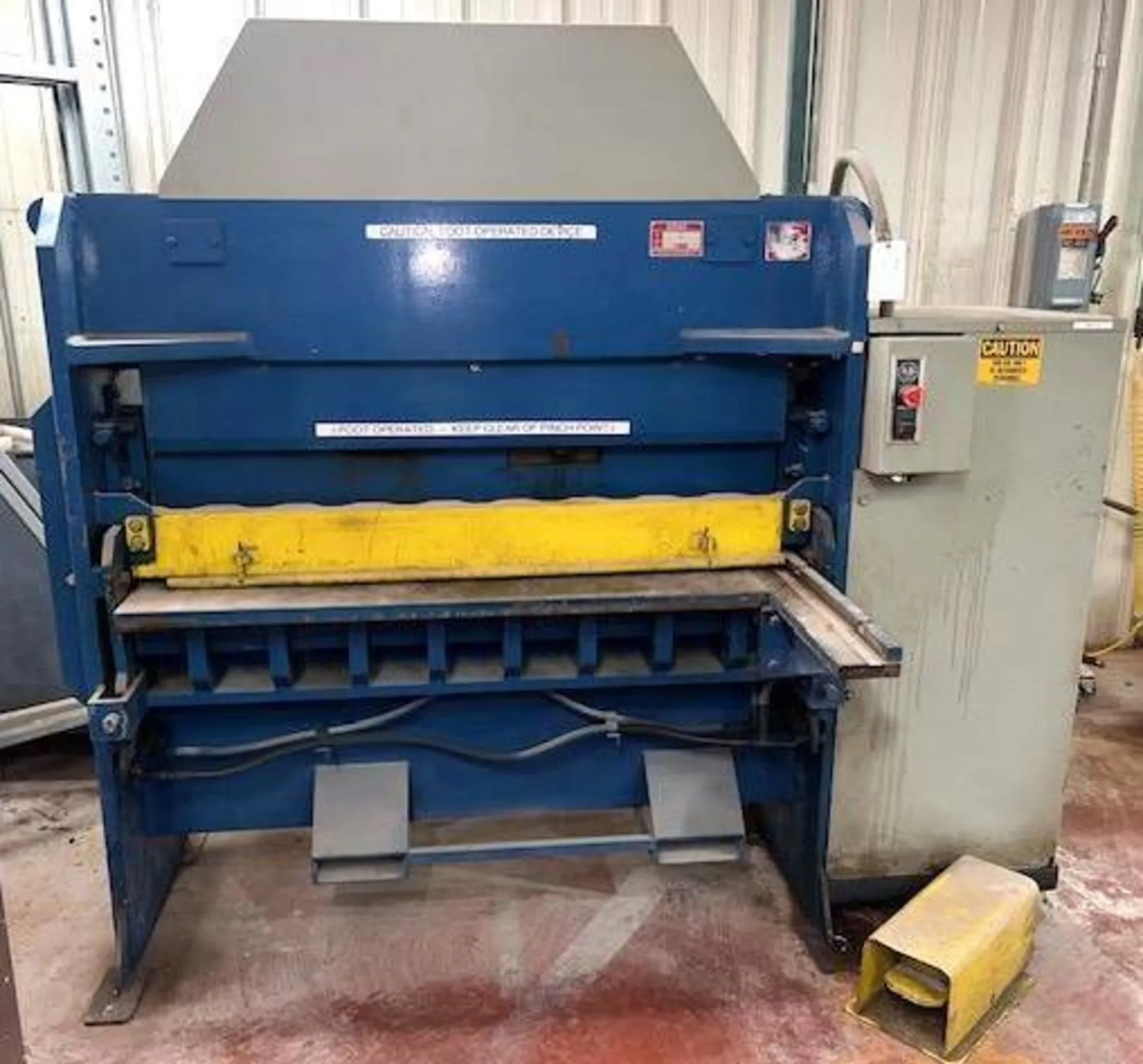

51" X 1/4" UNI-HYDRO HYDRAULIC POWER SQUARING SHEAR
Serial No 3P24133, Model 1/4x51
| Max Gauge | 14 gauge | 14 gauge |
| Length of Blade | 51" | 1,295.4 mm |
| Hyd/Mech | 'Hyd' | 'Hyd' |
| Power | 7.5 hp | 5.6 kW |
| SPM | 16 strokes/min. | 16 strokes/min. |
| Weight | 4480 | 4480 |
51" X 1/4" UNI-HYDRO HYDRAULIC POWER SQUARING SHEAR
Serial No 3P24133, Model 1/4x51
EQUIPPED WITH:
24" Squaring Arm
Independent Hydraulic Hold Down
(2) Extra 4-Sided Blades
Remote Hydraulic Low Pressure Foot Pedal Control
CATALOG SPECIFICATIONS:
Cutting Capacity, Rated 51" x 1/4"
Strokes Per Minute, 51" Cut 16 SPM
Blade Dimensions 51" x 4" x 3/4"
Blade Rake Over 51" 1-1/4"
Deck Height 32"
Motor Horsepower 7.5 HP
Hydraulic Pump Rating 1800 PSI
Hydraulic Oil Capacity 10 GALLONS
Floor Space Required, L x W 80" x 26"
Overall Height 72"
Weight Approximately 4480 LBS
NOTE: This Shear Is Equipped With Center Mounted Cylinder With
Pivot Arms In Order To Transfer Energy To Pressure Points In Order
Have Even Distribution Of Energy Across Blades To Avoid Flexing.
Replacement Price Is $39,300.00.
F.O.B. OUR WAREHOUSE
