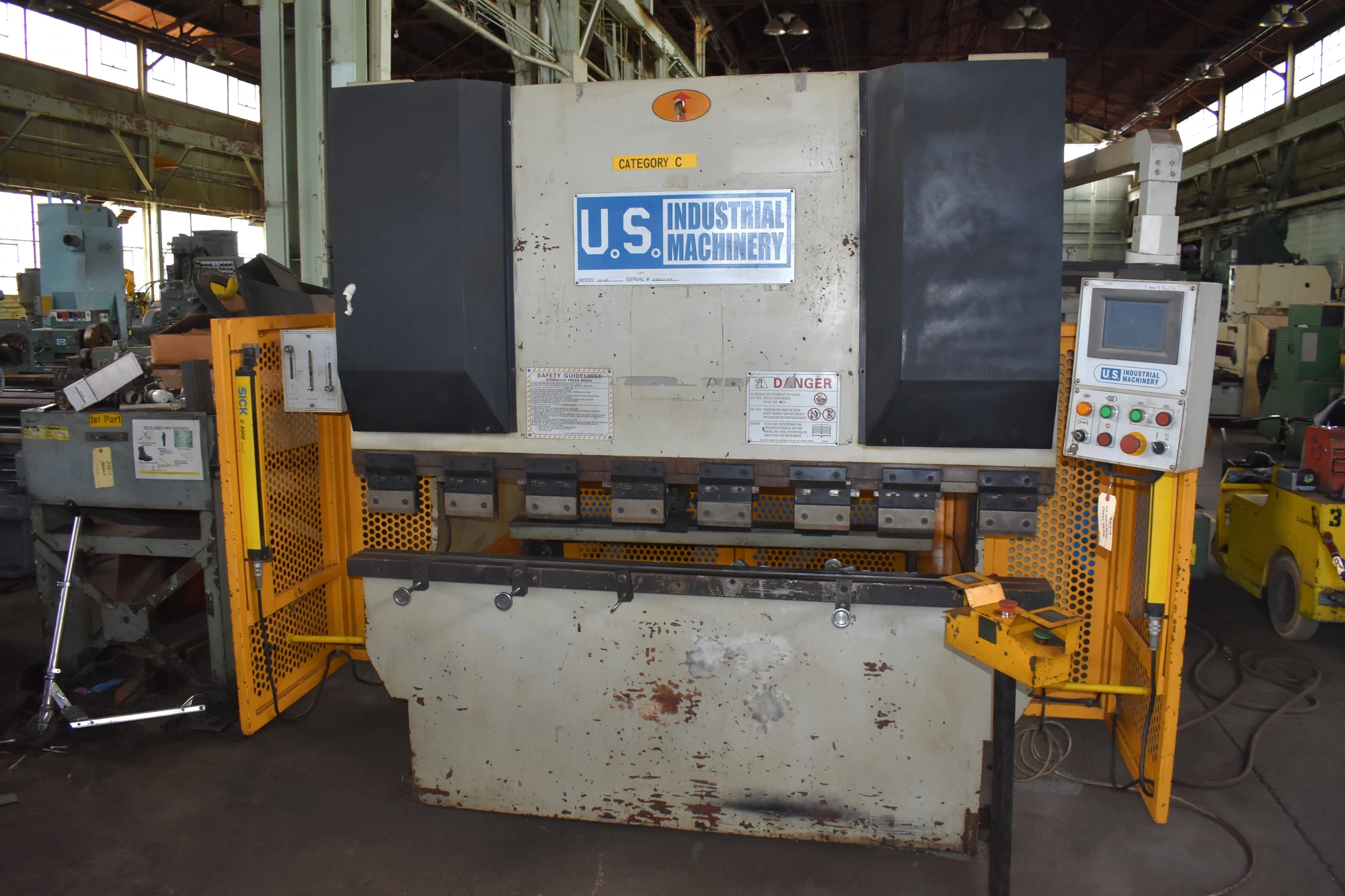

6'6" U.S. INDUSTRIAL MACHINERY 44-TON CNC HYDRAULIC
PRESS BRAKE
Serial No W2004-138, Model US446
| Tonnage | 44 T | 39.916 t |
| Type | HYD | HYD |
| Overall Length | 6.55' | 2 m |
| Between Housings | 5.31' | 1.6 m |
| Stroke | 3.93" | 99.822 mm |
| Dimensions | 101'' x 60'' | 101'' x 60'' |
| Weight | 7700 LBS | 7700 LBS |
6'6" U.S. INDUSTRIAL MACHINERY 44-TON CNC HYDRAULIC
PRESS BRAKE
Serial No W2004-138, Model US446
EQUIPPED WITH:
US Industrial 2-Axis CNC Back Gauge
Ram Deflection Adjustment
Mechanical Ram Depth Control
Massive Torsion Bar or Parallelism
Sick Model C4000 Light Curtain System
CATALOG SPECIFICATIONS:
Tonnage Capacity 44 TONS
Overall Bending Length 78.7"
Distance Between Housings 63.7"
Open Height 12.5"
Stroke Of Ram 3.93"
Stroke Adjustment of Ram 1.96"
Throat Depth 7.8"
Approach Speed, Rated 2.4 IPS
Return Speed, Rated 2.0 IPS
Motor Horsepower 7.5 HP
Overall Dimensions, L x W 101" x 60"
Overall Height 80"
Weight, Approximately 7,700 LBS
F.O.B. OUR WAREHOUSE
