TL-25B HAAS "BIG-BORE" DUAL-SPINDLE CNC TURNING CENTER w/SUB-SPINDLE & LIVE TOOLING - Collet Chuck -(2) 3-Jaw Chucks - 4" Big Bore Drive System - 40 HP Vector Drive - Tool Presetter - 30" Swing - 39" Center Distance
| Swing | 30" | 762 mm |
| Machining Length | 34" | 863.6 mm |
| # Axis | 2 | 2 |
| Chuck Size | 15" | 381 mm |
| Bar Capacity | 4" | 101.6 mm |
| Power | 40 hp | 29.8 kW |
| Max RPM | 2,400 RPM | 2,400 RPM |
| Turning Dia | 16" | 406.4 mm |
| Tailstock | '' | '' |
| Live Tooling | 'Yes' | 'Yes' |
| Sub Spindle | 'Yes' | 'Yes' |
| Weight | 17000 | 17000 |

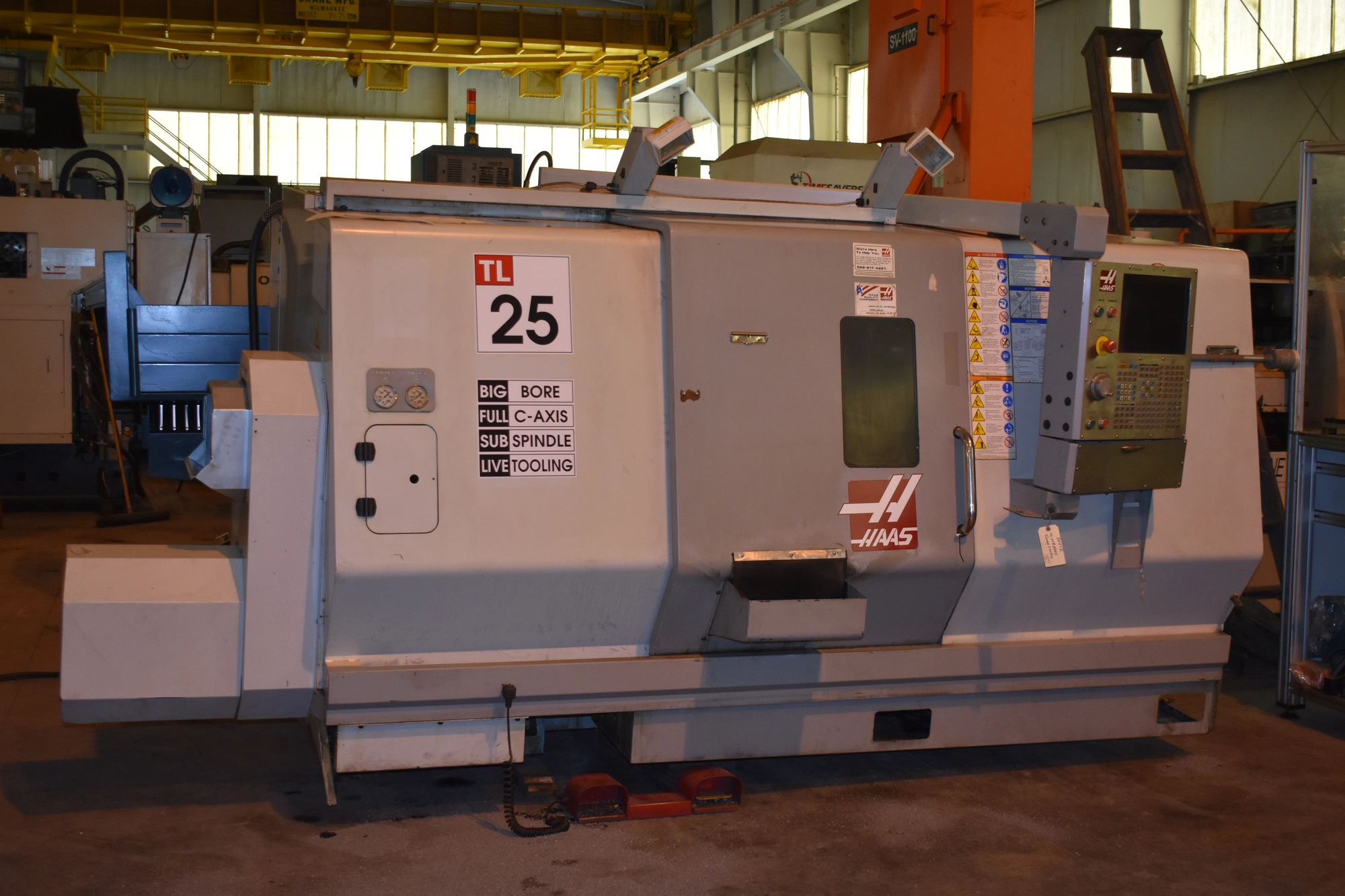

TL-25B HAAS "BIG-BORE" DUAL-SPINDLE CNC TURNING CENTER
w/SUB-SPINDLE & LIVE TOOLING
New 2007, Serial NO. 3079346, Model TL-25B
EQUIPPED WITH:
Haas CNC Control
Sub-Spindle - Live Tooling
4" Big Bore Drive System
Collet Chuck - Parts Catcher
(2) 3 Jaw Chucks (1) 15" Main Spindle & (1) 5.25" Sub-Spindle
40 HP Vector Drive - Tool Presetter- 12-Position Turret
Coolant System & Chip Conveyor
CATALOG SPECIFICATIONS:
Spindle Bar Capacity, Maximum 4"
Sub-Spindle Bar Capacity, Maximum 1.18"
Swing Over Apron, Maximum 30"
Swing Over Cross Slide 14.5"
Distance Between Centers 39"
Maximum Cutting Diameter 16"
Cutting Length, Maximum 34"
X-Axis Cross Slide Travel 11.3"
Z-Axis Carriage Travel 34"
Rapid Traverse 710 IPM
Spindle Speeds, Range to 2400 RPM
Live Tooling Spindle Speeds, Range 0 to 3000 RPM
Sub-Spindle Speeds, Range 0 to 4000 RPM
Spindle Motor, Horsepower 40 HP
Live Tooling Motor, Horsepower 5 HP
Sub-Spindle Motor, Horsepower 8 HP
Weight Approximately 17000 LBS
F.O.B. OUR WAREHOUSE
