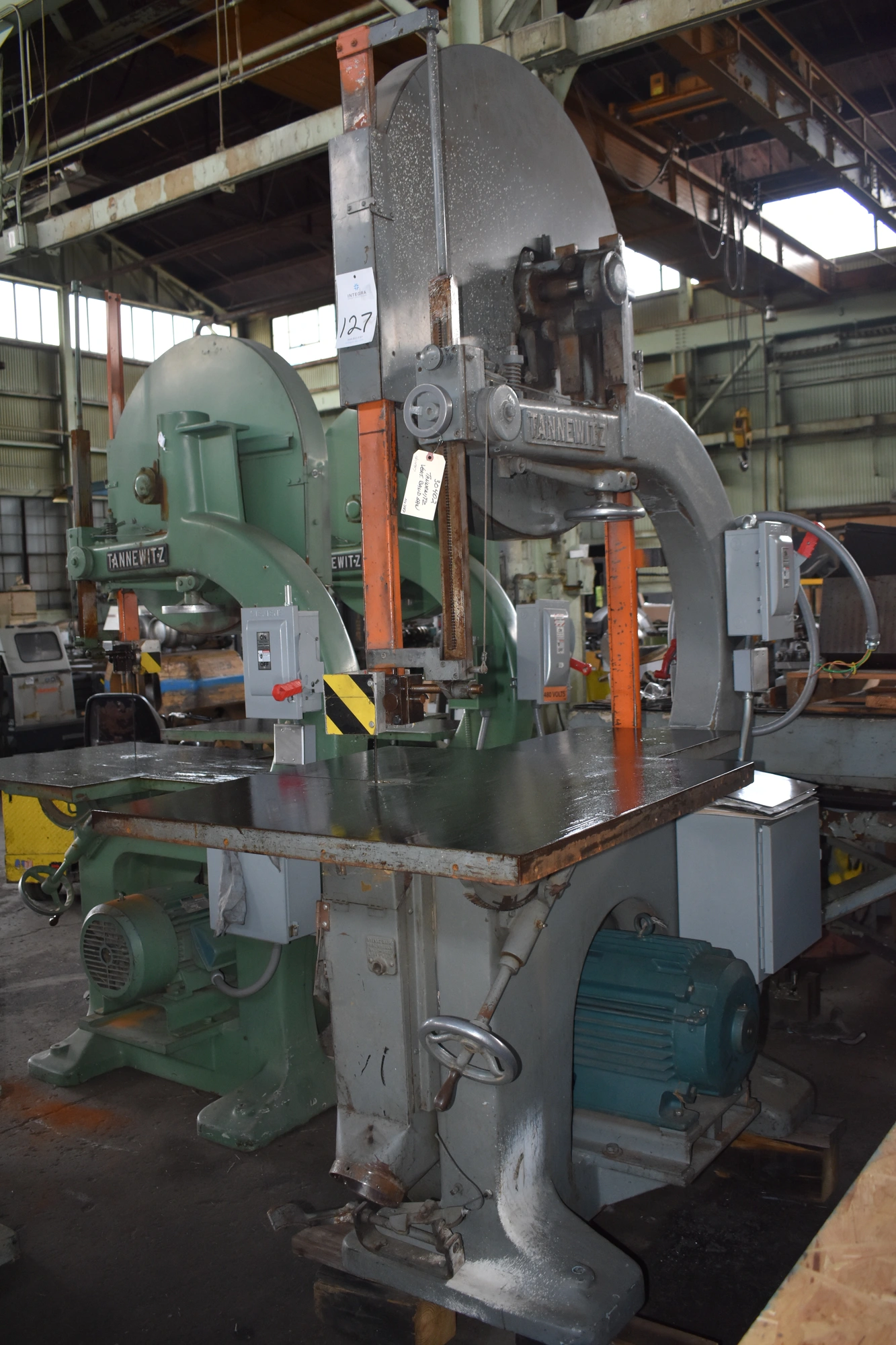

41.5" x 21" TANNEWITZ "RH" VERTICAL BAND SAW
Serial No 14947, Model RH,
| Throat | 41.5" | 1,054.1 mm |
| Work Height | 21" | 533.4 mm |
| Power | 7.5 hp | 5.6 kW |
| Blade Width | 2" | 50.8 mm |
| Blade Length | 264" | 6,705.6 mm |
| FPM | 7600 | 7600 |
| Dimensions | 37 x 73 | 37 x 73 |
| Weight | 3150 | 3150 |
41.5" x 21" TANNEWITZ "RH" VERTICAL BAND SAW
Serial No 14947, Model RH,
EQUIPPED WITH:
Direct Motor Drive
Tilting Main Table & Auxiliary Table
CATALOG SPECIFICATIONS:
Work Capacity, Nominal 41.5" x 21"
Throat Depth, Rated 41.5"
Auxiliary Table Dimensions, W x L 16" x 19"
Main Table Dimensions, W x L 37" x 36"
Table Tilt, Left 5-DEGREES
Table Tilt, Right 45-DEGREES
Table Height 41"
Blade Speed 7600 FPM
Blade Length 22'
Blade Width, Range .125" to 2"
Blade Wheel Diameter 42"
Upper Blade Wheel Adjustment 7"
Motor Horsepower 7.5 HP
Floor Space Required, W x D 37" x 73"
Overall Height 108"
Weight, Approximately 3150 LBS
F.O.B. OUR WAREHOUSE
