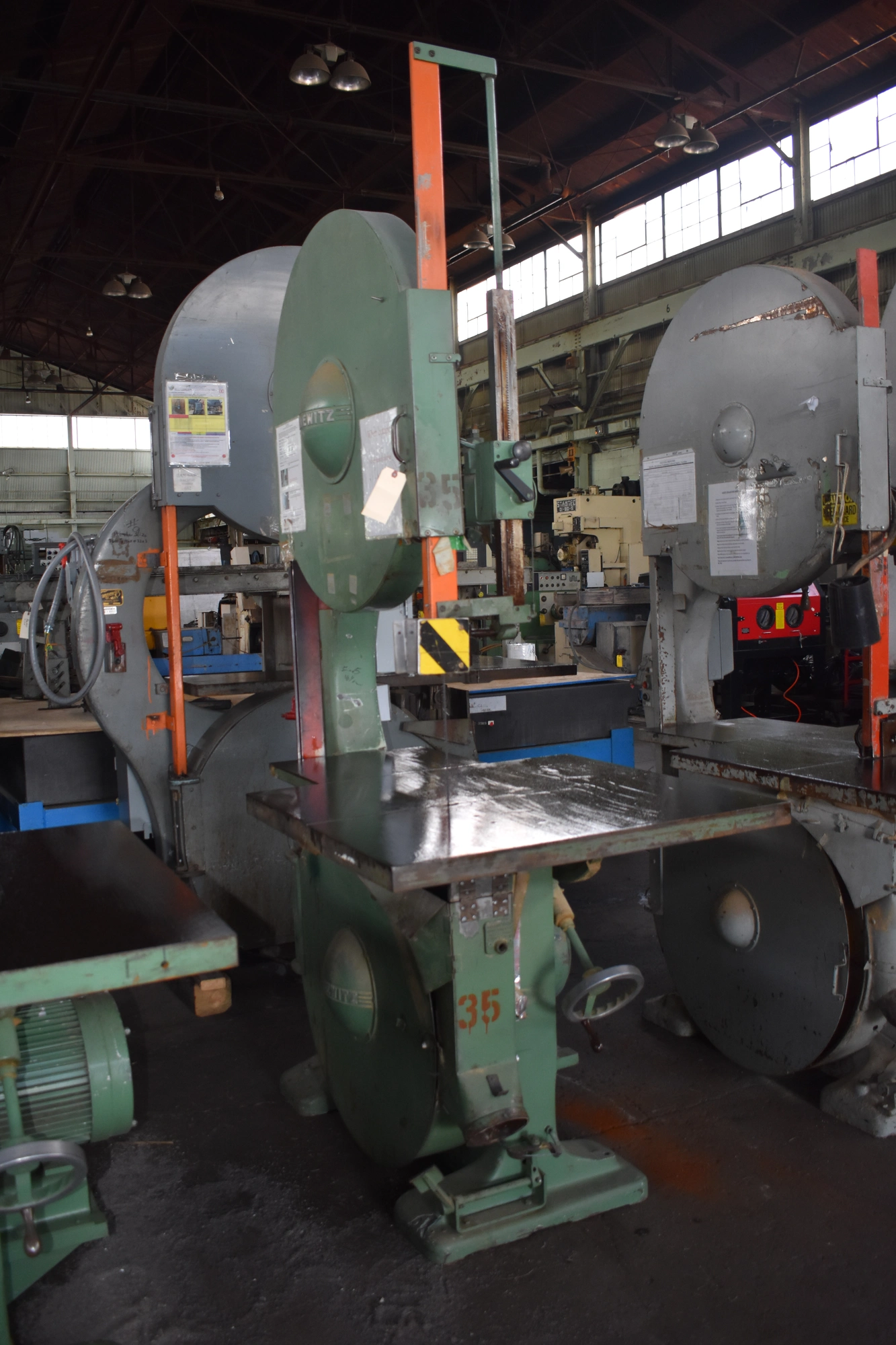

35.5" x 20" TANNEWITZ "GH" VERTICAL BAND SAW
Serial No 72091, Model GH,
| Throat | 35.5" | 901.7 mm |
| Work Height | 20" | 508 mm |
| Power | 5 hp | 3.7 kW |
| Blade Width | 2" | 50.8 mm |
| Blade Length | 237" | 6,019.8 mm |
| FPM | 8000 | 8000 |
| Dimensions | 104 x 37 x 65 | 104 x 37 x 65 |
| Weight | 2900 | 2900 |
35.5" x 20" TANNEWITZ "GH" VERTICAL BAND SAW
Serial No 72091, Model GH,
EQUIPPED WITH:
Direct Motor Drive
Tilting Main Table & Auxiliary Table
CATALOG SPECIFICATIONS:
Work Capacity, Nominal 35.5" x 20"
Throat Depth, Rated 35.5"
Auxilliary Table Dimensions, W x L 16" x 19"
Main Table Dimensions, W x L 37" x 36"
Table Tilt, Left 5-DEGREES
Table Tilt, Right 45-DEGREES
Table Height 41"
Blade Speed 8000 FPM
Blade Length 19'9"
Blade Width, Range .125" to 2"
Blade Wheel Diameter 36"
Upper Blade Wheel Adjustment 7"
Motor Horsepower 5 HP
Floor Space Required, W x D 37" x 65"
Overall Height 104"
Weight, Approximately 2900 LBS
F.O.B. OUR WAREHOUSE
