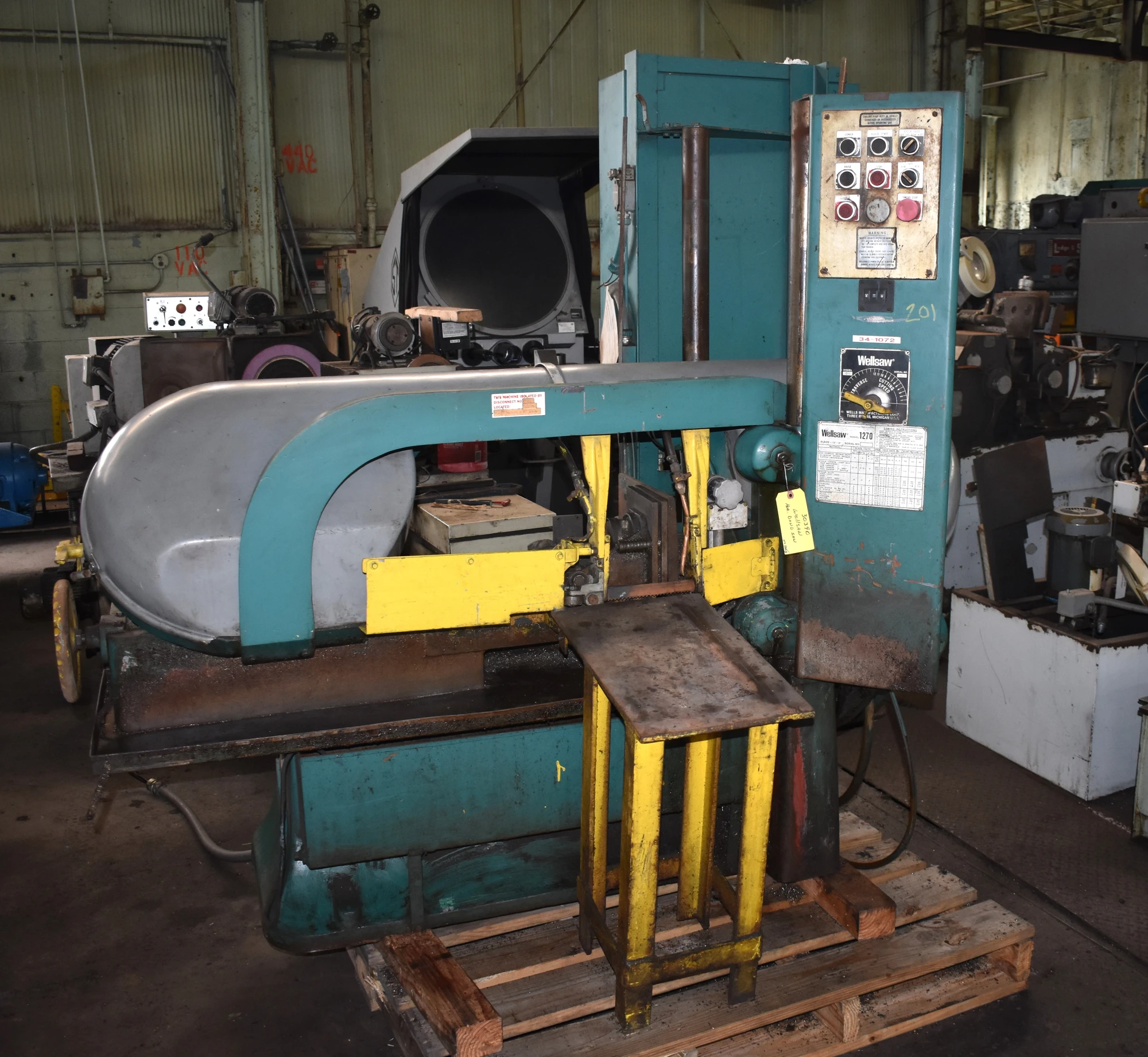

12" x 16" WELLSAW PRODUCTION HORIZONTAL BAND SAW
Serial No 1919, Model 1270
| Rect-Cap (H) | 11" | 279.4 mm |
| Rect-Cap (W) | 18" | 457.2 mm |
| Rounds-Cap | 12.75" | 323.85 mm |
| Square-Cap | 7.5" | 190.5 mm |
| Power | 2 hp | 1.5 kW |
| Type (Auto, Manual, Semi) | Manual | Manual |
| Blade Width | 1" | 25.4 mm |
| Blade Thickness | 0.035" | 0.889 mm |
| Blade Length | 162" | 4,114.8 mm |
| Dimensions | 47 x 78 x 63 | 47 x 78 x 63 |
| Weight | 2100 LBS | 2100 LBS |
12" x 16" WELLSAW PRODUCTION HORIZONTAL BAND SAW
Serial No 1919, Model 1270
EQUIPPED WITH:
45-Degree Swivel Vise
Push Button Operation
Hydraulic Band Saw Up-Feed and Down-Feed
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Round Stock Capacity, Maximum 12.75"
Flat Stock Capacity, Maximum 12" x 16"
Flat Stock Capacity, Maximum 11" x 18"
Flat Stock Capacity, 45-Degree 7.5" x 7.5"
Band Length 13'6"
Band Width 1"
Band Thickness .035"
Band Speeds, Range 60 to 300 FPM
Motor, Horsepower 1.5 HP
Hydraulic Motor, Horsepower 1/2 HP
Overall Dimensions, W x L 47" x 78"
Overall Height 63"
Weight, Approximately 2100 LBS
F.O.B. OUR WAREHOUSE
