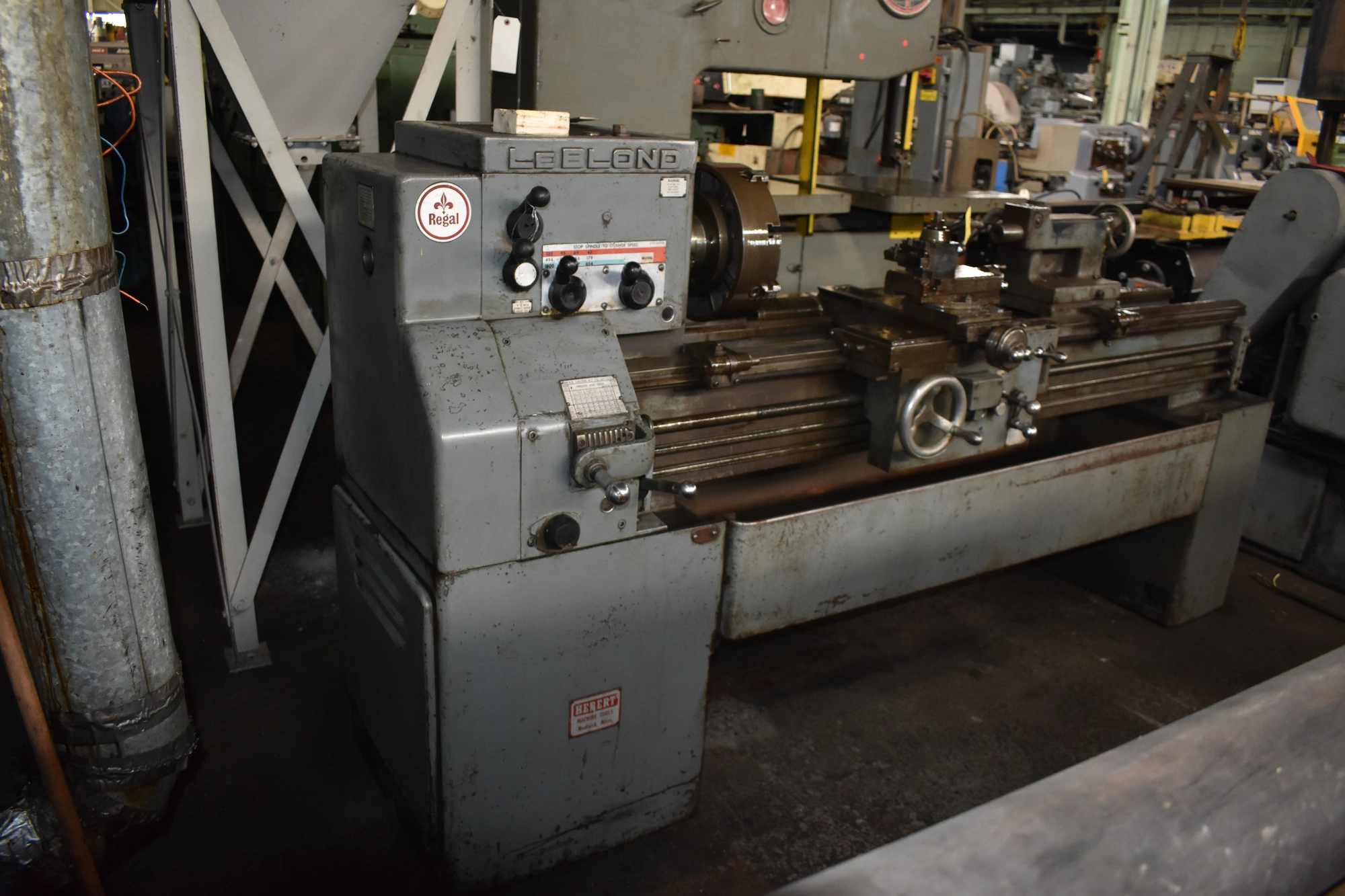

15" x 54" LEBLOND "REGAL" ENGINE LATHE
Serial No 6C-426, Model "REGAL"
| Swing | 15.5" | 393.7 mm |
| Centers | 54" | 1,371.6 mm |
| Spindle Bore | 1.57" | 39.878 mm |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 9.5" | 241.3 mm |
| Weight | 3100 | 3100 |
15" x 54" LEBLOND "REGAL" ENGINE LATHE
Serial No 6C-426, Model "REGAL"
EQUIPPED WITH:
Chuck w/Jaws - Tool Post
Replaceable Hardened & Ground Bedways
Threading Dial - Turret Depth Stop
Full Length Coolant-Chip Pan
CATALOG SPECIFICATIONS:
Hole Thru Spindle 1.57"
Swing Over Bed Ways, Rated 15"
Swing Over Bed Ways, Actual 15.5"
Swing Over Cross-Slide 9.5"
Distance Between Centers 54"
Cross-Slide Cross-Feed Travel 8.875"
Compound-Rest Travel 3.875"
Tailstock, Spindle Diameter 1.94"
Tailstock, Spindle Travel 5"
Tailstock, Spindle Taper #3 MT
(12) Spindle Speeds, Range 45 to 1800 RPM
(48) Carriage Longitudinal Feeds .0018 to .104 IPR
(48) Thread Changes, Range 2 to 224 TPI
Weight, Approximately 3100 LBS
F.O.B. OUR WAREHOUSE
