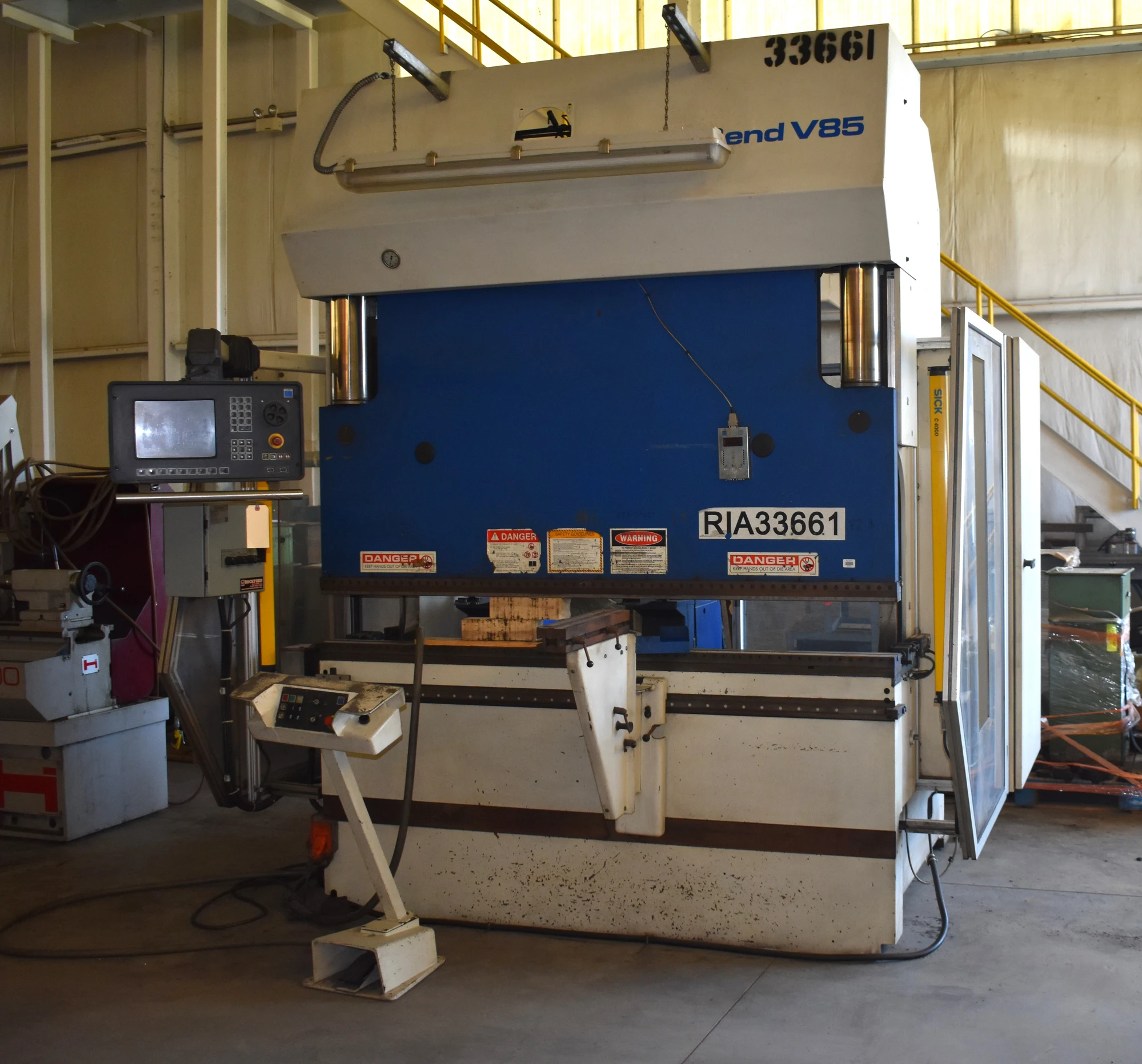

USED 2001 TRUMPF V85X

93.67 TON TRUMPF "TRUMABEND V85X" EXTENDED-HEIGHT

6-AXIS CNC HYDRAULIC PRESS BRAKE

Serial No 882222, Production No F1012F, Model TrumaBend V85X

93.67 TON TRUMPF "TRUMABEND V85X" EXTENDED-HEIGHT
6-AXIS CNC HYDRAULIC PRESS BRAKE
Serial No 882222, Production No F1012F, Model TrumaBend V85X

EQUIPPED WITH:
Delem Control w/6-Axis CNC Backgauge
CNC Programmable Crowning
Hydraulic Quick Clamp On Both Upper & Bottom Tool Holders
Adjustable Front Support
Large Quantity Of Dies
Sick "C4000" Light Curtains

CATALOG SPECIFICATIONS:
Tonnage Capacity .......... 93.67 Tons
Maximum Bending Length .......... 80"
Distance Between Housings .......... 70"
Stroke Length (Y-Axis) .......... 14.37"
Open Height .......... 21"
Throat Depth .......... 16.5"
Bed Width .......... 4.7"
Travel In X-Axis (Back Gauge In/Out) .......... 23.6"
Travel In R-Axis (Back Gauge Up/Down) .......... 9.8"
Travel Speed In X1, Maximum .......... 2358 IPM
Travel Speed In R1, Maximum .......... 780 IPM
Travel Speed In Z1, Maximum .......... 2358 IPM
Rapid Speed, Y-Axis .......... 520 IPM
Press Speed, Y-Axis .......... .24 to 24 IPM
Return Speed, Y-Axis .......... 522 IPM
Drive Motor .......... 15 H.P.
Approximate Weight .......... 19910 LBS

NOTE: Machine Appears To Be In Very Good Condition As Taken
From Government Storage.
F.O.B. OUR WAREHOUSE
