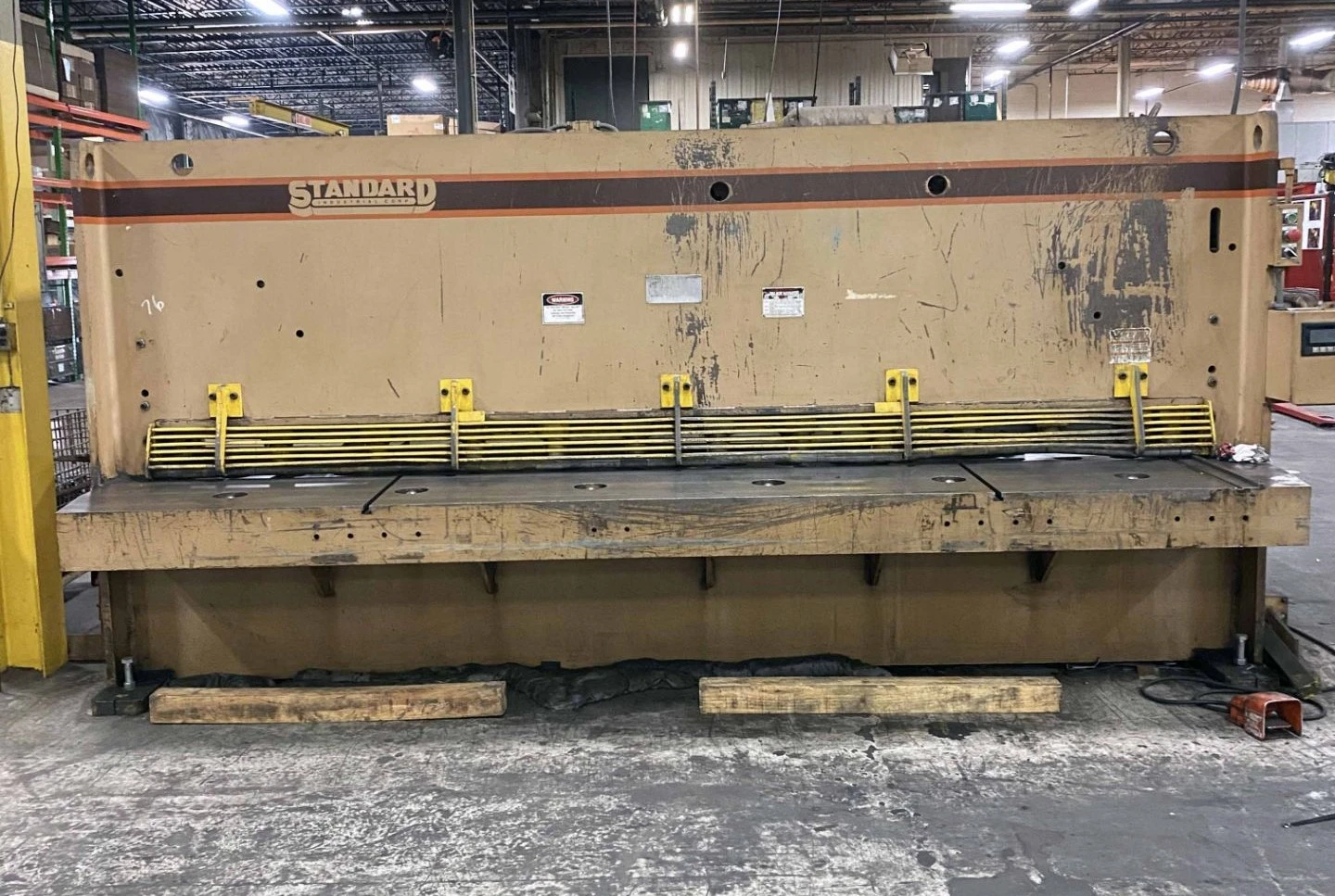

12' x 1/4" STANDARD-INDUSTRIAL HYDRAULIC
POWER SQUARING SHEAR
Serial No F10011096, Model AS250-12
| Max Gauge | 0 gauge | 0 gauge |
| Length of Blade | 144" | 3,657.6 mm |
| Hyd/Mech | Hyd | Hyd |
| Back Gauge | 36" | 914.4 mm |
| Power | 20 hp | 14.9 kW |
| SPM | 15 strokes/min. | 15 strokes/min. |
| Dimensions | 174 x 87 x 86 | 174 x 87 x 86 |
| Weight | 25000 | 25000 |
12' x 1/4" STANDARD-INDUSTRIAL HYDRAULIC
POWER SQUARING SHEAR
Serial No F10011096, Model AS250-12
EQUIPPED WITH:
36" Front Operated Power Back Gauge
Adjustable Stroke Length
Ball Rollers In Table
Hydraulic Hold-Downs
No Pit Required
CATALOG SPECIFICATIONS:
Shearing Capacity, Maximum 12' x 1/4"
Shearing Tons Available 36 TON
Number of Hydraulic Hold-Downs 13
Total Hold-Down Pressure 36 TON
Blade Size 1" x 3" x 148"
Strokes Per Minute, Full-Width 15 SPM
Strokes Per Minute, 12"-Wide 40 SPM
Ram Speed Down 110 IPM
Ram Speed Up 173 IPM
Motor, Horsepower 20 HP
Overall Dimensions, L x W 174" x 87"
Overall Height 86"
Weight, Approximately 25000 LBS
F.O.B. OUR WAREHOUSE
