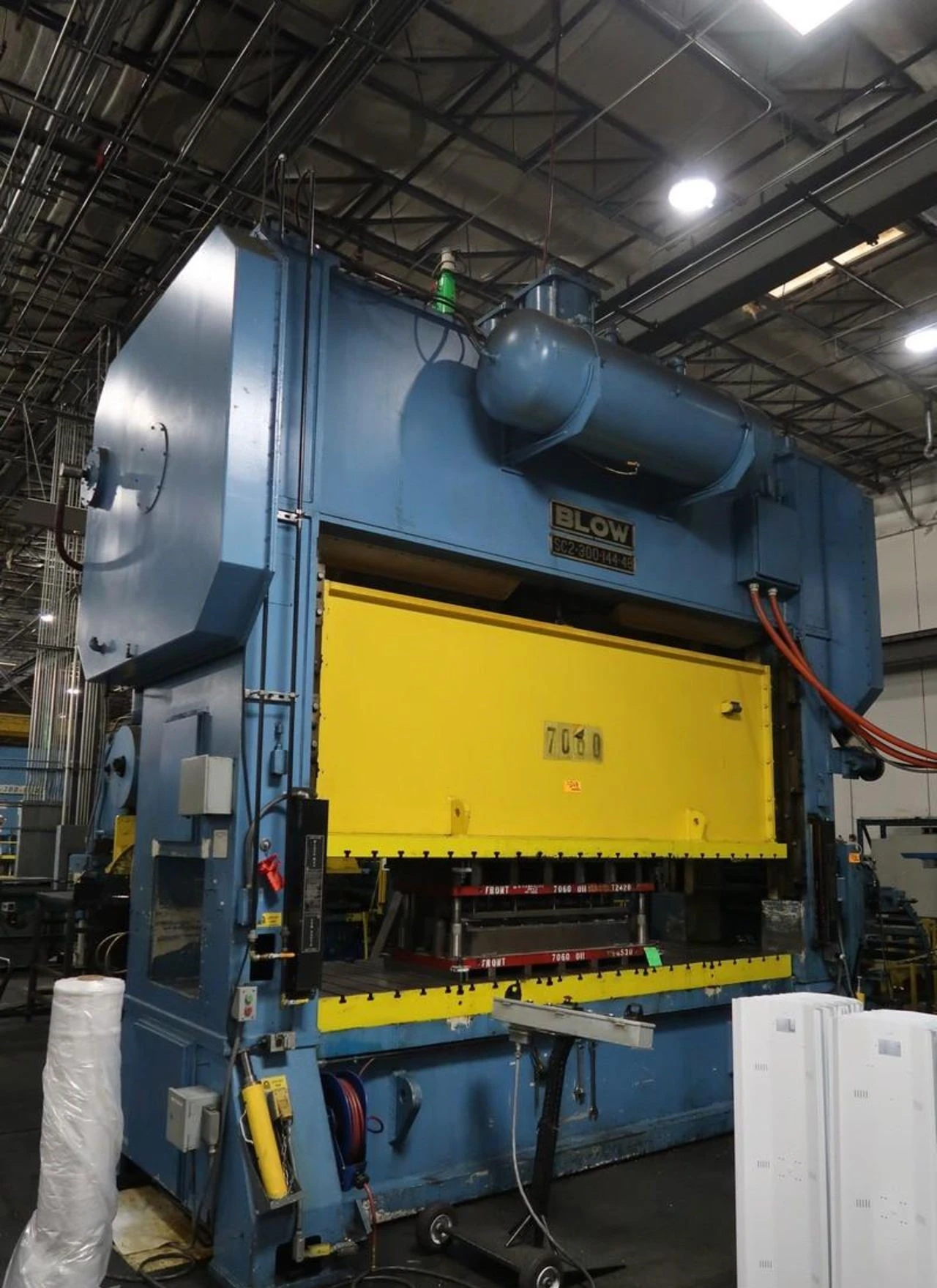

300 TON BLOW “SC2-300-144-48” HEAVY-DUTY STRAIGHT-SIDE TWO POINT VARIABLE SPEED PRESS - 144” x 48” Bed & Ram - 6” Stroke - Floor Standing Design
| Tonnage | 300 T | 272.156 t |
| Stroke | 6" | 152.4 mm |
| Shut Height | 26" | 660.4 mm |
| SPM | 50 strokes/min. | 50 strokes/min. |
| Vari Speed (Yes/No) | Yes | Yes |
| Bed W | 48" | 1,219.2 mm |
| Bed L | 144" | 3,657.6 mm |
| Crank (Single/Double) | 'Double' | 'Double' |
| Air Clutch (Yes/No) | Yes | Yes |
| Dimensions | 203.5 x 112.5 | 203.5 x 112.5 |
| Weight | 140000 | 140000 |
300 TON BLOW HEAVY-DUTY STRAIGHT-SIDE
TWO POINT VARIABLE SPEED PRESS
New 1995, Serial No SDG-300-348-95, Model SC2-300-144-48
EQUIPPED WITH:
OmniLink LCD Operator Control Terminal
Air Clutch & Brake - Air Counterbalance
Variable Speed Drive - Tie Rod Construction
Power Ram Adjustment
T-Slotted Slide & Bolster
Operators Control Stand
Floor Standing Design
CATALOG SPECIFICATIONS:
Tonnage Capacity 300 TON
Stroke Length 6"
Shut Height Over Bolster (SDAU) 26"
Slide Adjustment, (Power) 10"
Slide Area, L-R x F-B 144" x 48"
Bed Area, L-R x F-B 144" x 48"
Bolster, L-R x F-B x THK 144" x 48" x 6"
Distance Between Uprights 145"
Strokes Per Minute, Variable 25 to 50 SPM
Main Motor Horsepower/RPM 50 HP/1800 RPM
Slide Motor Horsepower/RPM 7.5 HP/1800 RPM
Dimensions W x D 203-1/2" x 112-1/2"
Height 217-3/4"
Weight Approximately 140000 LBS
F.O.B. OUR WAREHOUSE
