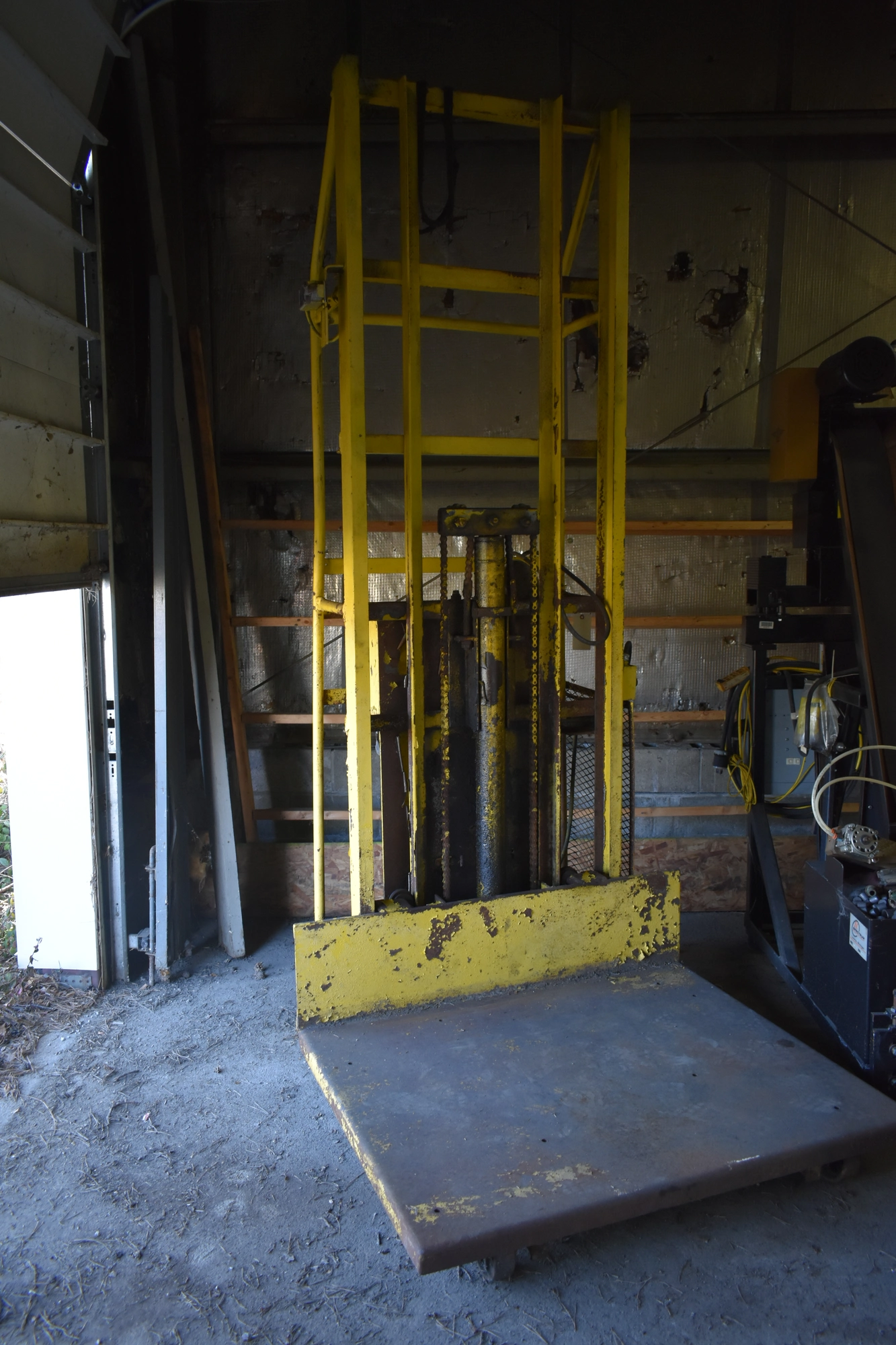

4000 LB (APPROXIMATELY) x 90" H PORTABLE HYDRAULIC DIE LIFTER w/48" X 39" PLATFORM

4000 LB (APPROXIMATELY) 90" H PORTABLE HYDRAULIC DIE LIFTER

4000 LB (APPROXIMATELY) 90" H PORTABLE HYDRAULIC DIE LIFTER

EQUIPPED WITH:
Gerotor Hydraulic Pump (QDH 8W, 4141)
1-1/2 HP Dayton Motor
115 Volt Electrics
(4) Steel Casters

CATALOG SPECIFICATIONS:
Weight Capacity, Approximately 4000 LBS (APPROXIMATELY)
Lift Height, Maximum 90"
Platform Dimensions, L-R x F-B 49" x 39"
Motor Horsepower/RPM 1-1/2 HP/1740 RPM
Overall Dimensions, L-R x F-B 50" x 62"
Overall Height 111"
Electrical System 115/1/60

NOTE: Our Mechanics Calculated The Approximate Weight Capacity
Using A Hydraulic Calculator. We Are Unable To Find A Manufactures
Name Or Serial No On This Machine.
F.O.B. OUR WAREHOUSE
