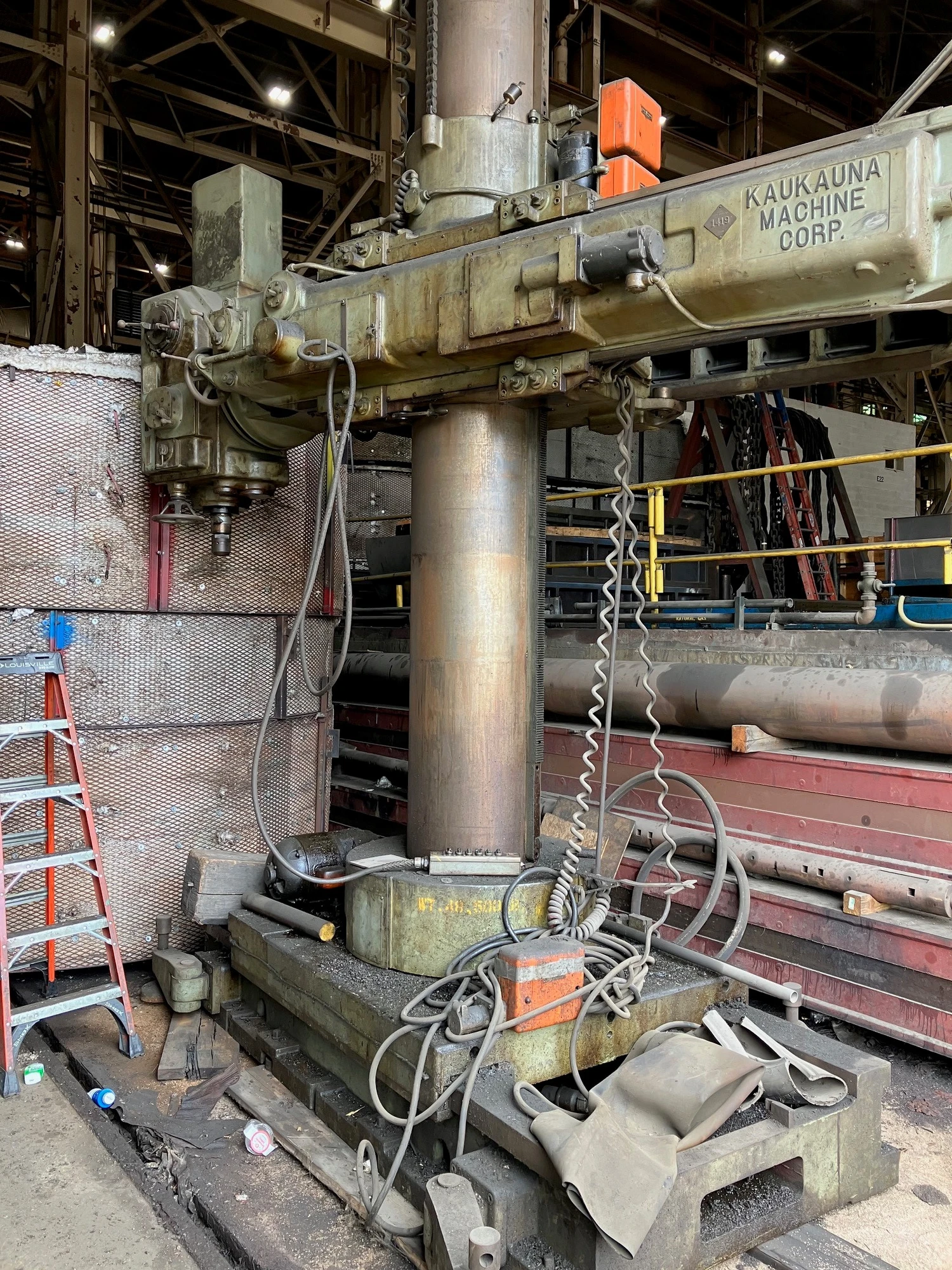

USED GIDDINGS & LEWIS/KAUKAUNA 140U
Overview
Description
140U KAUKAUNA PORTABLE UNIVERSAL DRILL & TAPPING MACHINE
Serial No 170, Model 140U,
Specifications
| Arm Length | 8' | 2.4 m |
|---|---|---|
| Column Dia. | 22" | 558.8 mm |
| Power | 10 hp | 7.5 kW |
| RPM | 1,800 RPM | 1,800 RPM |
| Weight | 48500 | 48500 |
140U KAUKAUNA PORTABLE UNIVERSAL DRILL & TAPPING MACHINE
Serial No 170, Model 140U,
EQUIPPED WITH:
Lifting Bail On Column Cap And Hinged Spreader
Arms On Runway For Portable Use
High Speed Spindle
Pendant Control
CATALOG SPECIFICATIONS:
Arm Length 8'
Column Diameter 22"
Spindle Travel, Power 18"
Vertical Travel, Head on Column 60"
Horizontal Head Adjustment On Rails 36"
Horizontal Travel, Column on Runway 48"
Swivel Of Column On Base, Manual 360 DEGREES
Headstock Swivel, Power 360 DEGREES
Trunnion Swivel, Power 180 DEGREES
Spindle Diameter 4"
Spindle Taper #5MT
(9) Spindle Speeds, Range 45 to 800 RPM
(9) Spindle Feeds, Range .0035 to .062 IPR
Power Rapid Traverse, Rate 80 IPM
Spindle Motor, Horsepower/RPM 10 HP/1800 RPM
Rapid Travese Motor, Horsepower 5 HP
Electrical System 220-440/3/60
Weight, Approximately 48500 LBS
NOTE: The Combination of 360 Degree Head Swivel, 180
Degree Vertical Trunnion Swivel, 360 Degree Column
Swivel Provides An Angle For Any Position Of Machining.
F.O.B. OUR WAREHOUSE
