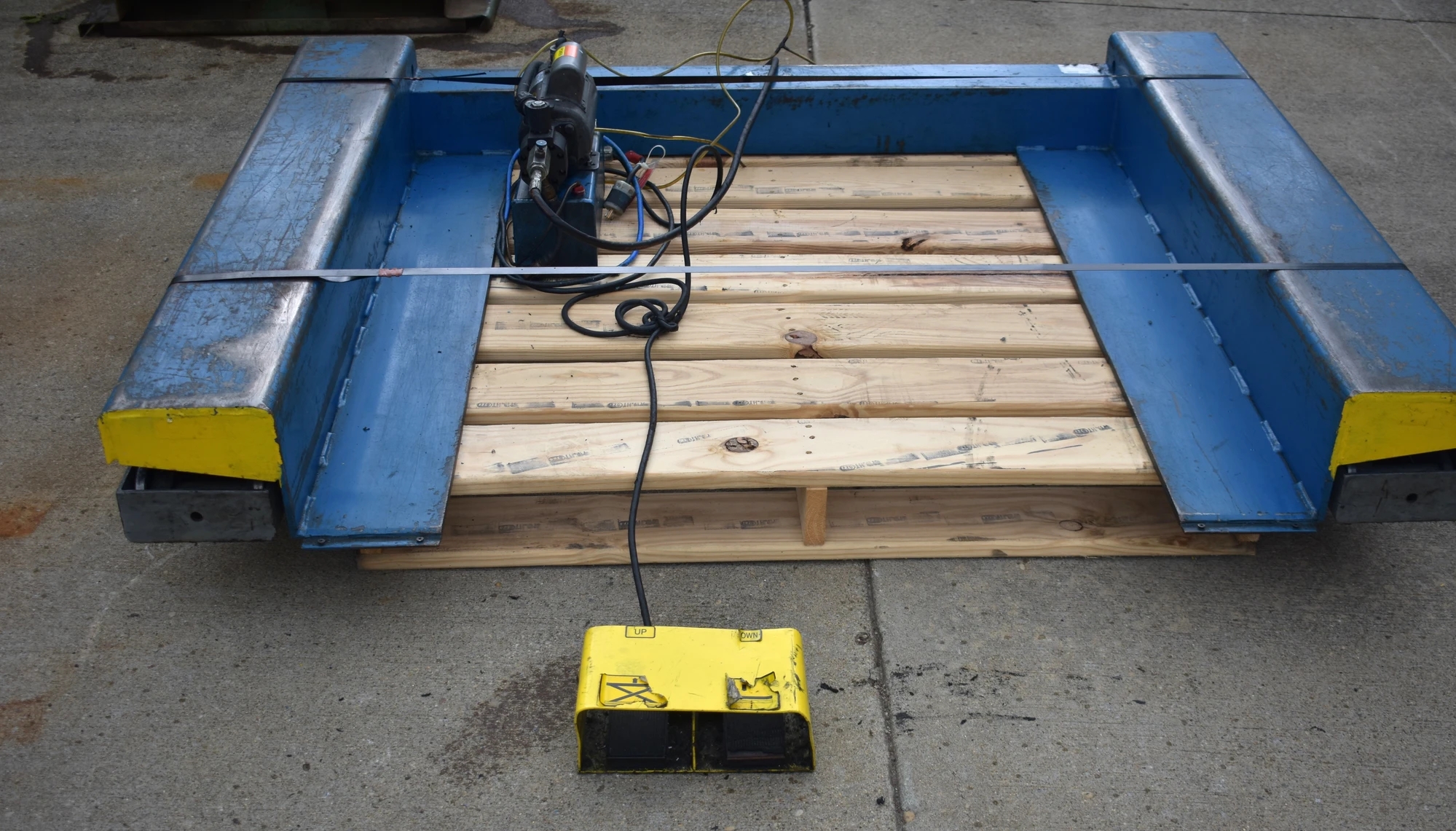

USED SOUTHWORTH LS2-35

2000 LB SOUTHWORTH FLOOR-LEVEL LOW-PROFILE HYDRAULIC

SCISSOR LIFT TABLE

Serial No 43431-01/M043431-100-01, Model LS2-35

2000 LB SOUTHWORTH FLOOR-LEVEL LOW-PROFILE HYDRAULIC
SCISSOR LIFT TABLE
Serial No 43431-01/M043431-100-01, Model LS2-35

EQUIPPED WITH:
Dual Foot Pedal Control

CATALOG SPECIFICATIONS:
Load Capacity, Rated 2000 LBS
Platform Size, L x W 48" x 50"
Vertical Travel 35"
Low Height, Minimum 0.375"
Raised Height, Maximum 35.375"
Rise Time 45 SECS
Overall Dimensions, L x W 59" x 75"
Overall Height 43.123"
Motor Horsepower 1 HP
Electrical System 115/1/60
Weight Approximately 1425 LBS

NOTE: These Tables Are Designed To Be Able To Lower The Platform To Nearly Floor
Height So They Can Be Fed And Offloaded With Hand Pallet Trucks. Replacement
Price Is Over $10,500.00.
F.O.B. OUR WAREHOUSE
