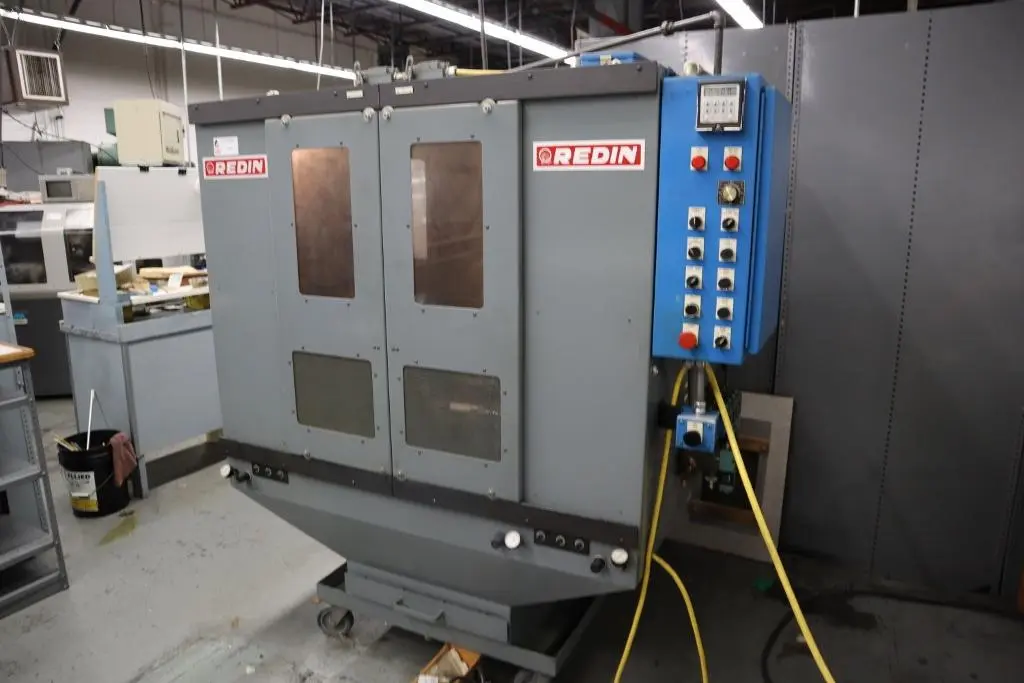

18GP REDIN "BURR-MATIC" UNIVERSAL GEAR DEBURRING MACHINE
Serial No 18GP167, Model 18GP, Series BURR-MATIC
| Max Diameter | 28" | 711.2 mm |
| Dimensions | 40 x 75 | 40 x 75 |
| Weight | 1250 | 1250 |
18GP REDIN "BURR-MATIC" UNIVERSAL GEAR DEBURRING MACHINE
Serial No 18GP167, Model 18GP, Series BURR-MATIC
EQUIPPED WITH:
Automatic Cycle Controls - Cycle Timer
10" 3-Jaw Universal Chuck - Tilting & Indexing
Left & Right Universal Grinding Heads
Reversible Grinder
Full Work Enclosure
Built-In Dust Collector
CATALOG SPECIFICATIONS:
Diameter Capacity, Maximum 28"
Pitch Diameter, Range .75" to 28"
Internal Pitch Diameter, Maximum 16"
Face Capacity, Maximum 6"
Part Weight, Maximum 800 LBS
Wheel Grinding Speed 13500 RPM
Wheel Diameter, Maximum 4"
Floor Space Required, W x L 40" x 75"
Weight Approximately 1250 LBS
NOTE: Except For Loading And Unloading, The Machine Is
Entirely Automatic In Operation. The Set-Up Is Simple
And Requires Only Minutes To Change From One Job
To Another.
F.O.B OUR WAREHOUSE
