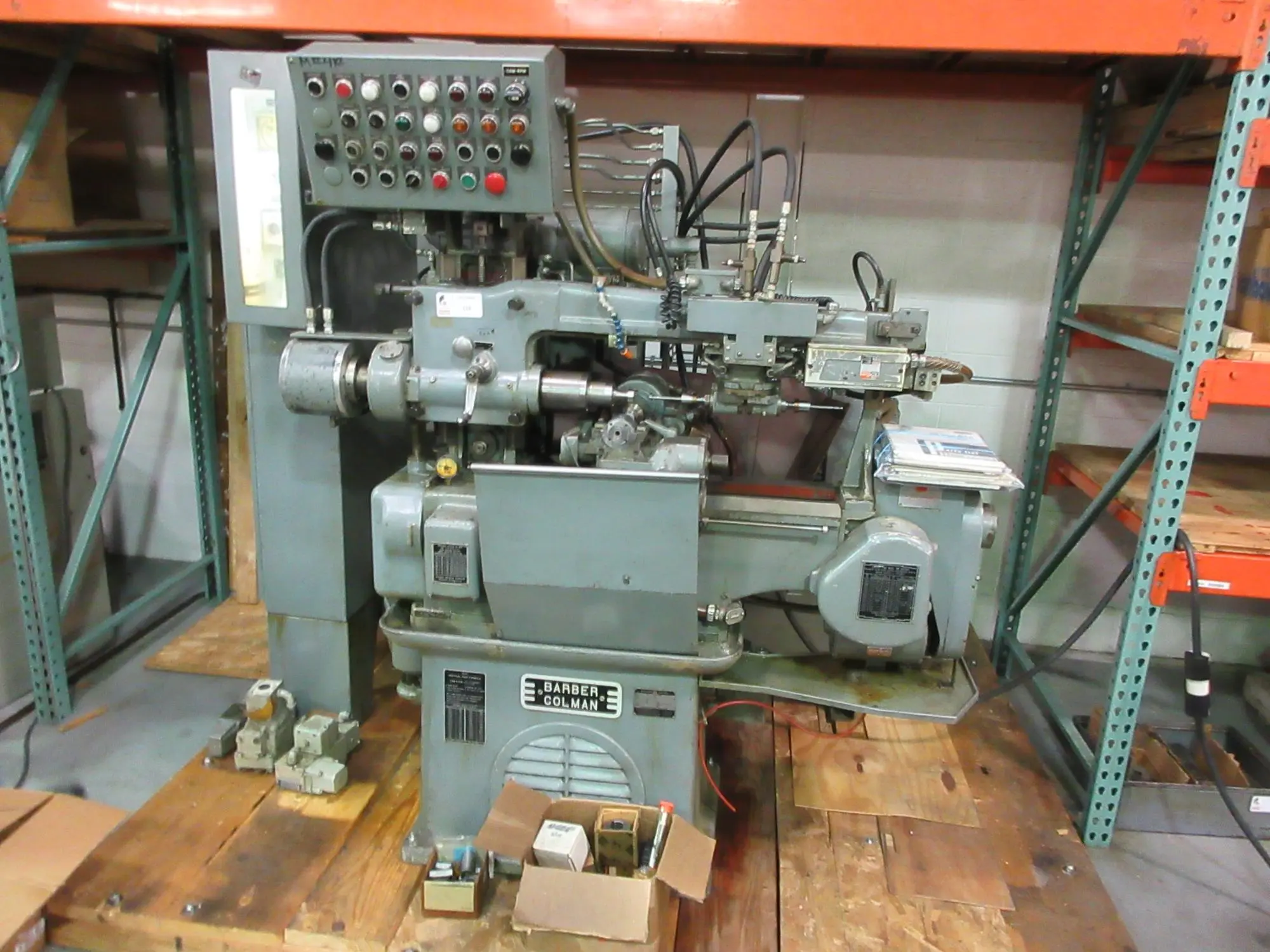

USED BARBER COLMAN 6-16

6-16 BARBER-COLMAN "MULTICYCLE" GEAR HOBBER

Serial No. 5182, Model 6-16, Series Multicycle

EQUIPMENT/FEATURES:

MULTICYCLE Interchangeable Automatic Hobbing Cycles

Triple Thread Index Worm

Automatic Hob Shifter

180-Degree Turret Tailstock

Double-Acting Hydraulic Chuck

Dwell Timer For Blind Cuts

Dovetail Overarm

3/4" Interchangeable Hob Arbor

Hydraulic Power Unit

Electrical Control Panel

Automatic Lubrication System

6-16 BARBER-COLMAN "MULTICYCLE" GEAR HOBBER
Serial No. 5182, Model 6-16, Series Multicycle

EQUIPMENT/FEATURES:
MULTICYCLE Interchangeable Automatic Hobbing Cycles
Triple Thread Index Worm
Automatic Hob Shifter
180-Degree Turret Tailstock
Double-Acting Hydraulic Chuck
Dwell Timer For Blind Cuts
Dovetail Overarm
3/4" Interchangeable Hob Arbor
Hydraulic Power Unit
Electrical Control Panel
Automatic Lubrication System

CATALOG SPECIFICATIONS:
Work Diameter, Maximum 6"
Travel Of Hob Slide, Maximum 16.5"
Distance Spindle to Tailstock, Maximum 21.75"
Distance Spindle To Tail Center
(Turret Machine), Maximum 15.75"
Hob Diameter, Maximum 3"
Hob Swivel Angle, Maximum 45-DEGREES
Hob Speed, Maximum 533 RPM
Main Motor, Horsepower 2 HP
Electrical System 220-440/3/60
Weight, Approximately 2550 LBS.
F.O.B. OUR WAREHOUSE
