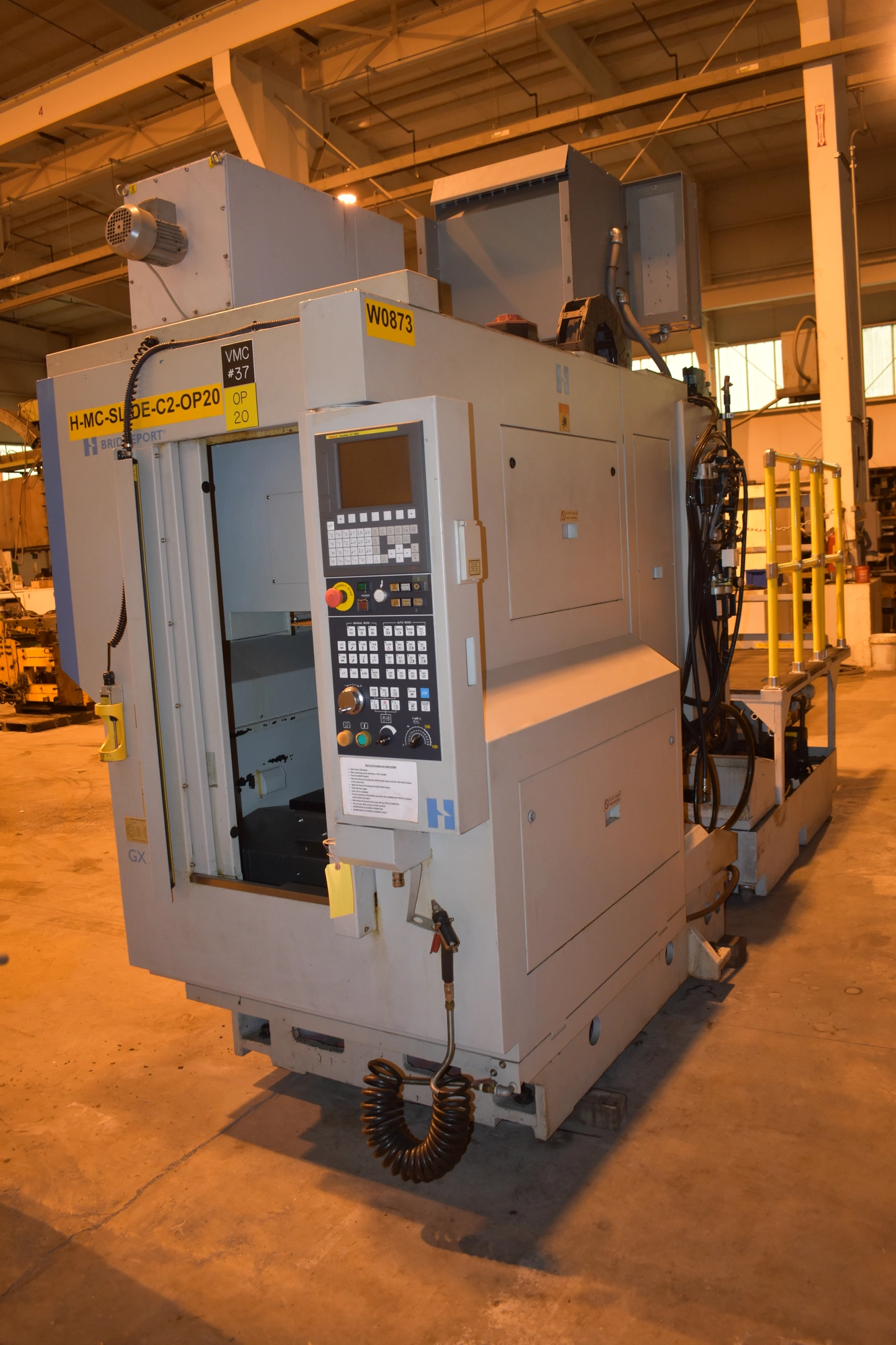

USED 2013 BRIDGEPORT/HARDINGE GX-300

GX-300 BRIDGEPORT/HARDINGE 4-AXIS CNC VERTICAL MACHINING CENTER

w/RNA-160L TSUDAKOMA NC ROTARY TABLE

New 2013, Serial No GXPB3H0015, Model GX-300

GX-300 BRIDGEPORT/HARDINGE 4-AXIS CNC VERTICAL MACHINING CENTER
w/RNA-160L TSUDAKOMA NC ROTARY TABLE
New 2013, Serial No GXPB3H0015, Model GX-300

EQUIPPED WITH:
Fanuc OiMD CNC Control
RNA-160L Tsudakoma NC Rotary Table
20-Position Bi-Directional Automatic Tool Changer (Swing-Arm)
Thru-Spindle Coolant - 20 HP Spindle Motor
Tend TZ-5106 Touch Probe
Losma "Icaras" Mist Filtration System (Model S)
LNS "TURBO 250" High Pressure Thru-Spindle
Coolant System w/Chip Conveyor

CATALOG SPECIFICATIONS:
Table Working Surface, W x L 15.8" x 23.6"
Table Load Capacity 396 LBS
Table Longitudinal Travel (X-Axis) 11.8"
Saddle Cross Travel (Y-Axis) 15.8"
Quill Vertical Travel (Z-Axis) 16.9"
Spindle Taper #40
Tool Diameter Full Drum, Maximum 3.15"
Tool Diameter Empty Pockets, Maximum 5.9"
Tool Length, Maximum 8.86"
Tool Weight, Maximum 13.2 LBS
Spindle Speeds, Range 0 to 7083 RPM
Positioning Speed Manual Mode, Range 0 to 354 IPM
Rapid Traverse Rates, X, Y, & Z-Axis' 1181 IPM
Distance Table to Gauge Plane, Range 5.9" to 22.8"
Spindle Motor, Horsepower Rating 20 HP
Machine Dimensions, L x D 57.09" x 100.87"
Machine Height 93.35"
Weight Approximately 11000 LBS

NOTE: These Machines Were Designed With A Very Compact Footprint
In Order To Better Utilize Valuable Floor Space. These Specifications
Make The GX Machines Ideal For The Aerospace, Medical Defense,
3C, Automotive And Other Industries Who Require High-Value, Complex,
Parts From Difficult To Machine Materials.
F.O.B. OUR WAREHOUSE
