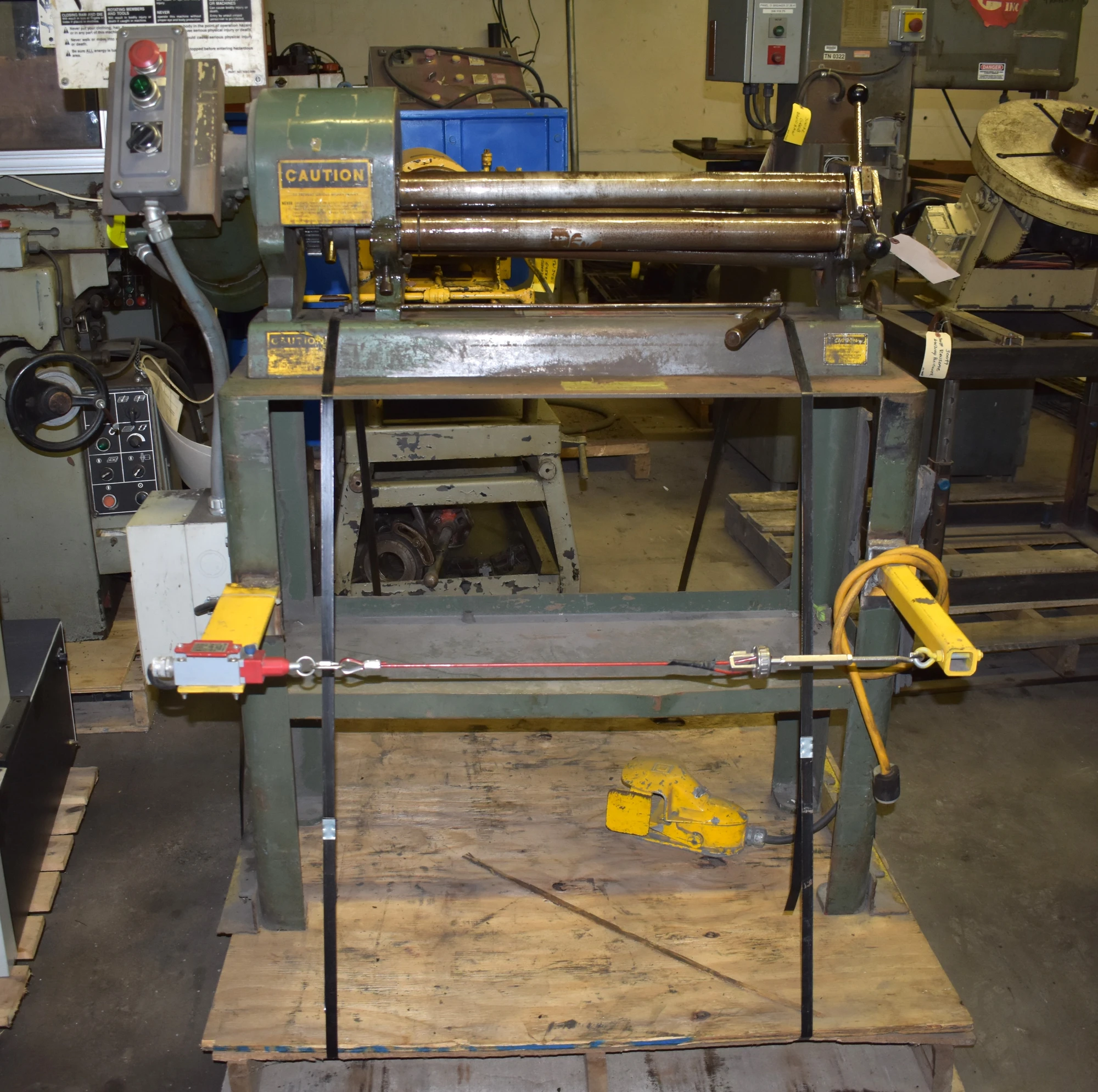

24" x 20 GA DI-ACRO POWER-OPERATED INITIAL-PINCH
BENDING ROLL
Serial No. 445018197, Model 24P
| Length of Rolls | 2' | 0.6 m |
| (Init/Dbl Pinch or Pyramid) | 'INIT PINCH' | 'INIT PINCH' |
| Max Thickness | 0.036" | 0.9144 mm |
| Max Thickness (gauge) | 20 gauge | 20 gauge |
| Hyd/Mech | 'Mech' | 'Mech' |
| Power | 0.3 hp | 0.2 kW |
| Roll Diameter | 2" | 50.8 mm |
| Dimensions | 40 x 24 | 40 x 24 |
| Weight | 450 | 450 |
24" x 20 GA DI-ACRO POWER-OPERATED INITIAL-PINCH
BENDING ROLL
Serial No. 445018197, Model 24P
EQUIPPED WITH:
Quick Release Upper Roll
Adjustable Lower Roll
Foot Pedal Control
CATALOG SPECIFICATIONS:
Bending Capacity 24"
Thickness Capacity 20 GAUGE
Top Roll Diameter 2"
Bottom Roll Diameter 2"
Roll Speed, Feet Per Minute 15 FPM
Motor, Horsepower 1/3 HP
Floor Space Required, L x W 40" x 24"
Weight, Approximately 450 LBS
F.O.B. OUR WAREHOUSE
