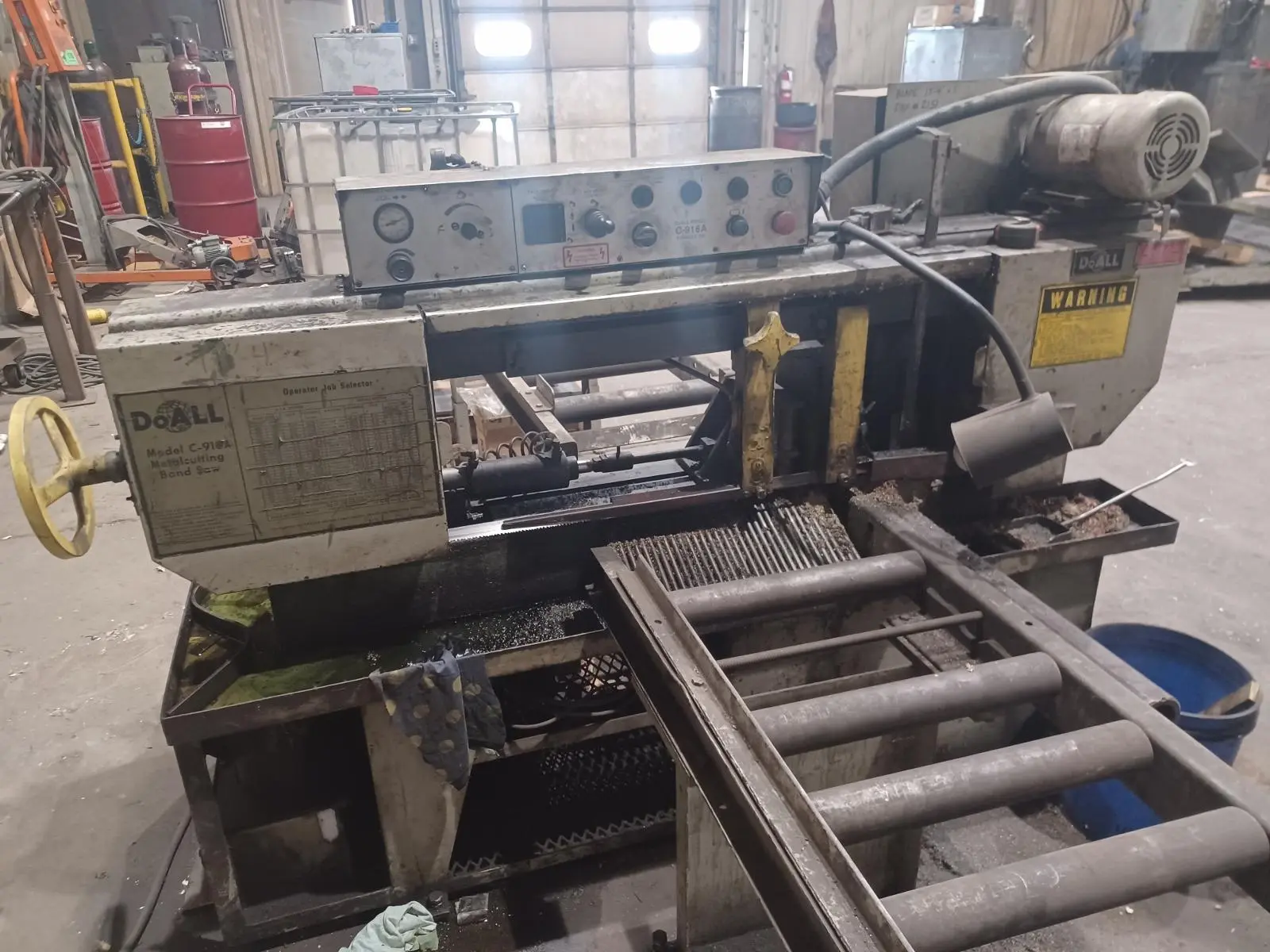

9" x 16" DOALL HORIZONTAL BAND SAW
Serial No 438-88210, Model C-916A
| Rect-Cap (H) | 9" | 228.6 mm |
| Rect-Cap (W) | 16" | 406.4 mm |
| Rounds-Cap | 10.75" | 273.05 mm |
| Power | 5 hp | 3.7 kW |
| Type (Auto, Manual, Semi) | 'Auto' | 'Auto' |
| Blade Width | 1" | 25.4 mm |
| Blade Thickness | 0.035" | 0.889 mm |
| Blade Length | 159" | 4,038.6 mm |
| Dimensions | 7'4" x 3'8" | 7'4" x 3'8" |
| Weight | 1320 LBS | 1320 LBS |
9" x 16" DOALL HORIZONTAL BAND SAW
Serial No 438-88210, Model C-916A
EQUIPPED WITH:
Power Clamping Vise
Hydraulic-Controlled Spring Balanced Saw Head
Infinitely Variable Hydraulic Feed Control
Infinitely Variable Speed Change
Entry & Exit Conveyors
Coolant System
CATALOGUE SPECIFICATIONS:
Round Stock Capacity, Maximum 10.75"
Flat Stock Capacity, Maximum 9" x 16"
Band Length 159"
Band Width 1"
Band Thickness .035"
Band Speeds, Variable 105 to 275 FPM
Index Length, Range .19" to 24'
Motor, Horsepower 5 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 7'4" x 3'8"
Weight, Approximately 1320 LBS
F.O.B. OUR WAREHOUSE
