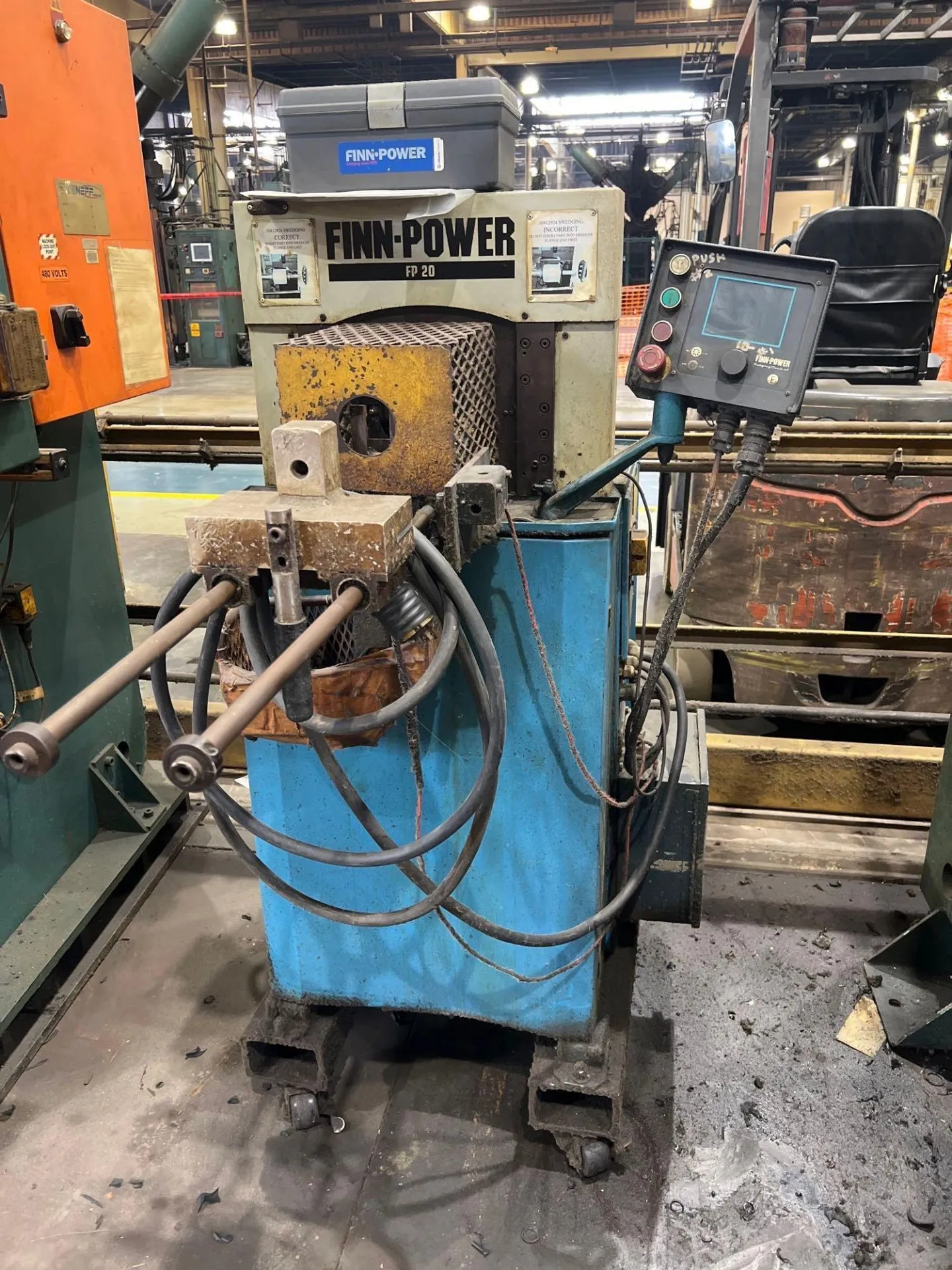

USED 2000 FINN-POWER FP20VS
Overview
Description
2.67" FINN-POWER HYRDRAULIC PRODUCTION
SWAGER/CRIMPING MACHINE W/FEEDER
New 2000, Serial No 1.1-FP20VS-3900, Model FP20 VS
Specifications
| Max Diameter | 2.67" | 67.818 mm |
|---|---|---|
| Weight | 1320 | 1320 |
2.67" FINN-POWER HYRDRAULIC PRODUCTION
SWAGER/CRIMPING MACHINE W/FEEDER
New 2000, Serial No 1.1-FP20VS-3900, Model FP20 VS
EQUIPPED WITH:
Front Operated Feeder
Built-In Hydraulics
Touchscreen Controller
CATALOG SPECIFICATIONS:
Swaging Diameter, Range to 2.67" 68 MM
Hose Size, Range to 1-1/4"
Crimping Diameter, Maximum 2.4" 61 MM
Crimping Diameter w/Master Dies, Maximum 3.7" 94 MM
Crimping Force kN, Maximum 1500 kN
Crimping Force Tonnage, Maximum 150 TONS
Maximum Die Opening +68 MM +2.677"
Master Die D/L 3.9/3.82" 84/97 MM
Motor Horsepower Rating 4 HP/3 KW
Weight Approximately 1320 LBS/600 KG
NOTE: The VS Model Is Designed For Full-Scale Production Of Multilple
Parts. The VS Can Store Up to 200 Configurations Of Swaging
Parameters.
F.O.B. OUR WAREHOUSE
