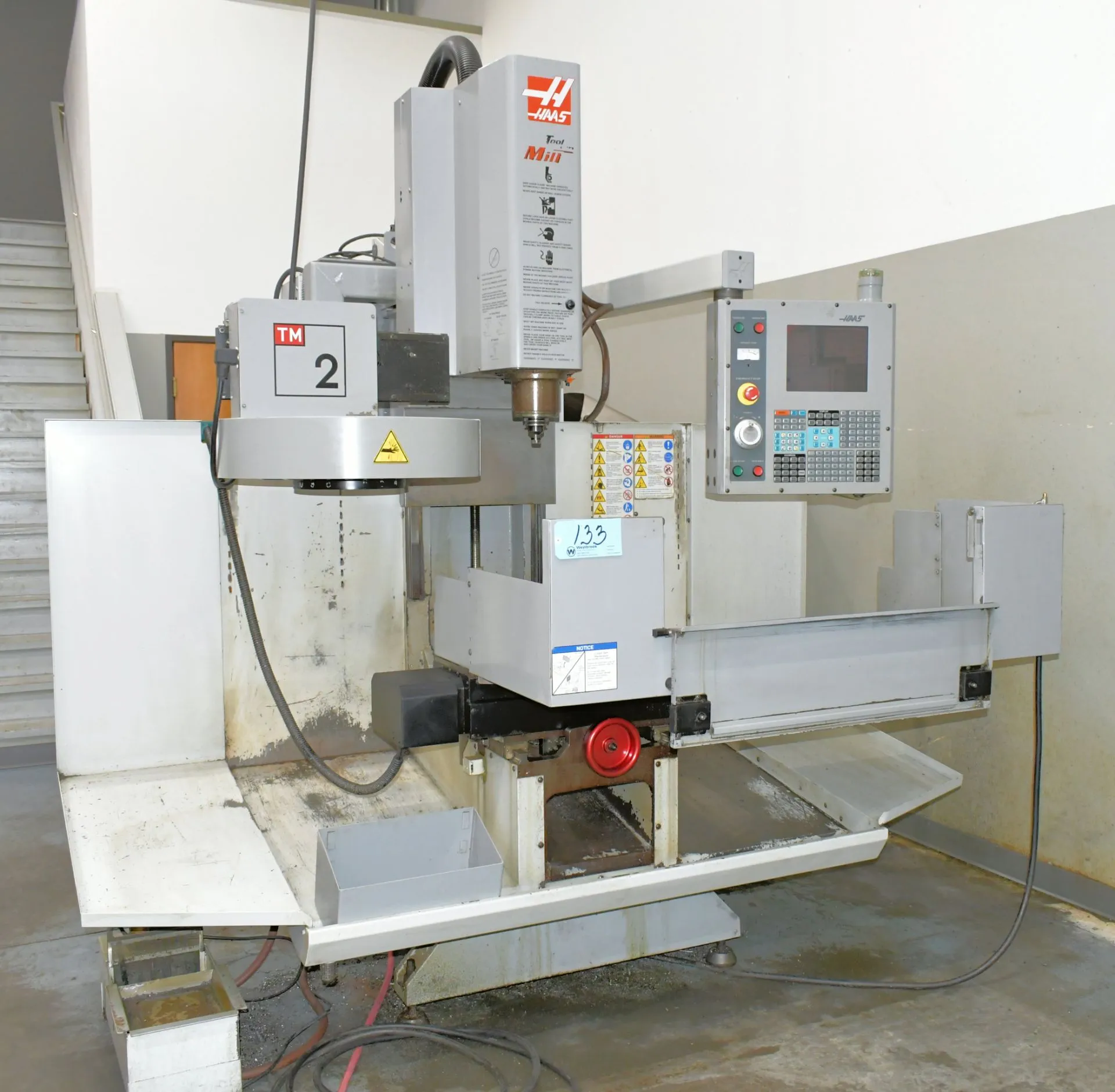

USED 2007 HAAS TM-2

TM-2 HAAS CNC "TOOLROOM" VERTICAL MILL MACHINING CENTER
New 2007, Serial No 1061072, Model TM-2, Series Toolroom

EQUIPPED WITH:
Haas 3-Axis CNC Control
20-Position Automatic Tool Changer
Rigid Tapping
Single Or 3-Phase Power
Coolant System

CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 10.5" x 57.75"
Table Longitudinal Travel (X-Axis) 40"
Saddle Cross Travel (Y-Axis) 16"
Quill Vertical Travel (Z-Axis) 16"
Spindle Nose to Table, Maximum 20"
Spindle Nose to Table, Minimum 4"
Spindle Taper #40
Spindle Speeds, Range 0 to 4000 RPM
Cutting Feedrate, Maximum 200 IPM
Rapid Traverse Rates, X, Y, & Z-Axis' 200 IPM
Spindle Motor, Horsepower Rating 7.5 HP
Overall Dimenstion, W x D 100" x 68"
Overall Height 118"
Weight, Approximately 3600 LBS
F.O.B. OUR WAREHOUSE
