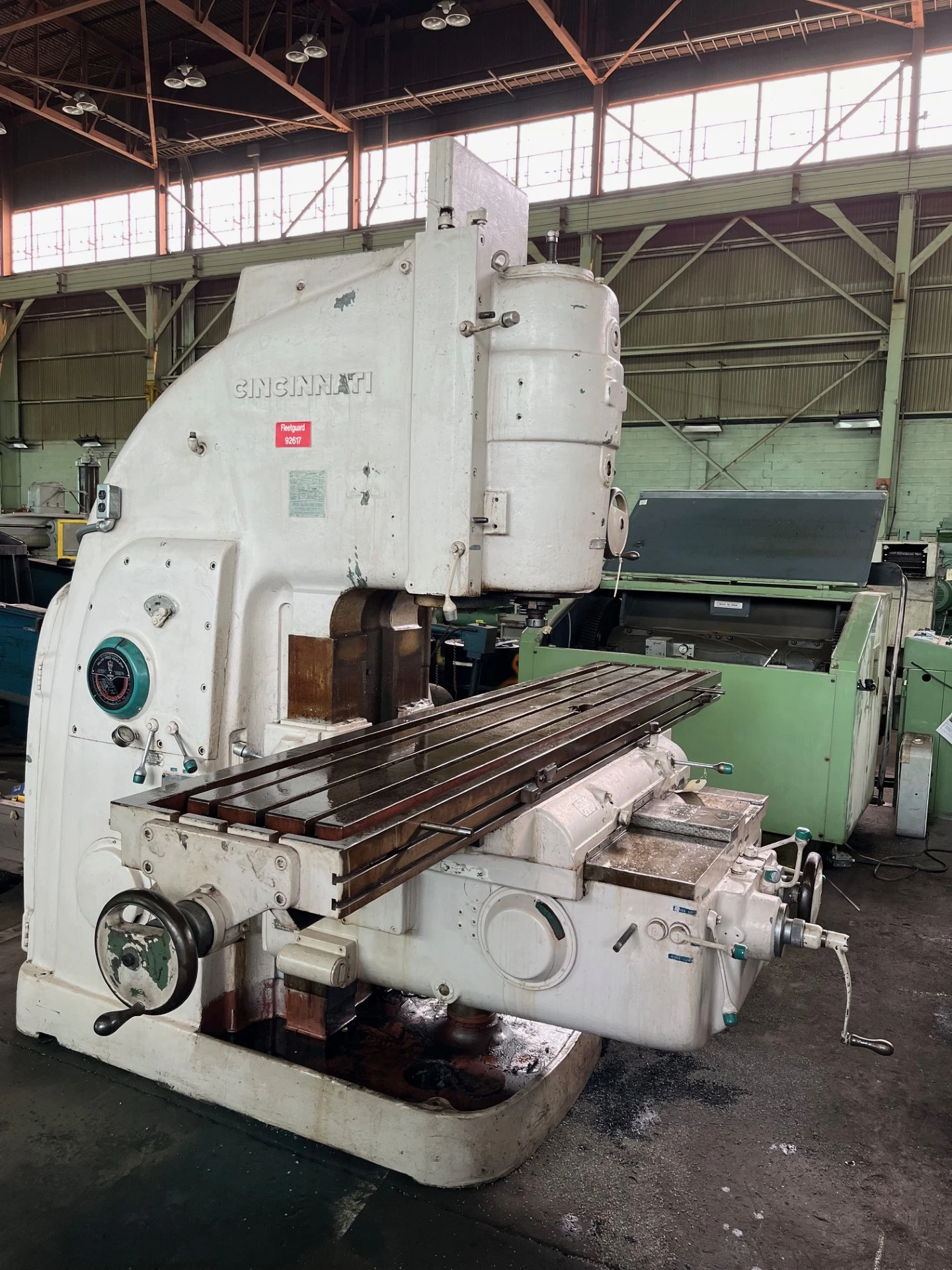

625-20 CINCINNATI-MILACRON "HIGH-POWER" DIAL-TYPE VERTICAL MILL
Serial No. 4J6V5F-2, Model "LA"
| Table-W | 20" | 508 mm |
| Table-L | 104.5" | 2,654.3 mm |
| Travel-Long | 60" | 1,524 mm |
| Travel-Cross | 18" | 457.2 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 1,400 RPM | 1,400 RPM |
| Taper | #50 NSTD | #50 NSTD |
| Dimensions | 11'3" x 15'3" | 11'3" x 15'3" |
| Weight | 18100 LBS | 18100 LBS |
625-20 CINCINNATI-MILACRON "HIGH-POWER" DIAL-TYPE VERTICAL MILL
Serial No. 4J6V5F-2, Model "LA"
EQUIPPED WITH:
Motor On Knee
Wide Knee & Saddle
Turret Depth Stops
CATALOG SPECIFICATIONS:
Table Size, Overall, L x W 20" x 104-1/2"
Table Working Surface, L x W 20" x 104-1/2"
Longitudinal Table Travel 60"
Cross Saddle Travel 18"
Vertical Knee Travel 16"
Spindle-Face to Table, Minimum 0"
Spindle-Face to Table, Maximum 22"
Spindle Taper #50 NSTD
(24) Spindle Speeds, Range 14 to 1400 RPM
(32) Longitudinal and Cross Feeds 3/8 to 90 IPM
(32) Vertical Feeds, Range 3/32 to 22.5 IPM
(32) Vertical Head Feeds, Range 3/16 to 45 IPM
Power Rapid Traverse, Long. & Cross 150 IPM
Power Rapid Traverse, Vertical 37.5 IPM
Power Rapid Traverse, Spindle Head 75 IPM
Spindle Motor, Horsepower 25 HP
Feed Motor, Horsepower 5 HP
Floor Space Required, W x D 11'3" x 15'3"
Weight, Approximately 18,100 LBS
F.O.B. OUR WAREHOUSE
