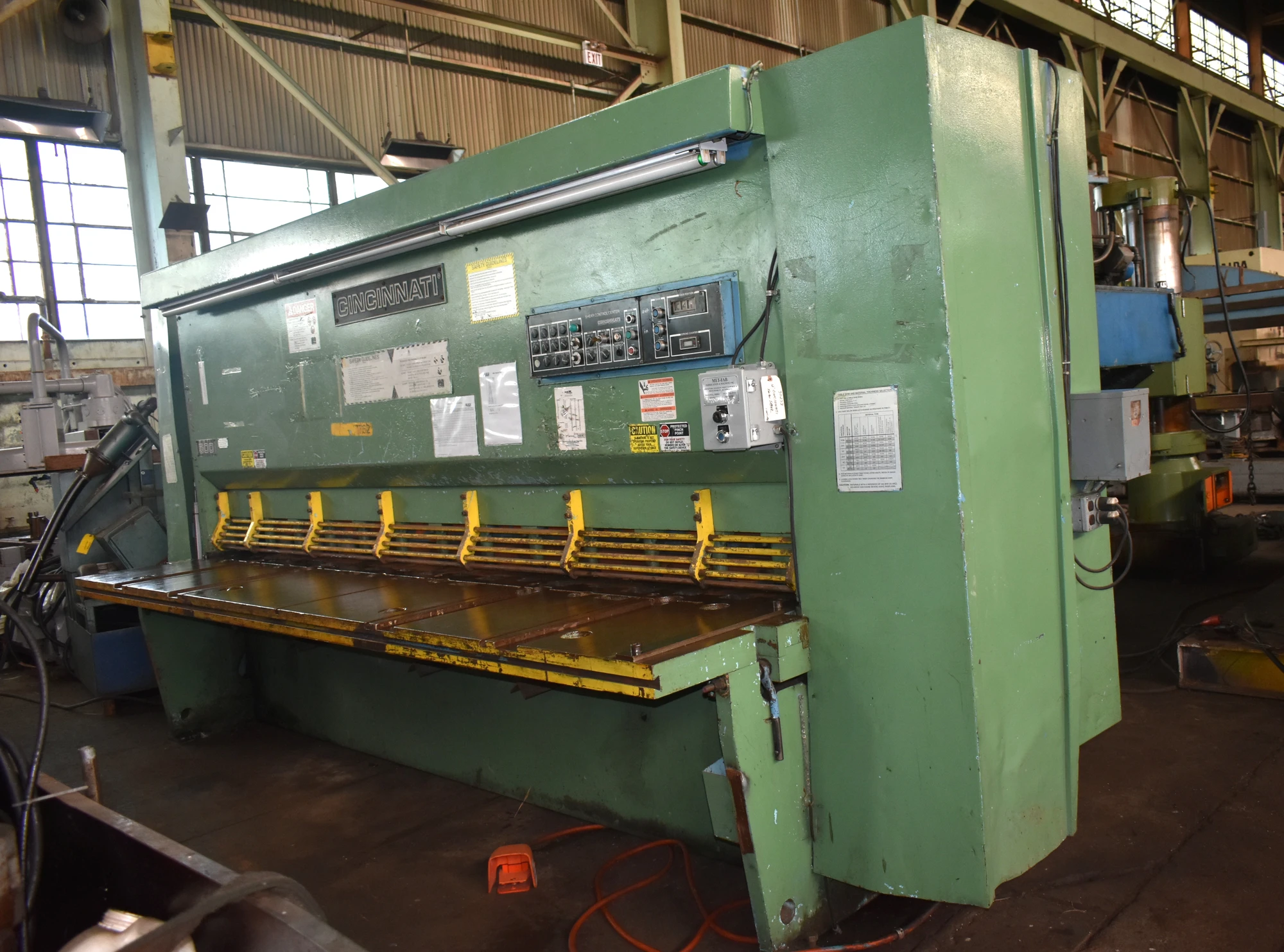

USED CINCINNATI INC 500HSX12FT

12' X 1/2" CINCINNATI-INC HYDRAULIC
POWER SQUARING SHEAR
Serial No 47762, Model 500HS x 12

EQUIPPED WITH:
48" Power Back Gauge (Front Operated)
Met Fab Pneumatic Rear Sheet Support
Power Swing Up Back Gauge
Ball Transfers In Table
(15) Hydraulic Holddowns
Power Adjustable Rake
Foot Pedal - Automatic Lubrication System

CATALOG SPECIFICATIONS:
Shearing Capacity, Mild Steel 12' X 1/2"
Material Thickness, Minimum 20 GA
Knife Size 1 x 4 x 148
Maximum Rake, In/Ft .500 IPF
Total Hold-Down Pressure 23.8 TONS
Distance Under Hold-Down 1"
Strokes Per Minute, Maximum 50 SPM
Strokes Per Minute, Minimum 17 SPM
Back Gauge Speed 60 IPM
Main Motor, Horsepower 40 HP
Electrical System 230-460/3/60
Overall Dimensions, W x D 198" x 106.5"
Overall Height 99"
Weight, Approximately 28,600 LBS
F.O.B. OUR WAREHOUSE
