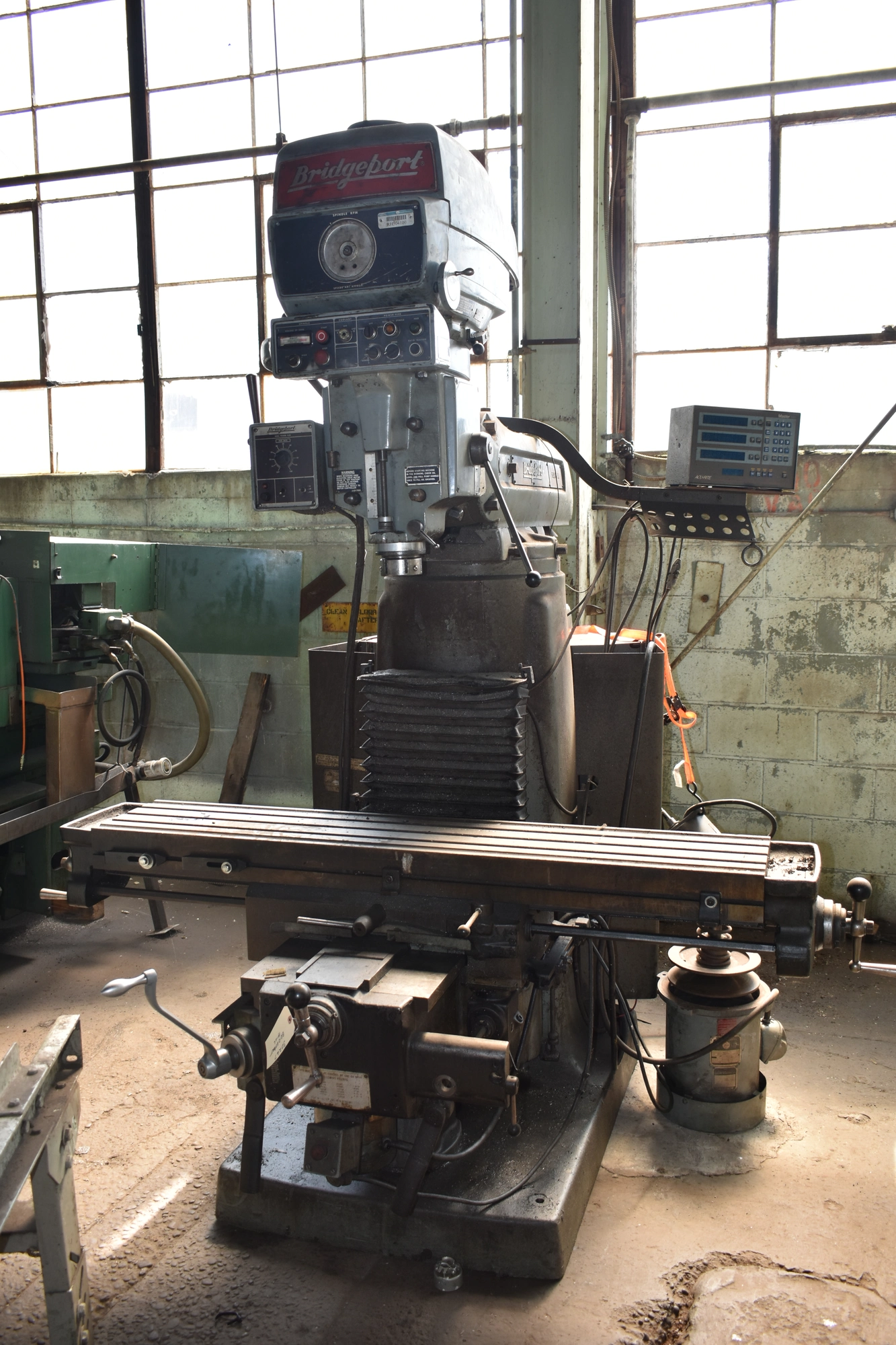

4J BRIDGEPORT "SERIES-II" MANUAL VERTICAL MILL
w/MANUAL TABLE TRAVEL ONLY
Serial No 1926599, Model 4J, Series "SERIES-II"
| Table-W | 11" | 279.4 mm |
| Table-L | 58" | 1,473.2 mm |
| Travel-Long | 30" | 762 mm |
| Travel-Cross | 15" | 381 mm |
| Power | 4 hp | 3 kW |
| RPM | 3,500 RPM | 3,500 RPM |
| Taper | #40 | #40 |
| Dimensions | 10' x 7' x 7'9'' | 10' x 7' x 7'9'' |
| Weight | 5220 | 5220 |
4J BRIDGEPORT "SERIES-II" MANUAL VERTICAL MILL
w/MANUAL TABLE TRAVEL ONLY
Serial No 1926599, Model 4J, Series "SERIES-II"
EQUIPPED WITH:
Acu-Rite "Master MF" 3-Axis Digital Readouts
Bridgeport Power Down-Feed to Quill
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 11" x 58"
Table Longitudinal Travel (X-Axis) 30"
Saddle Cross Travel (Y-Axis) 15"
Knee Vertical Travel (Z-Axis) 16"
Quill Travel 5"
Throat Distance, Minimum 10.625"
Throat Distance, Maximum 26.625"
Workpiece Load Capacity, Maximum 1500 LBS
Quill Diameter 4.25"
Spindle-Nose, Diameter 2.125"
Spindle Taper #40
Spindle-Head Swivel Degrees, L-R 90-DEGREES
Spindle-Head Swivel Degrees, F-B 30-DEGREES
Spindle Speeds, Infinitely Variable 50 to 3500 RPM
Spindle Motor, Horsepower/RPM 4 HP/ 1740 RPM
Floor Space Required, W x D 10' x 7'
Overall Height 7'9"
Weight, Approximately 5220 LBS
NOTE: Power Table Travels Have Been Disabled. Machine Can
Be Used Manually And We Are Selling AS-IS
F.O.B. OUR WAREHOUSE
