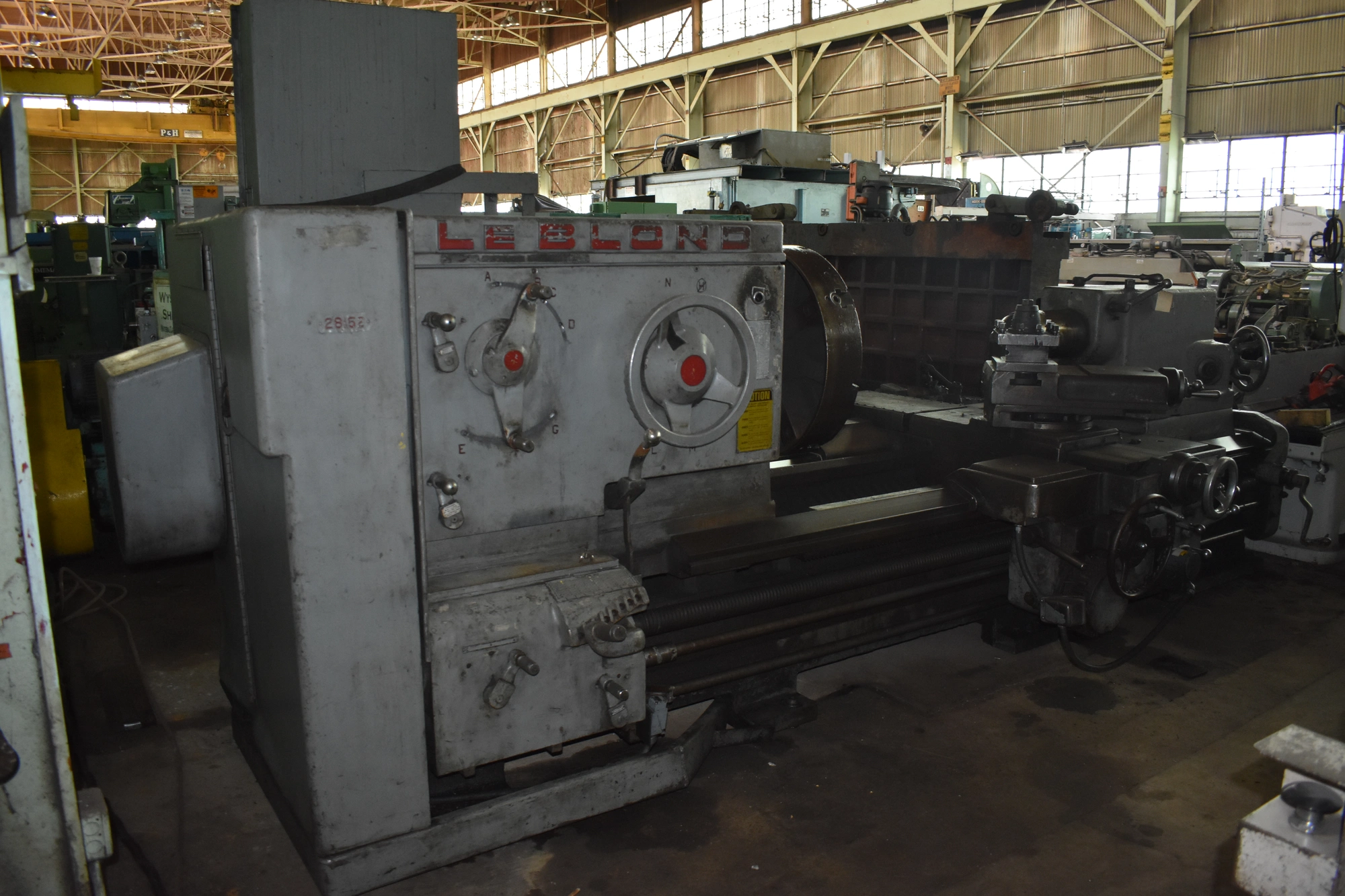

40" x 60" LEBLOND HEAVY-DUTY ENGINE LATHE
Serial No 3NK-922, Model 4025NK, Series "HEAVY-DUTY"
| Swing | 40" | 1,016 mm |
| Centers | 60" | 1,524 mm |
| Spindle Bore | 3.06" | 77.724 mm |
| Power | 40 hp | 29.8 kW |
| RPM | 1,770 RPM | 1,770 RPM |
| Swing Over Cross Slide | 25" | 635 mm |
| Dimensions | 170 x 87 | 170 x 87 |
| Weight | 30000 | 30000 |
40" x 60" LEBLOND HEAVY-DUTY ENGINE LATHE
Serial No 3NK-922, Model 4025NK, Series "HEAVY-DUTY"
EQUIPPED WITH:
28" 4-Jaw Chuck - 4-Way Tool Post
11" D-1 Camlock Spindle Nose
Threading Capabilities w/Threading Dial
Hardened & Ground Bed & Cross Slide Ways
Four-Directional Power Rapid Traverse
CATALOG SPECIFICATIONS:
Hole Thru Spindle 3.06"
Swing Over Bed Ways, Rated 40"
Swing Over Cross-Slide 25"
Distance Between Centers 60"
Cross-Slide Cross-Feed Travel 23.5"
Compound-Rest Travel 10.25"
Tailstock, Spindle Diameter 8"
Tailstock, Spindle Travel 18"
Tailstock, Spindle Taper #6 MT
(36) Spindle Speeds, Range 5.4 to 600 RPM
(48) Carriage Longitudinal Feeds .004 to .250 IPR
(48) Thread Changes, Range 3/4 to 46 TPI
Main Motor, Horsepower/RPM 40 HP/1770 RPM
Electrical System 230-460/3/60
Floor Space Required, L x W 170" x 87"
Weight, Approximately 30000 LBS
F.O.B. OUR WAREHOUSE
