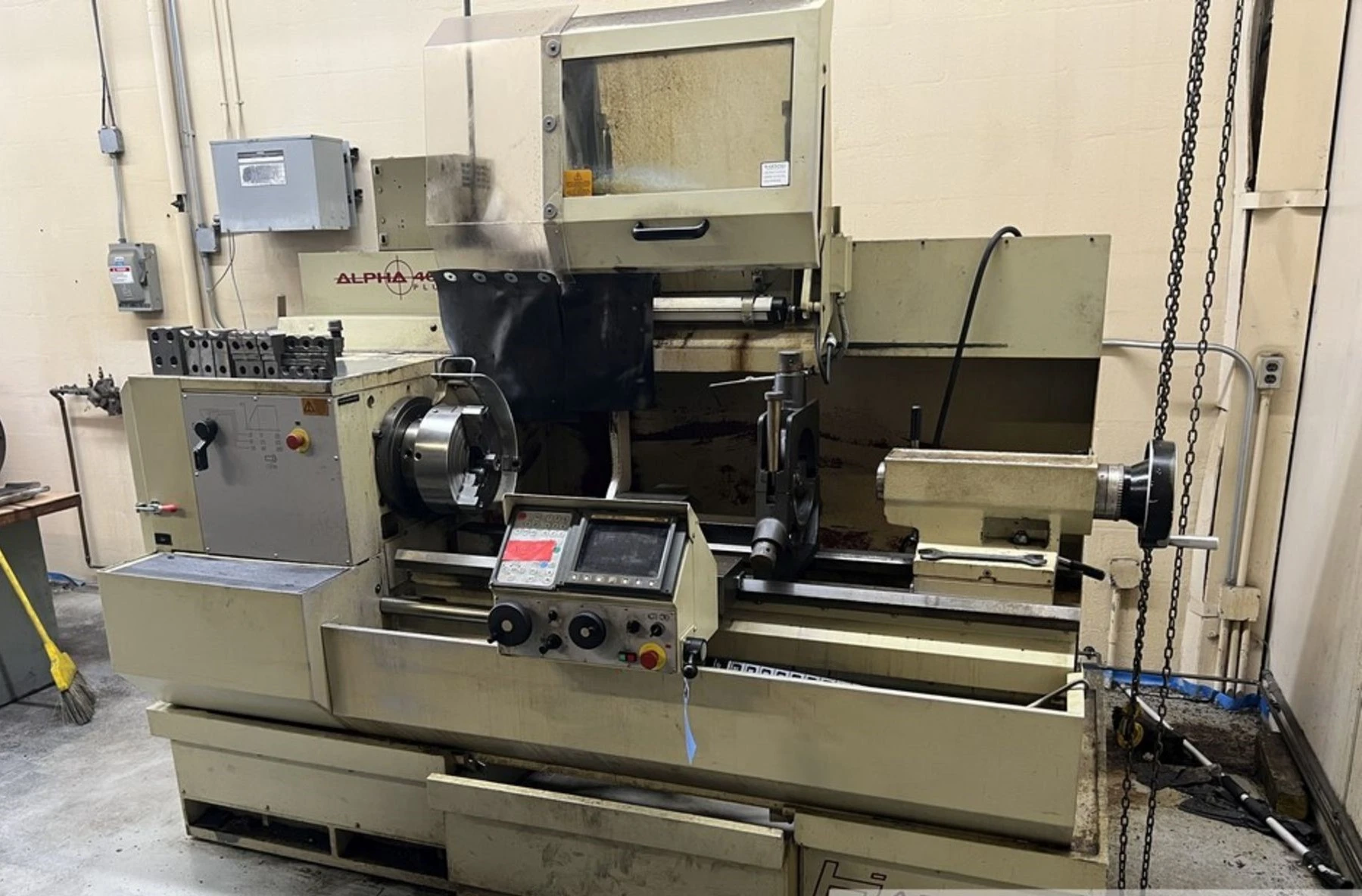

18/28.7" x 40" HARRISON "ALPHA 460 PLUS" GAP-TYPE
2-AXIS COMBINATION MANUAL/CNC LATHE
Serial No A40201, Model 460 PLUS,
Series Alpha
| Swing | 18.37" | 466.6 mm |
| Machining Length | 40" | 1,016 mm |
| # Axis | 2 | 2 |
| Chuck Size | 12" | 304.8 mm |
| Bar Capacity | 3.06" | 77.724 mm |
| Power | 15 hp | 11.2 kW |
| Max RPM | 2,000 RPM | 2,000 RPM |
| Turning Dia | 18.37" | 466.6 mm |
| Tailstock | Yes | Yes |
| Dimensions | 120 x 64 x 68 | 120 x 64 x 68 |
| Weight | 5825 | 5825 |
18/28.7" x 40" HARRISON "ALPHA 460 PLUS" GAP-TYPE
2-AXIS COMBINATION MANUAL/CNC LATHE
Serial No A40201, Model 460 PLUS,
Series Alpha
EQUIPPED WITH:
GE/Fanuc Alpha CNC Controls
D1-8 Camlock Spindle Nose
12" 3-Jaw Chuck - 16" 4-Jaw Chuck - 17" Faceplate
Steady Rest - Tailstock - Coolant System
CATALOG SPECIFICATIONS:
Spindle Bore Diameter.................. 3.06" 78MM
Swing Over Bed......................... 18.37" 460MM
Swing In Gap........................... 28.75" 730MM
Gap Width From Faceplate............... 8.5" 216MM
Swing Over Cross-Slide................. 10.625" 270MM
Distance Between Centers............... 40" 1000MM
Spindle Speeds, Range.................. 20 to 2000 RPM
Tailstock Quill Travel................. 5.62" 145MM
Tailstock Quill Diameter............... 3.75" 95MM
Tailstock Taper........................ 6 MT
Motor Rating........................... 15 HP 11kW
Overall Dimensions, L x W.............. 120" x 64"
Overall Height......................... 68"
Weight Approximately................... 5825 LBS
F.O.B. OUR WAREHOUSE
