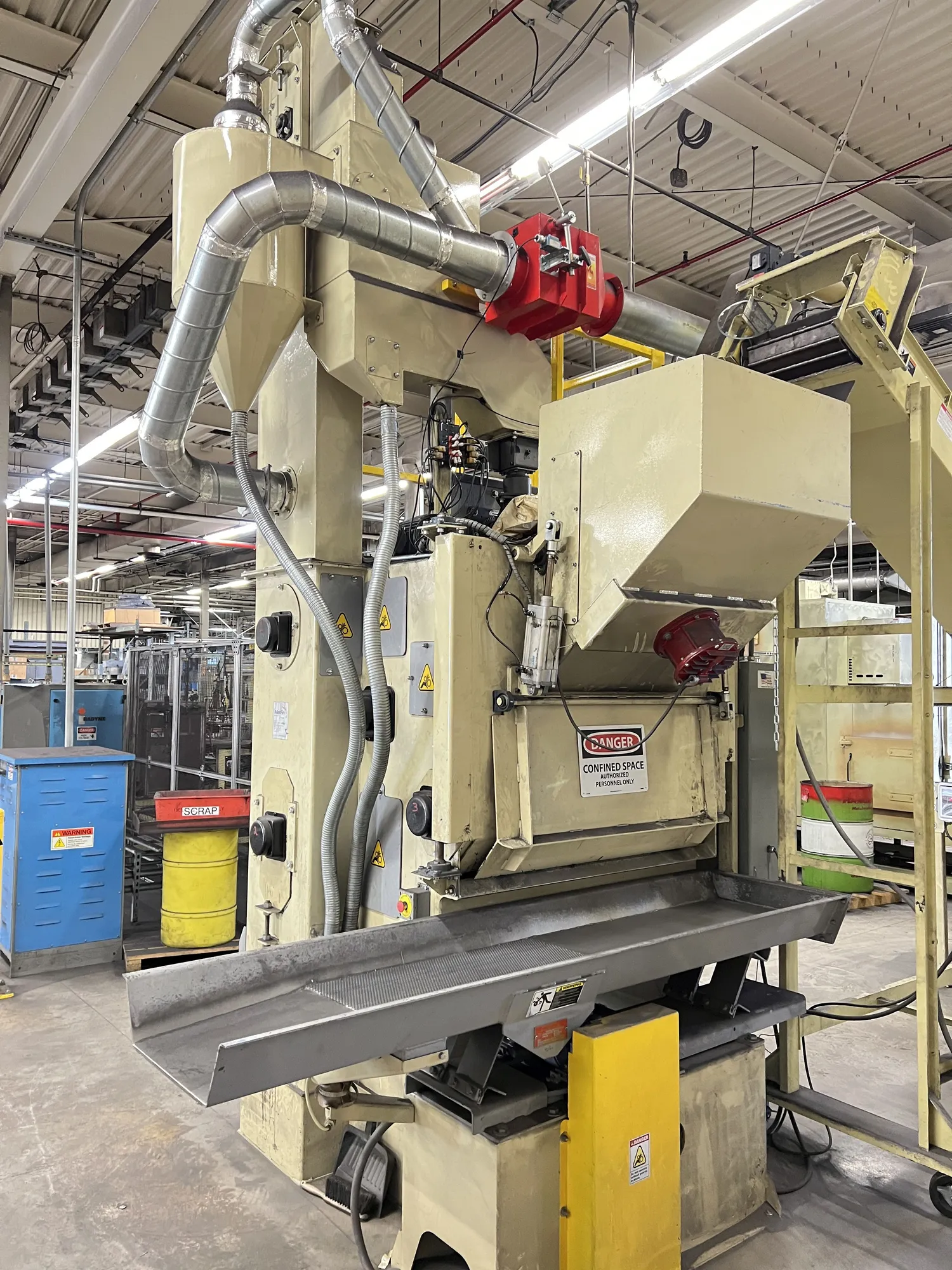

6 CU FT METFIN (METAL FINISH EQUIPMENT & SUPPLY CO, INC)
"SERIES I MODEL 600" BATCH-TYPE SHOT BLAST w/DUST COLLECTOR &
SHAKER TABLE
New 2017, Serial No 1167, Model 600, Series I
| Chamber-W | 53" | 1,346.2 mm |
| Chamber-D | 48" | 1,219.2 mm |
| Chamber-H | 48" | 1,219.2 mm |
6 CU FT METFIN (METAL FINISH EQUIPMENT & SUPPLY CO, INC)
"SERIES I MODEL 600" BATCH-TYPE SHOT BLAST w/DUST COLLECTOR &
SHAKER TABLE
New 2017, Serial No 1167, Model 600, Series I
EQUIPPED WITH:
46" Rubber Belt
Model 12 1250 CFM Dual Cartridge Dust Collector
Webster Model FSV, Size 18/24 Shaker Table
(Serial No 17-5456-1, 18/24 Wide, 8/16 Stroke)
Pneumatic Controlled Load & Unload Doors
Shake Out Abrasive Return To Elevator
(2) Titan Steel Belt Incline Load Conveyor
CATALOG SPECIFICATIONS:
Load Capacity 6 CU FT
46" Rubber Belt
Blast Cabinet Inside Dimensions, L-R 53"
Blast Cabinet Inside Dimensions, F-R 48"
Blast Cabinet Inside Dimensions, H 48"
Blast Cabinet Inside Belt Width 36"
NOTE: The MetFin Series I Model 600 Is Ideal For
Processing Parts In Batches, Ensuring Thorough
Cleaning And Surface Preparation. With This Machine
Parts Can Be Batched And Tumbled In Large Groups.
Parts Tumble In A "C" Configured Conveyor Belt System
While A Blast Wheel Propels Abrasive Into The Cup Of
The C. Batch Blasting Is The Most Cost Effective
Method Of Blasting Providing Components Can
Tolerate The Tumbling Action.
PRICE: F.O.B. OUR WAREHOUSE
