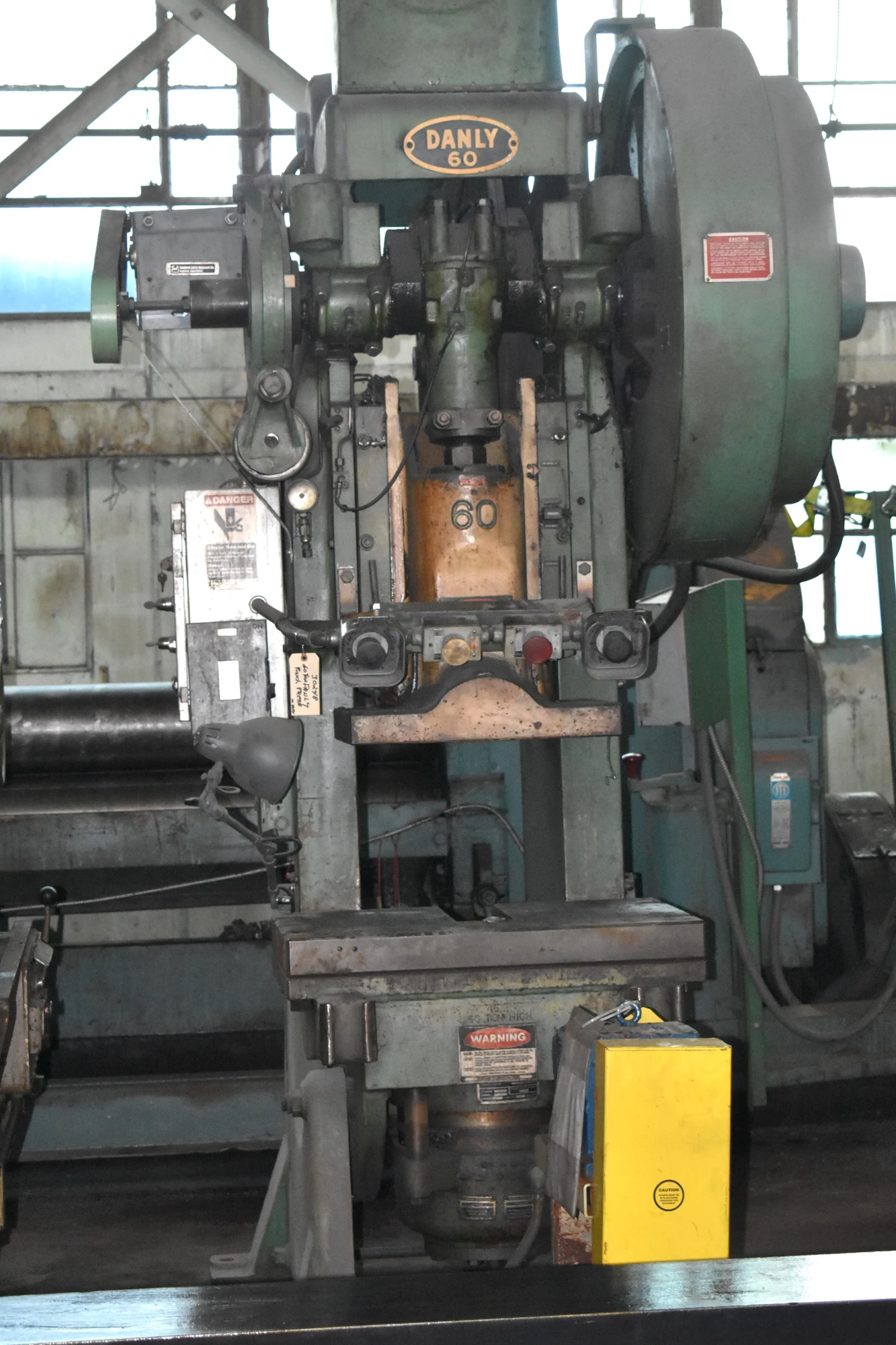

60 TON DANLY BACK-GEARED O.B.I. PRESS
Serial No 6055570168, Model 60
| Tonnage | 60 T | 54.431 t |
| Stroke | 5" | 127 mm |
| Shut Height | 12.75" | 323.85 mm |
| Bed W | 21" | 533.4 mm |
| Bed L | 32" | 812.8 mm |
| SPM | 45 strokes/min. | 45 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Type (BG, Double Action, FW) | Back-geared | Back-geared |
| Crank (Single/Double) | Single | Single |
| Dimensions | 57 x 84 | 57 x 84 |
| Weight | 10000 | 10000 |
60 TON DANLY BACK-GEARED O.B.I. PRESS
Serial No 6055570168, Model 60
EQUIPPED WITH:
Air Clutch & Brake
Back-Geared Design
100 Ton Air Cushion (2" Stroke, 14" Diameter)
32" x 21" x 3" Bolster Plate (Threaded)
Slide Adjustment
CATALOG SPECIFICATIONS:
Tonnage Capacity 60 TON
Stroke Length 5"
Shut Height to Bed, (SDAU) 12.75"
Ram Adjustment 9"
Slide Area, L-R x F-B 21" x 16"
Bed Area, L-R x F-B 32" x 21"
Bed Opening, L-R x F-B 17" x 13"
Bolster Area, L-R x F-B 32" x 21"
Bolster Thickness 3"
Throat Depth 11"
Width Opening In Back 7"
Strokes per Minute, Continuous 45 SPM
Strokes Per Minute, Single Stroking 38 SPM
Motor, Horsepower/RPM 10 HP/1740 RPM
Electrical System 208-220-440/3/60
Floor Space Overall Inclines, W x D 57" x 84"
Weight, Approximately 10000 LBS
F.O.B. OUR WAREHOUSE
