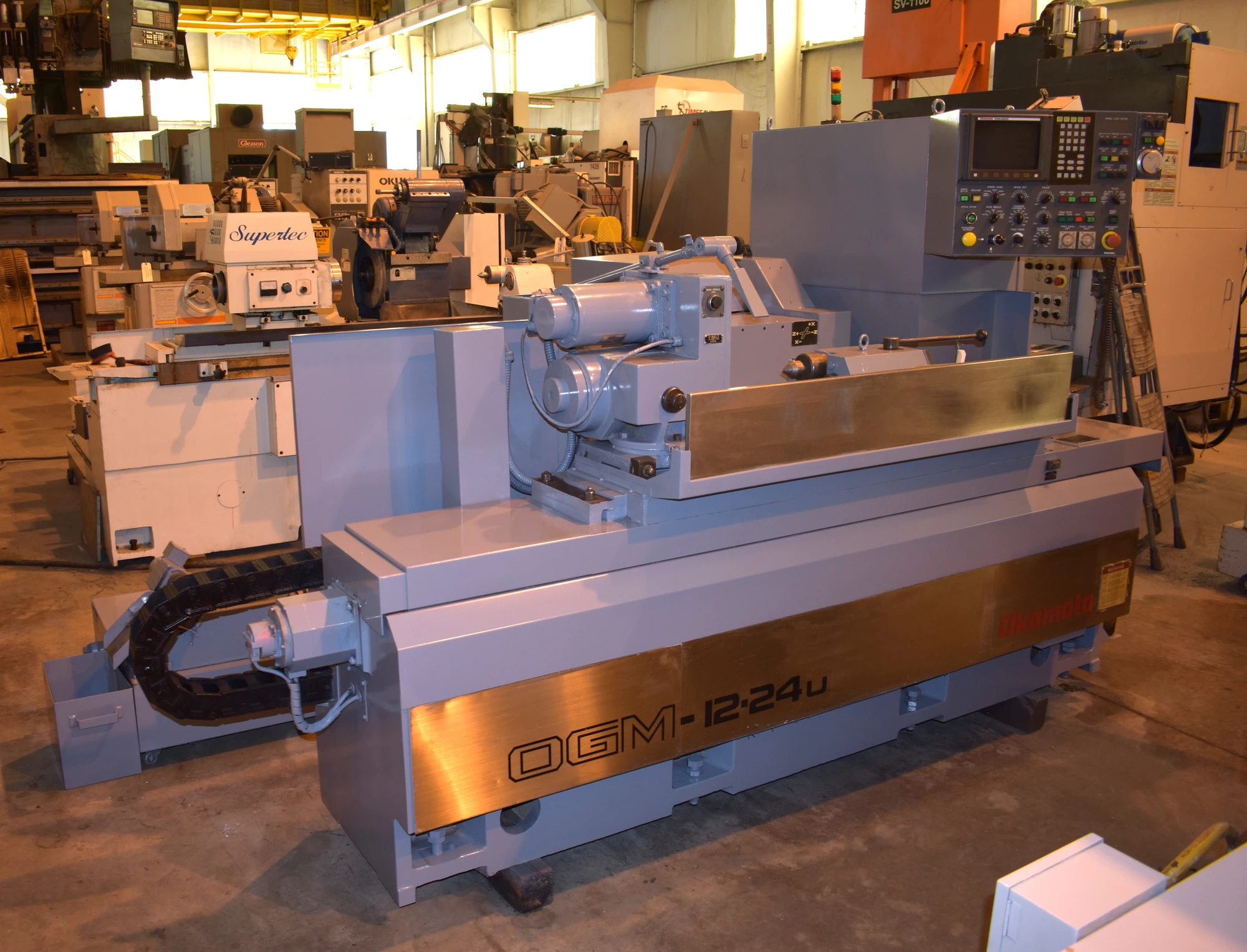

USED OKAMOTO OGM-12-24U

12" x 24" OKAMOTO CNC UNIVERSAL CYLINDRICAL GRINDER

Serial No 6017, Model OGM12-24U

12" x 24" OKAMOTO CNC UNIVERSAL CYLINDRICAL GRINDER
Serial No 6017, Model OGM12-24U

EQUIPPED WITH:
Okamoto/Fanuc CNC Control
Dead/Live Spindle Variable Speed Workhead
Automatic Lube System
Coolant Filtration System (Tank & Pump)

CATALOG SPECIFICATIONS:
Swing Over Table, Maximum.............. 12.6"
Distance Between Centers, Nominal...... 23.6"
Grinding Diameter, Maximum............. 11.8"
Weight Capacity Between Centers........ 330 LBS
Grinding Wheel Diameter, Standard...... 14"
Grinding Wheel Width, Standard......... 1.5"
Grinding Wheel Hole Diameter........... 5"
Table Swivel Adjustment................ 0 to -10-DEGREES
Wheelhead Swivel Range................. +/- 30-DEGREES
Workhead Swivel Range.................. + 30 tp -90-DEGREES
Tailstock Center Taper................. #4 MT
Workhead Center Taper.................. #4 MT
Tailstock Spindle Stroke............... 1.2"
Grinding Wheel Speeds, Range........... 1770 & 2000 RPM
Workhead Spindle Speeds, Range......... 10 to 500 RPM
Table Longitudinal Feeds, Range........ 0 to 393.7 IPM
Grinding Wheelhead Spindle Motor....... 7.5 HP
Workhead Motor, Horsepower............. 1 HP
Floor Space Required, L x D............ 137" x 74"
Overall Height......................... 64"
Weight, Approximately.................. 7716 LBS
F.O.B. OUR WAREHOUSE
