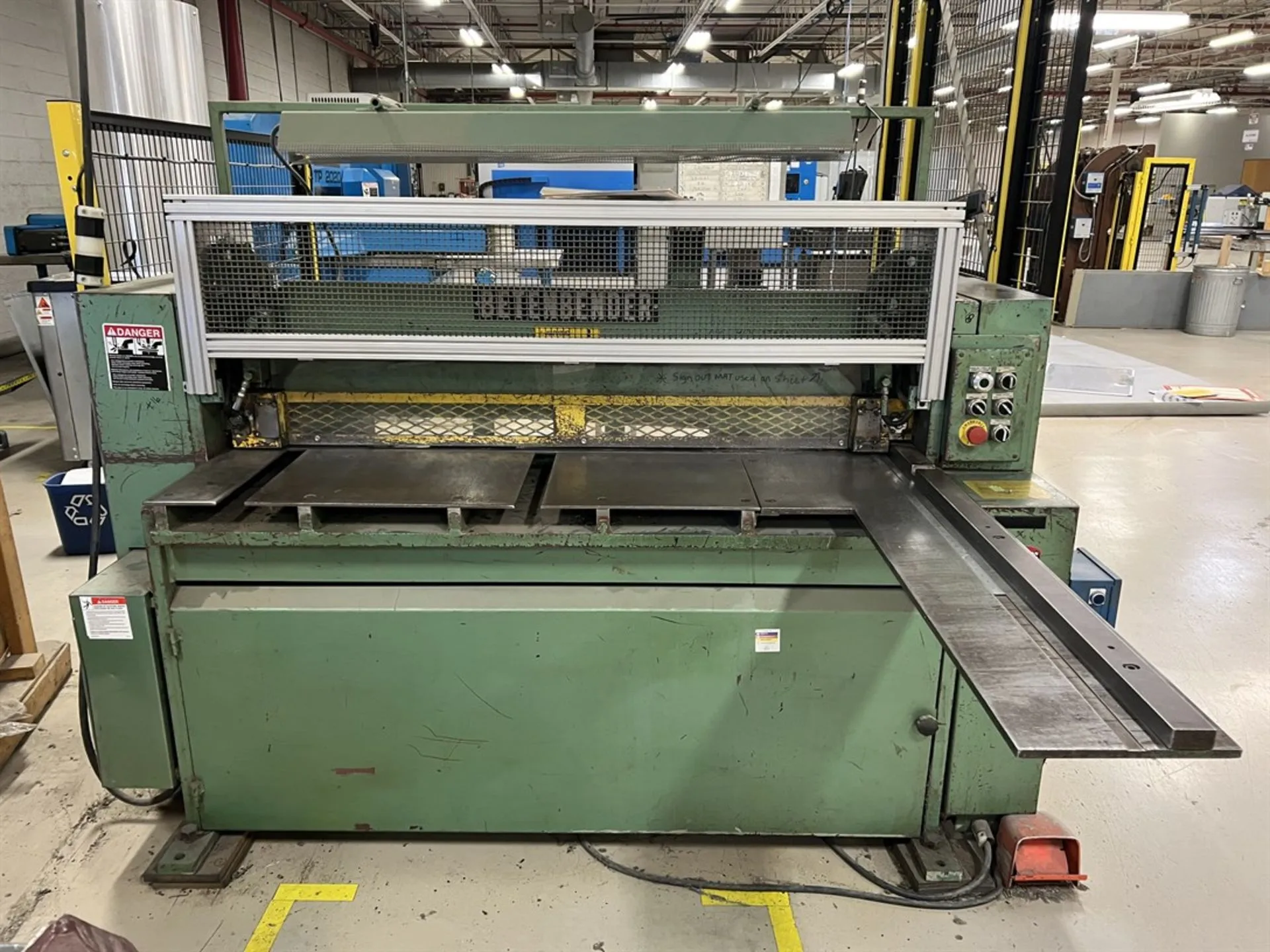

5' X 1/8" (10 GA) BETENBENDER LOW-PROFILE
HYDRAULIC POWER SQUARING SHEAR
Serial No 62589, Model 5'-125,
| Max Gauge | 10 gauge | 10 gauge |
| Length of Blade | 62" | 1,574.8 mm |
| Hyd/Mech | 'Hyd' | 'Hyd' |
| Back Gauge | 36" | 914.4 mm |
| Power | 10 hp | 7.5 kW |
| SPM | 35 strokes/min. | 35 strokes/min. |
| Dimensions | 85 x 74 | 85 x 74 |
| Weight | 4800 | 4800 |
5' X 1/8" (10 GA) BETENBENDER LOW-PROFILE
HYDRAULIC POWER SQUARING SHEAR
Serial No 62589, Model 5'-125,
EQUIPPED WITH:
36" Front Operated Power Back Gauge
4' Squaring Arm
Power Rake Angle Adjustment
Foot Switch - Extra Blade
CATALOG SPECIFICATIONS:
Shearing Capacity, Mild Steel 5' X 1/8" (10 GA)
Blade, Dimensions 1/2" x 2" x 62"
Table Height 32"
Strokes Per Minute 35 SPM
Number Of Holddown Pins 13
Rake Angle Per Rated Capacity 1/4"/FT
Main Motor, Horsepower 10 HP
Overall Dimensions, W x D 85" x 74"
Overall Height 55"
Weight, Approximately 4800 LBS
F.O.B. OUR WAREHOUSE
