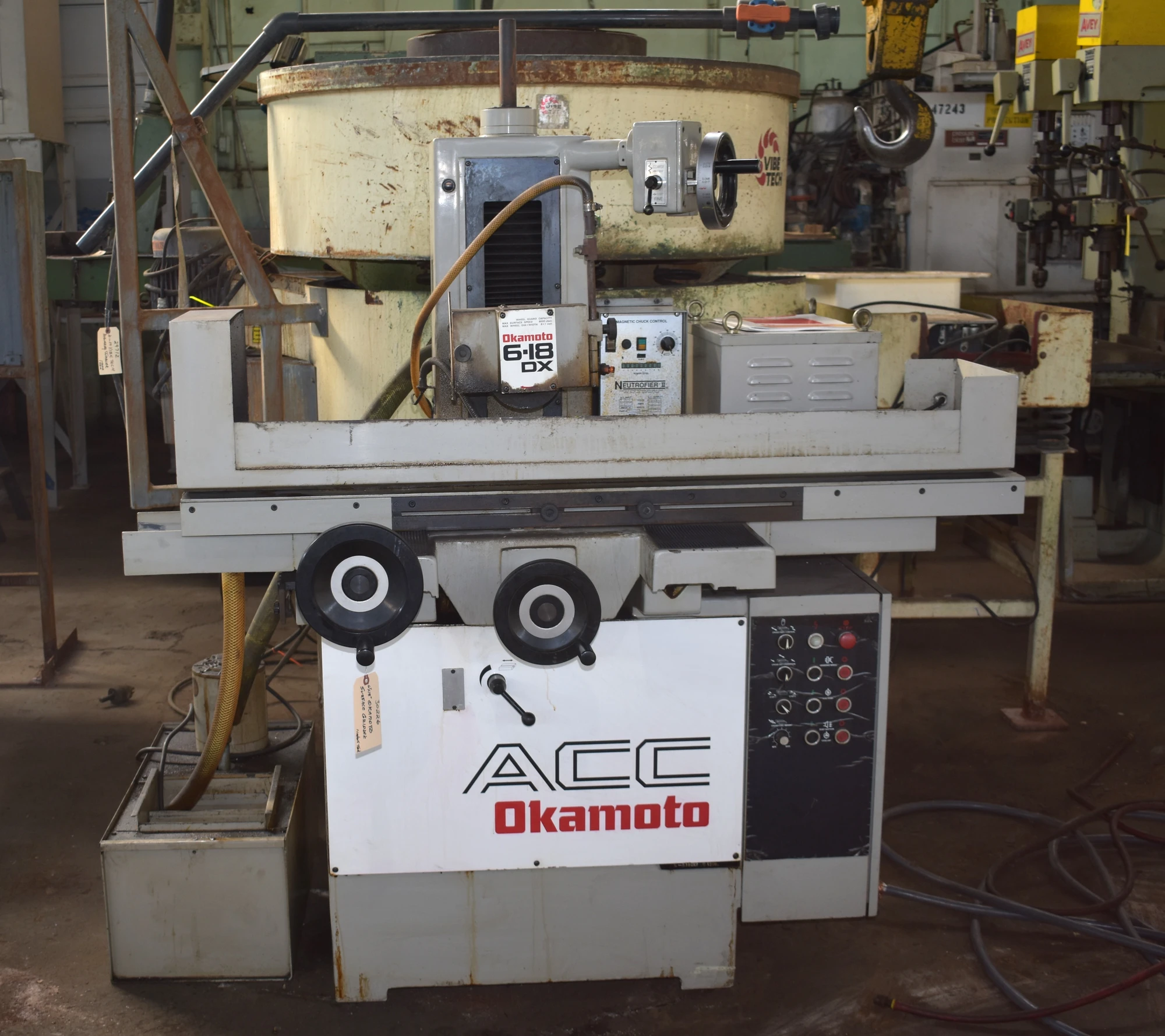

6" X 18" OKAMOTO "SADDLE-TYPE" HYDRAULIC-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No. 43082, Model ACC6-18DX2,
| Table-W | 6" | 152.4 mm |
| Table-L | 20" | 508 mm |
| Horz/Vert | 'Horz' | 'Horz' |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 1" | 25.4 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Dimensions | 77 X 51 | 77 X 51 |
| Weight | 2420 LBS | 2420 LBS |
6" X 18" OKAMOTO "SADDLE-TYPE" HYDRAULIC-FEED
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No. 43082, Model ACC6-18DX2,
EQUIPPED WITH:
Switchable Coarse-Fine Vertical Down Feed
6" x 18" Electro-Magnetic Chuck w/Neutrofier
Coolant System (Tank & Pump)
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 6" x 20"
Grinding Width Capacity, Maximum 6"
Grinding Length Capacity, Maximum 18"
Height Under 8" Grinding Wheel 11.7"
Table Load Capacity 264 LBS
Grinding Wheel Diameter, Standard 8"
Grinding Wheel Width, Standard 1"
Grinding Wheel Hole Diameter 1.25"
Table Longitudinal Feeds, Range .3 TO 66 FPM
Cross Feeds, Range .5 to 13 FPM
Grinding Wheel Spindle Motor 2 HP
Floor Space Required, L X D 77" X 51"
Overall Height 79"
Weight, Approximately 2420 LBS
F.O.B. OUR WAREHOUSE
