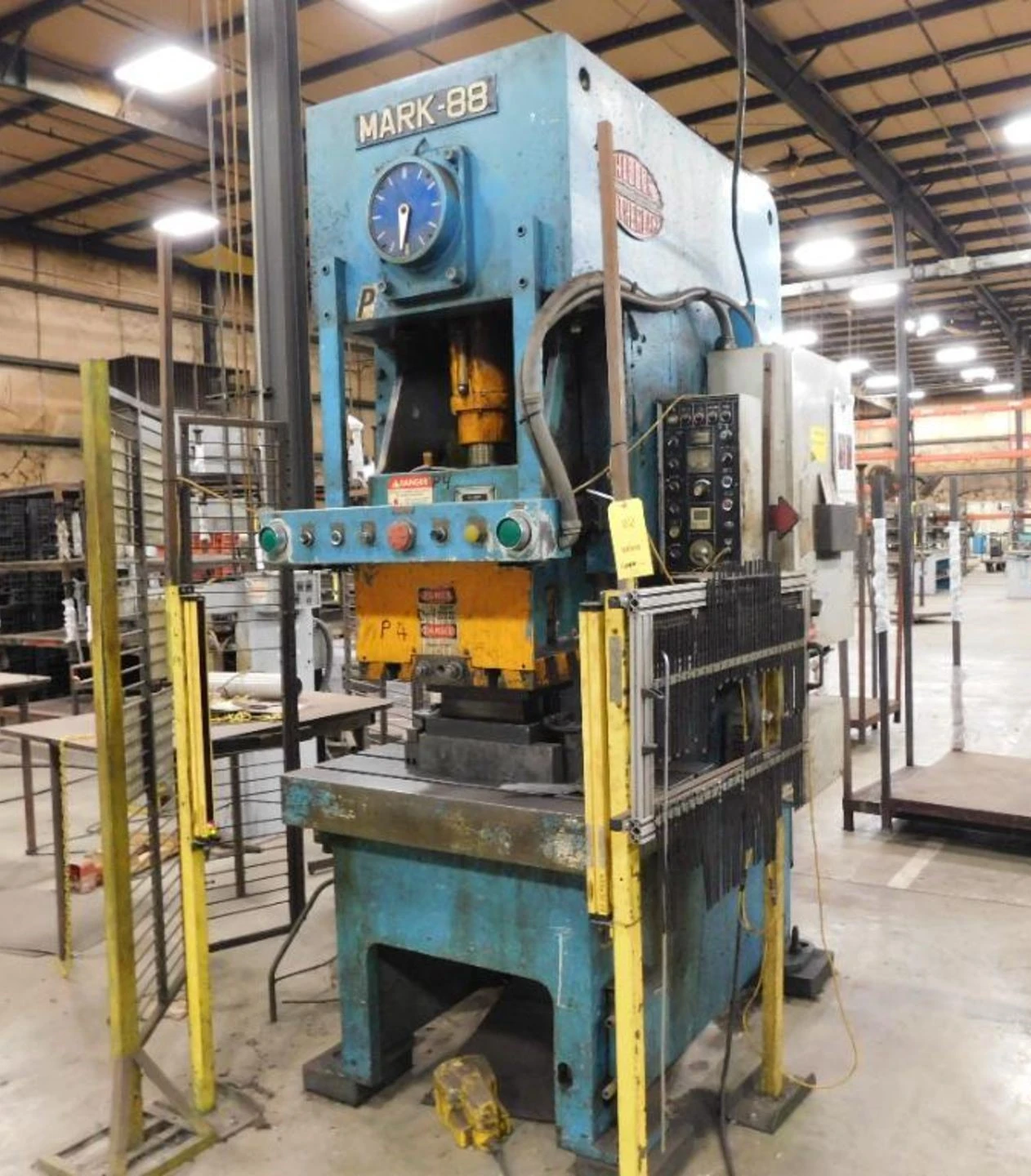

86 TON HELLER/SUTHERLAND SINGLE CRANK
GAP FRAME PRESS
Serial No 0120, Model MARK-88,
| Tonnage | 88 T | 79.832 t |
| Stroke | 5.9" | 149.86 mm |
| Shut Height | 12.9" | 327.66 mm |
| Power | 10 hp | 7.5 kW |
| Bed W | 23.6" | 599.44 mm |
| Bed L | 41.3" | 1,049 mm |
| SPM | 75 strokes/min. | 75 strokes/min. |
| Dimensions | 50" x 72" | 50" x 72" |
| Weight | 15000 | 15000 |
86 TON HELLER/SUTHERLAND SINGLE CRANK
GAP FRAME PRESS
Serial No 0120, Model MARK-88,
EQUIPPED WITH:
Twin Air Counterbalance In Frame
Variable Speed Drive
4" Thick Bolster Plate
Overload Protector
Lubrication System
CATALOG SPECIFICATIONS:
Tonnage Capacity, U.S. 88 TON
Tonnage Capacity, Metric 80 TON
Stroke Length 5.9"
Die Height, (SDAU) 12.9"
Slide Adjustment ......... 3.2"
Slide Area, L-R x F-B ......... 22" x 18"
Bolster Area, L-R x F-B ......... 41.3" x 23.6"
Bolster Thickness ......... 5.5"
Opening In Bed, L-R x F-B ......... 21" x 14.9"
Strokes Per Minute, Variable ......... 45 to 75 SPM
Motor, Horsepower ......... 10 HP
Slide Adjustment Motor ......... 0.5 HP
Floor Space Required, W x D ......... 50" x 72"
Overall Height ......... 118"
Weight Approximately ......... 15000 LBS
F.O.B. OUR WAREHOUSE
Stroke length: 5.9"
Bed area, l-r x f-b: 41.3" x 23.6"
Die Height, SDAU: 12.9"
Tonnage Capacity,: 88 TON
Slide Adjustment: 3.2"
Bolster Thickness: 5.5"
Strokes Per Minute, Variable: 45 to 75 SPM
Motor, Horsepower: 10 HP
Slide Adjustment Motor: 0.5 HP
Overall Height: 118"
Weight Approximately: 15000 LBS
