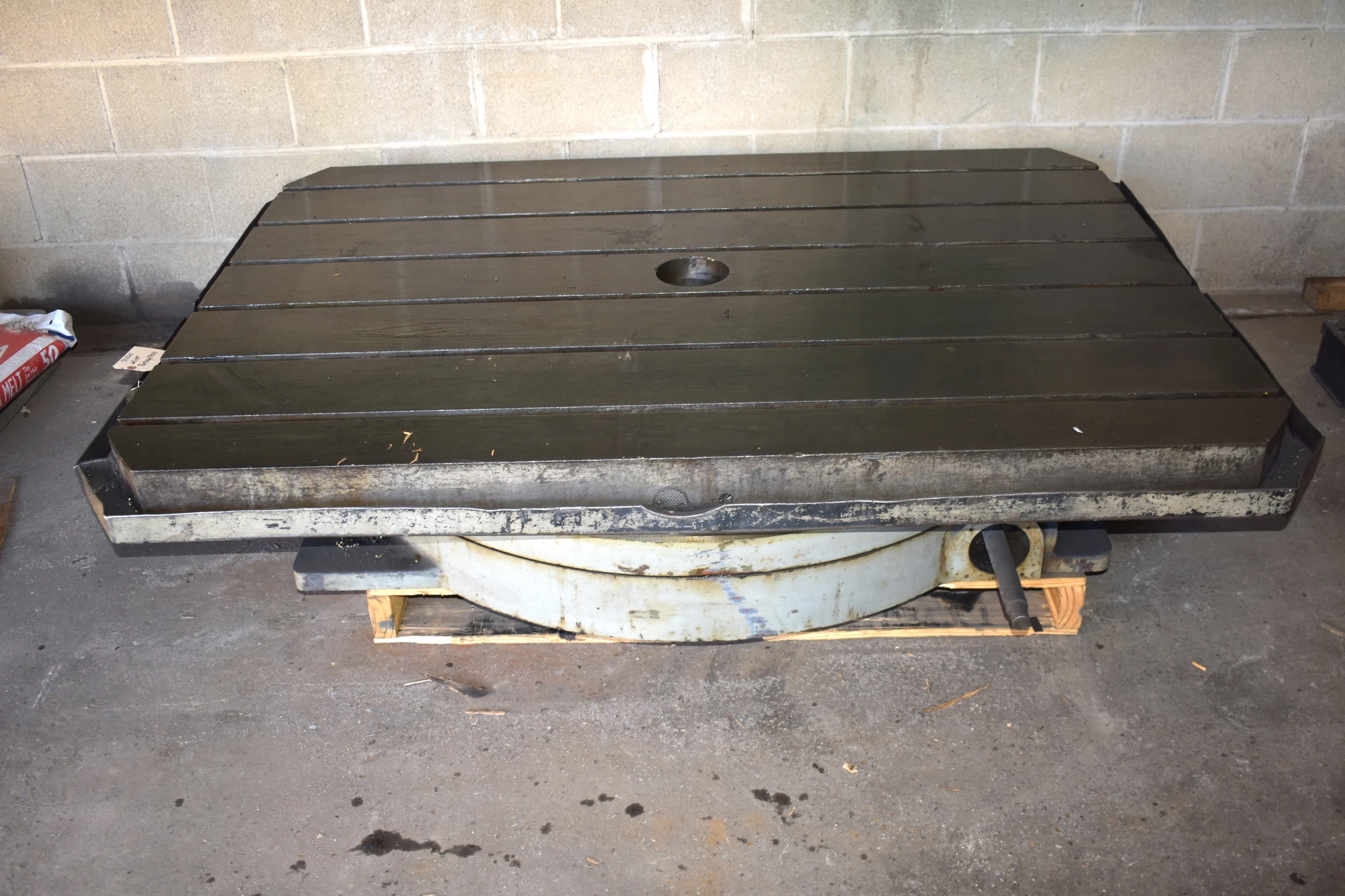

48" X 66" GIDDINGS & LEWIS PLAIN HAND-FEED T-SLOTTED RECTANGULAR ROTARY TABLE w/1/2-DEGREE TABLE GRADUATIONS - HAND CRANK DESIGN

48" X 66" GIDDINGS & LEWIS PLAIN HAND-FEED

RECTANGULAR ROTARY TABLE

48" X 66" GIDDINGS & LEWIS PLAIN HAND-FEED
RECTANGULAR ROTARY TABLE

EQUIPPED WITH:
Hand-Feed
Clockwise & Counterclockwise Rotation
Table Graduations 1/2-Degree Increments

CATALOG SPECIFICATIONS:
Table Size 48" x 66"
Platen Height 12-1/2"
Center Hole Size 5"
T-Slots Number 6
Table Graduations 1/2 DEGREE
Weight 4400 LBS
This Table Can Be Positioned By The Hand Crank Worm
Or For Rapid Positioning The Worm Can Be Disengaged
& Positioned by hand.
F.O.B. OUR WAREHOUSE
