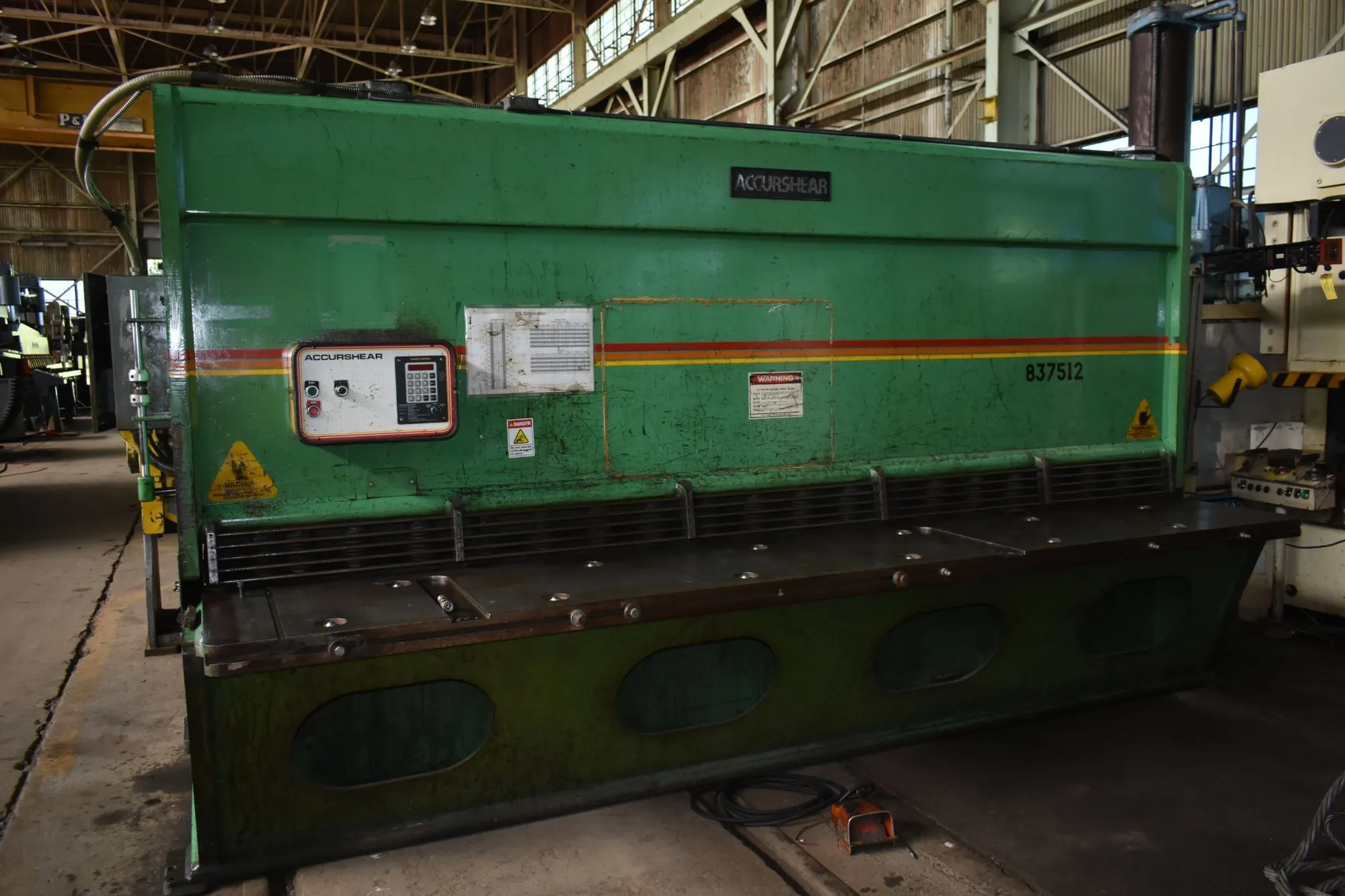

12' x 3/8" ACCURSHEAR HYDRAMECHANICAL
POWER SQUARING SHEAR
Serial No 1793, Model 837512,
| Max Gauge | 38 gauge | 38 gauge |
| Length of Blade | 146" | 3,708.4 mm |
| Hyd/Mech | Hyd | Hyd |
| Power | 20 hp | 14.9 kW |
| Dimensions | L x D 157 x 85 | L x D 157 x 85 |
| Weight | 27000 | 27000 |
12' x 3/8" ACCURSHEAR HYDRAMECHANICAL
POWER SQUARING SHEAR
Serial No 1793, Model 837512,
EQUIPPED WITH:
Accurshear LED Display Control
36" Front Operated Power Back Gauge
Squaring Arm - Front Supports
Gap Correction - No Pit Required
CATALOG SPECIFICATIONS:
Shearing Capacity, Nominal ......... 12' x 3/8"
Length Of Knife ......... 12'2"
Knife Dimensions ......... 1" x 3"
Depth Of Gap ......... 12"
Clearance, Minimum ......... .002"
Oil Pressure ......... 2600 PSI
Motor Horsepower ......... 20 HP
Electrical System ......... 460/3/60
Overall Dimensions, L x D 157" x 85"
Overall Height 90"
Weight, Approximately 27000 LBS
F.O.B. OUR WAREHOUSE
Shearing Capacity, Nominal: 12' x 3/8"
Length Of Knife: 12'2"
Knife Dimensions: 1" x 3"
Depth Of Gap: 12"
Clearance, Minimum: 002"
Oil Pressure: 2600 PSI
Motor Horsepower: 20 HP
Electrical System: 460/3/60
