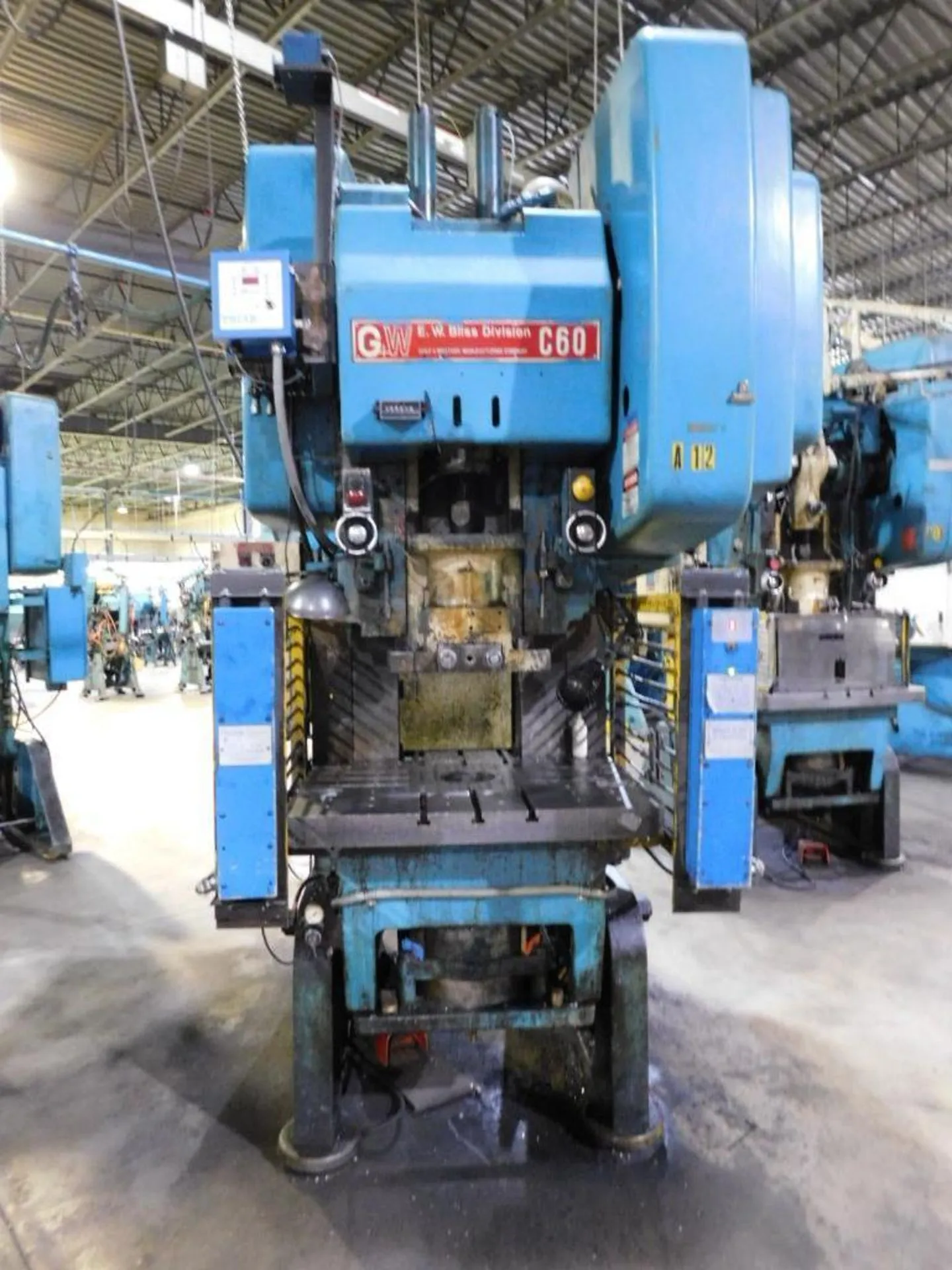

60 TON BLISS (EW) O.B.I. PRESS
Serial No H69009, Model C60
| Tonnage | 60 T | 54.431 t |
| Stroke | 4" | 101.6 mm |
| Shut Height | 14.25" | 361.95 mm |
| Bed W | 21.5" | 546.1 mm |
| Bed L | 32" | 812.8 mm |
| Air Clutch (Yes/No) | Yes | Yes |
| Dimensions | 6' x 8' | 6' x 8' |
| Weight | 10000 | 10000 |
60 TON BLISS (EW) O.B.I. PRESS
Serial No H69009, Model C60
EQUIPPED WITH:
Air Clutch & Brake
TR-1.8-2F-20 Triad Light Curtains (S/N 8916171)
Air Cushion
36" x 32" T-Slotted Bolster Plate
CATALOG SPECIFICATIONS:
Tonnage Capacity 60 TON
Stroke Length 4"
Shut Height, (SDAU) 14.25"
Ram Adjustment, 3"
Slide Area, L-R x F-B 20" x 15.25"
Bed Area, L-R x F-B 32" x 21.5"
Throat Depth 18"
Motor Horsepower/RPM 7-1/2 HP/1750 RPM
Electrical System 230-460/3/60
Overall Dimensions, W x D 6' x 8'
Weight, Approximately 10000 LBS
F.O.B. OUR WAREHOUSE
