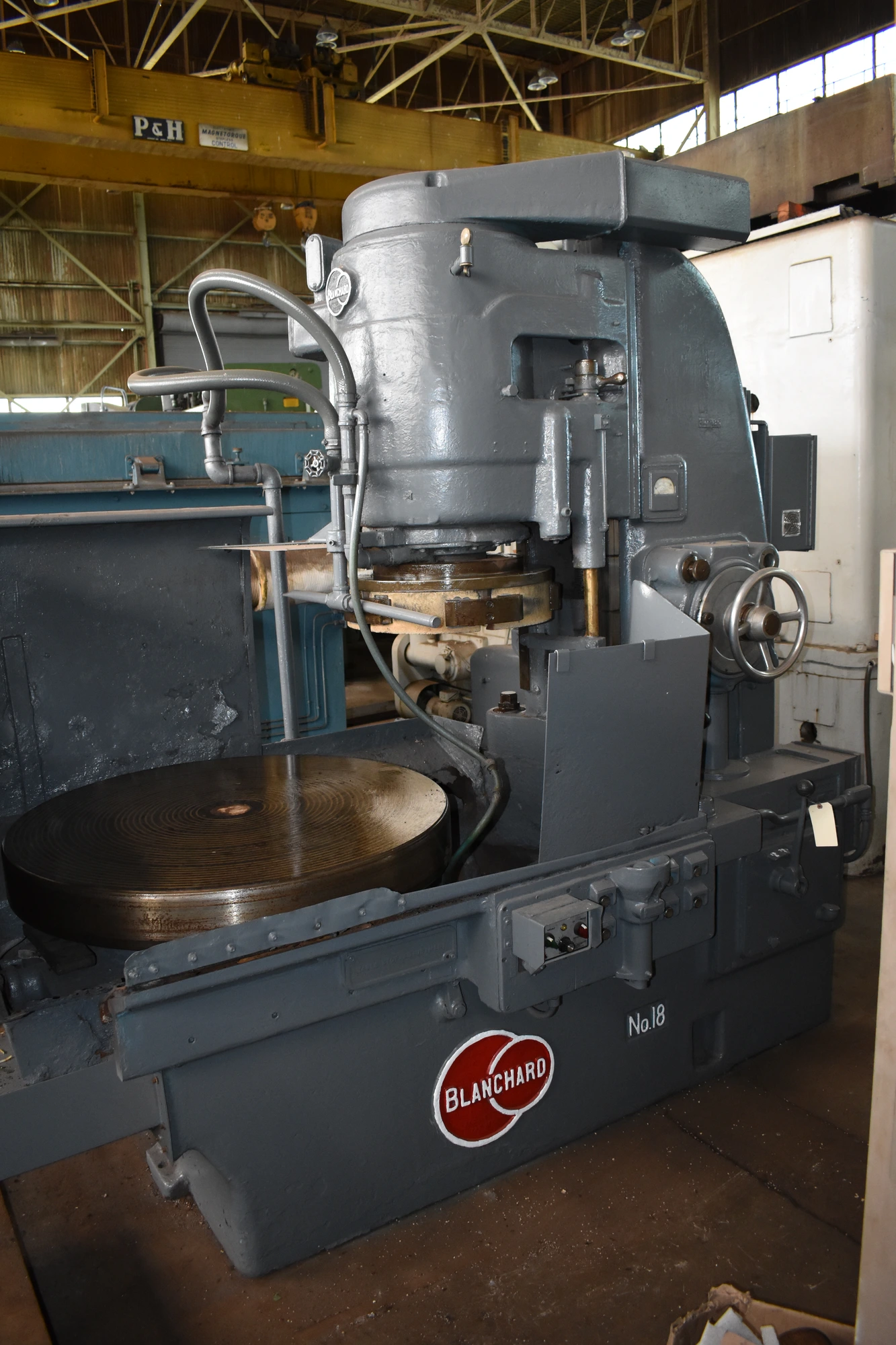

42" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 9503, Model 18-42
| Chuck Size | 42" | 1,066.8 mm |
| Horz/Vert | Vert | Vert |
| Power | 35 hp | 26.1 kW |
| Swing | 49" | 1,244.6 mm |
| Under Wheel | 10.5" | 266.7 mm |
| Grinding Wheel Dia. | 42" | 1,066.8 mm |
| Dimensions | 9'9" x 5'5", 8'2" height | 9'9" x 5'5", 8'2" height |
| Weight | 13900 | 13900 |
42" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 9503, Model 18-42
EQUIPPED WITH:
Vertical Spindle Machine Design
42" Diameter Magnetic Chuck
Segmented Grinding Wheel
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 42"
Magnetic Chuck Face, Diameter 42"
Swing Between Coolant-Guards 49"
Magnetic Chuck Work Load Capacity 2000 LBS
Height Under Grinding Wheel, Maximum 10.5"
Grinding Head Vertical Travel 10.5"
(6) Chuck Speeds, Range 6 to 33 RPM
(20) Power Down Feeds, Range .004 to .076 IPM
Spindle Motor, Horsepower 35 HP
Floor Space Required, W x D 9'9" x 5'5"
Overall Height 8'2"
Weight, Approximately 13900 LBS
F.O.B. OUR WAREHOUSE
