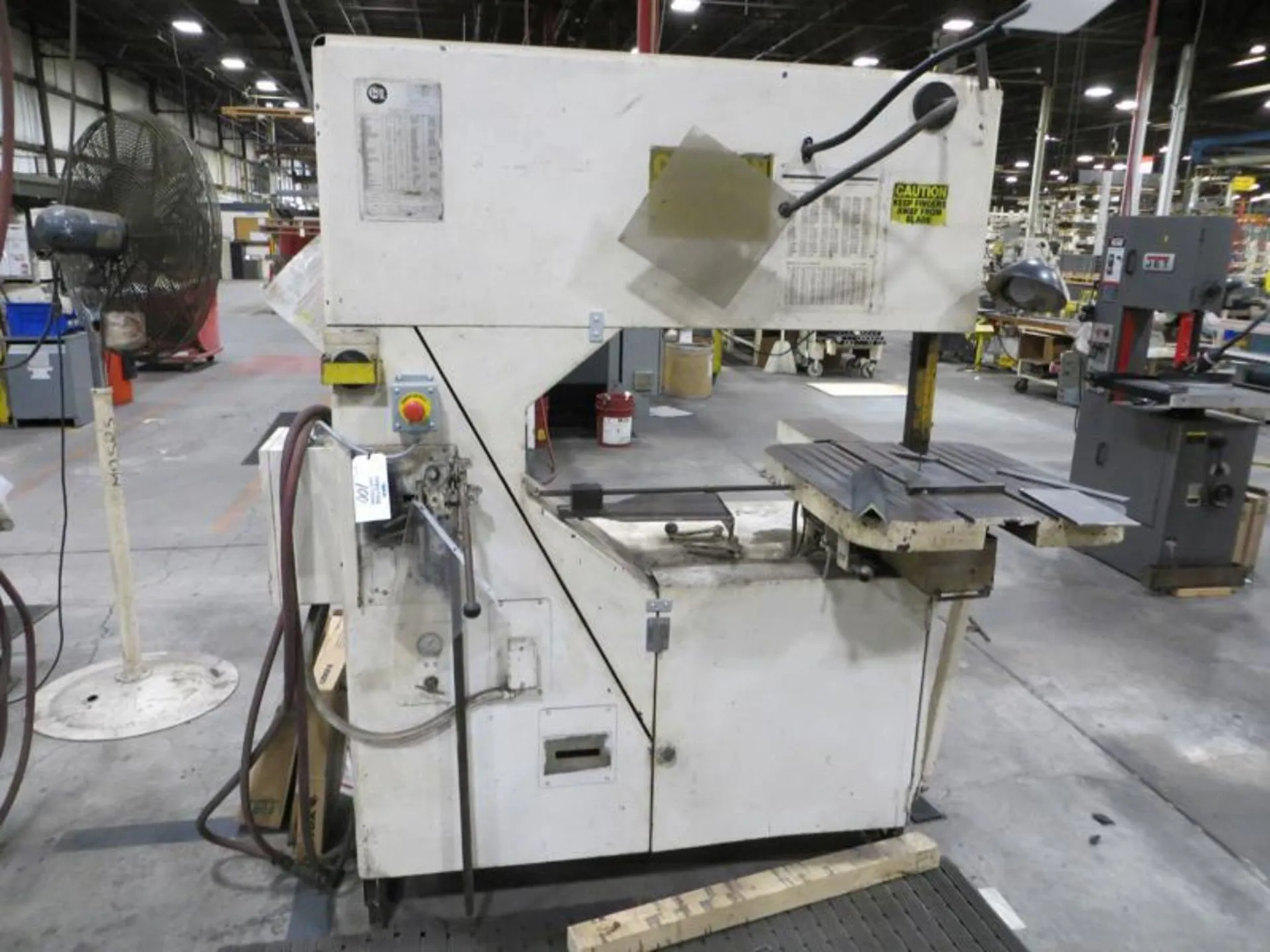

36" x 12" GROB VERTICAL BAND SAW
Serial No 1022, Model 4V36,
| Throat | 36" | 914.4 mm |
| Work Height | 12" | 304.8 mm |
| Power | 3 hp | 2.2 kW |
| Blade Width | 1" | 25.4 mm |
| Blade Length | 179" | 4,546.6 mm |
| FPM | 5000 | 5000 |
| Dimensions | 3'8" x 4'3" | 3'8" x 4'3" |
| Weight | 3000 LBS | 3000 LBS |
36" x 12" GROB VERTICAL BAND SAW
Serial No 1022, Model 4V36,
EQUIPPED WITH:
Tilting Table
AIR-HYDRAULIC Table Feed
Blade Welder & Grinder
(4) Speed Gear Box
Speed Indicator
Air Chip Blower
CATALOG SPECIFICATIONS:
Work Capacity, Nominal 36" x 12"
Work Height Capacity, Maximum 12"
Throat Depth, Rated 36"
Table Dimensions (Overall), W x D 28" x 24"
Table Longitudinal Travel, (X-Axis) 8"
Table Tilt, Left 10-DEGREES
Table Tilt, Right 45-DEGREES
Blade Length 179"
Blade Width, Range .07" to 1"
Blade Speeds, Infinitely Variable 40 to 5000 FPM
Main Motor, Horsepower 3 HP
Electrical System 220-440/3/60
Overall Dimensions, W x D 3'8" x 4'3"
Overall Height 6'4"
Weight, Approximately 3000 LBS
NOTE: Replacement Price On This Saw Is $22,113.96.
F.O.B. OUR WAREHOUSE
