5'15" AMERICAN ”32-SPEED” RADIAL DRILL w/36” DIAMETER WORK TABLE - TAPPING - #5 MT
Overview
Description

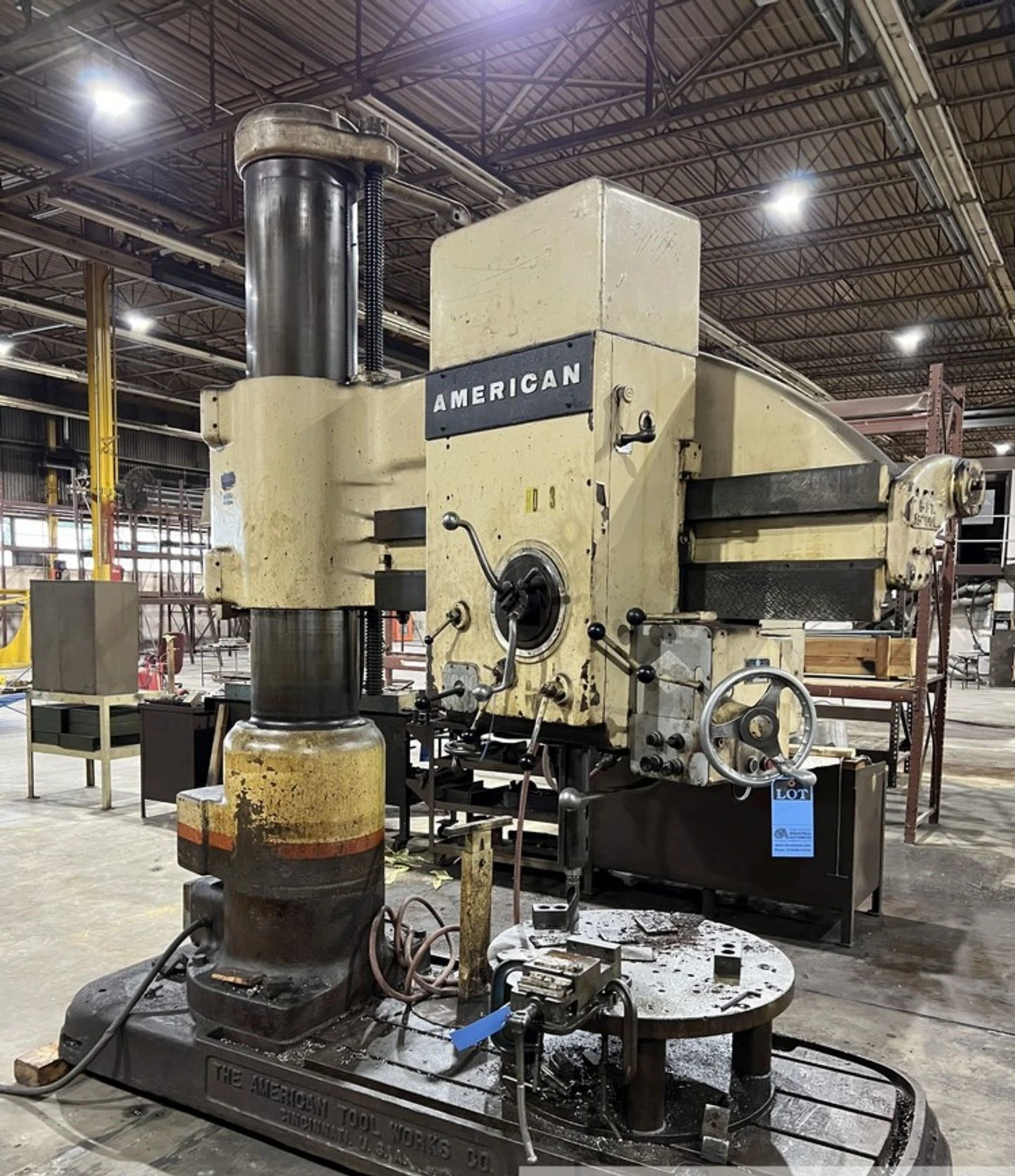

5'15" AMERICAN RADIAL DRILL
Serial No. 77-570,
Specifications
| Arm Length | 5' | 1.5 m |
|---|---|---|
| Column Dia. | 15" | 381 mm |
| Power | 15 hp | 11.2 kW |
| RPM | 1,600 RPM | 1,600 RPM |
| Dimensions | 72 x 42 in | 72 x 42 in |
| Weight | 18000 LBS | 18000 LBS |
5'15" AMERICAN RADIAL DRILL
Serial No. 77-570,
EQUIPPED WITH:
36" Diameter Work Table
Tapping Capabilities - Plain Base
(32) Spindle Speeds
Power Column Clamping
Power Rapid Traverse To Head
Coolant System
CATALOG SPECIFICATIONS:
Arm Length 5'
Column Diameter 15"
Spindle Taper #5 MT
Spindle Diameter 3.25"
(32) Spindle Speeds, Range 20 to 1600 RPM
(16) Spindle Feeds, Range .003 to .125 IPR
(4) Tapping Leads, Range 8 to 18 TPI
Drills to Center of Circle on Base 120"
Distance, Spindle to Base, Maximum 66"
Distance, Spindle to Base, Minimum 8.5"
Face of Column to Spindle, Minimum 14"
Vertical Spindle Travel in Head 18"
Vertical Arm Travel on Column 39.5"
Horizontal Head Travel on Arm 46"
Base Dimensions, L x W 72" x 42"
Height of Base 9"
Motor, Horsepower 15 HP
Weight, Approximately 18,000 LBS.
F.O.B. OUR WAREHOUSE
