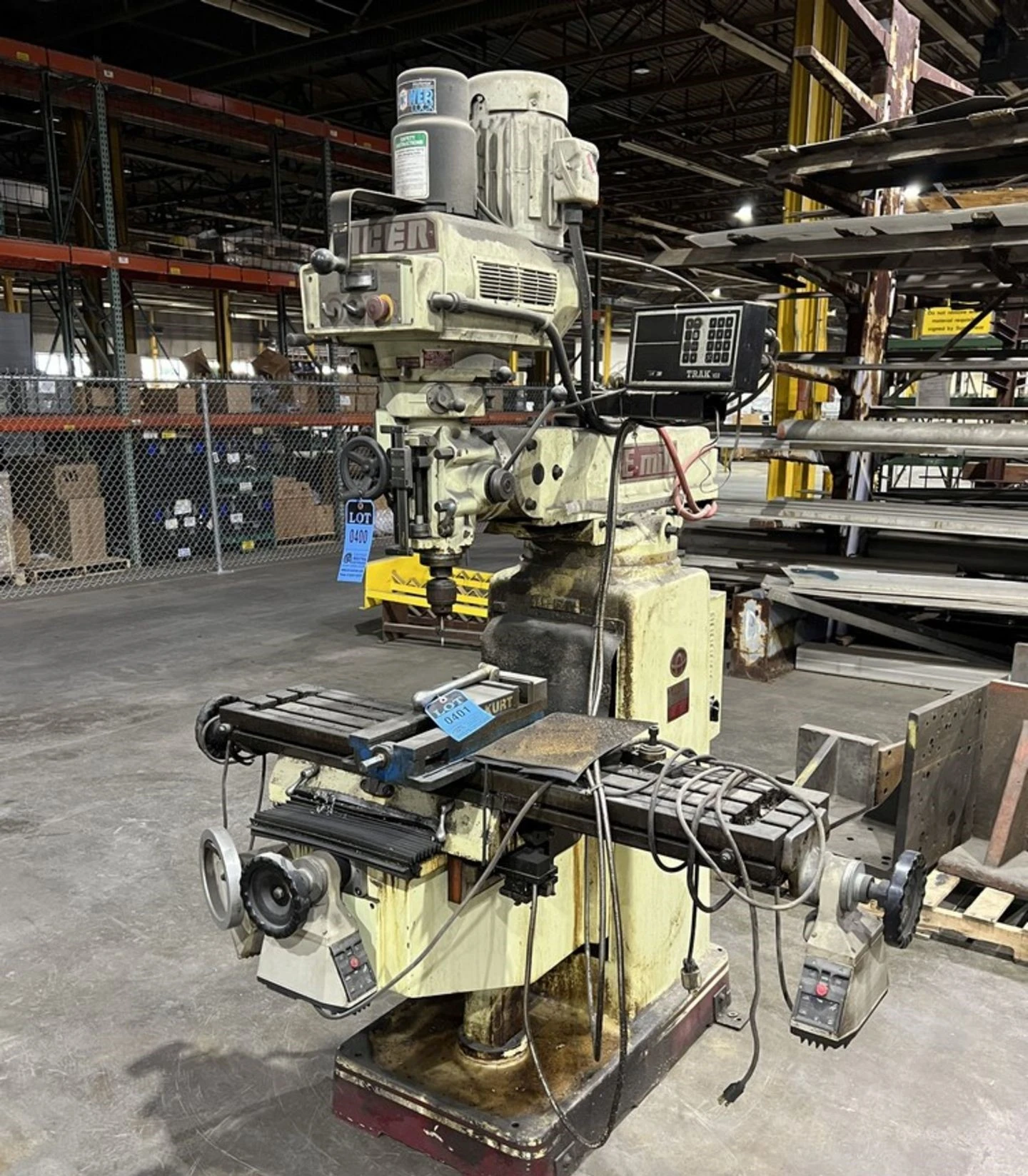

3VK-EVS ACER "E-MILL" VERTICAL MILL w/DIGITAL READOUTS
Serial No 9907-072, Model 3VK,
| Table-W | 10" | 254 mm |
| Table-L | 50" | 1,270 mm |
| Travel-Long | 34" | 863.6 mm |
| Travel-Cross | 16" | 406.4 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,500 RPM | 4,500 RPM |
| Taper | #R-8 | #R-8 |
| Dimensions | 98 x 79 | 98 x 79 |
| Weight | 3100 | 3100 |
3VK-EVS ACER "E-MILL" VERTICAL MILL w/DIGITAL READOUTS
Serial No 9907-072, Model 3VK,
EQUIPPED WITH:
SWI "Trak 102" 2-Axis Digital Readouts
Power Longitudinal Table Feed (Optional)
Power Cross Table Feed (Optional)
Power Vertical Table Feed (Optional)
Power Down-Feed to Quill
Power Draw Bar
Kurt Manual Vise
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 10" x 50"
Table Longitudinal Travel (X-Axis) 34"
Saddle Cross Travel (Y-Axis) 16"
Knee Vertical Travel (Z-Axis) 16"
Quill Travel (Z-Axis) 5"
Ram Travel 20"
Spindle-Center to Column, Minimum 4"
Spindle-Center to Column, Maximum 27"
Spindle-Nose to Table, Minimum 1"
Spindle-Nose to Table, Maximum 18"
Quill, Diameter 3.375"
Spindle Taper #R-8
Spindle-Head Swivel, Degrees 90-DEGREES
Spindle-Head Tilt, Degrees 45-DEGREES
Spindle Speeds, Range 60 to 4500 RPM
Power Quill Feeds, Range .0015 to .006 IPR
Spindle Motor, Horsepower 3 HP
Overall Dimensions, W x D 98" x 79"
Weight, Approximately 3100 LBS
F.O.B. OUR WAREHOUSE
