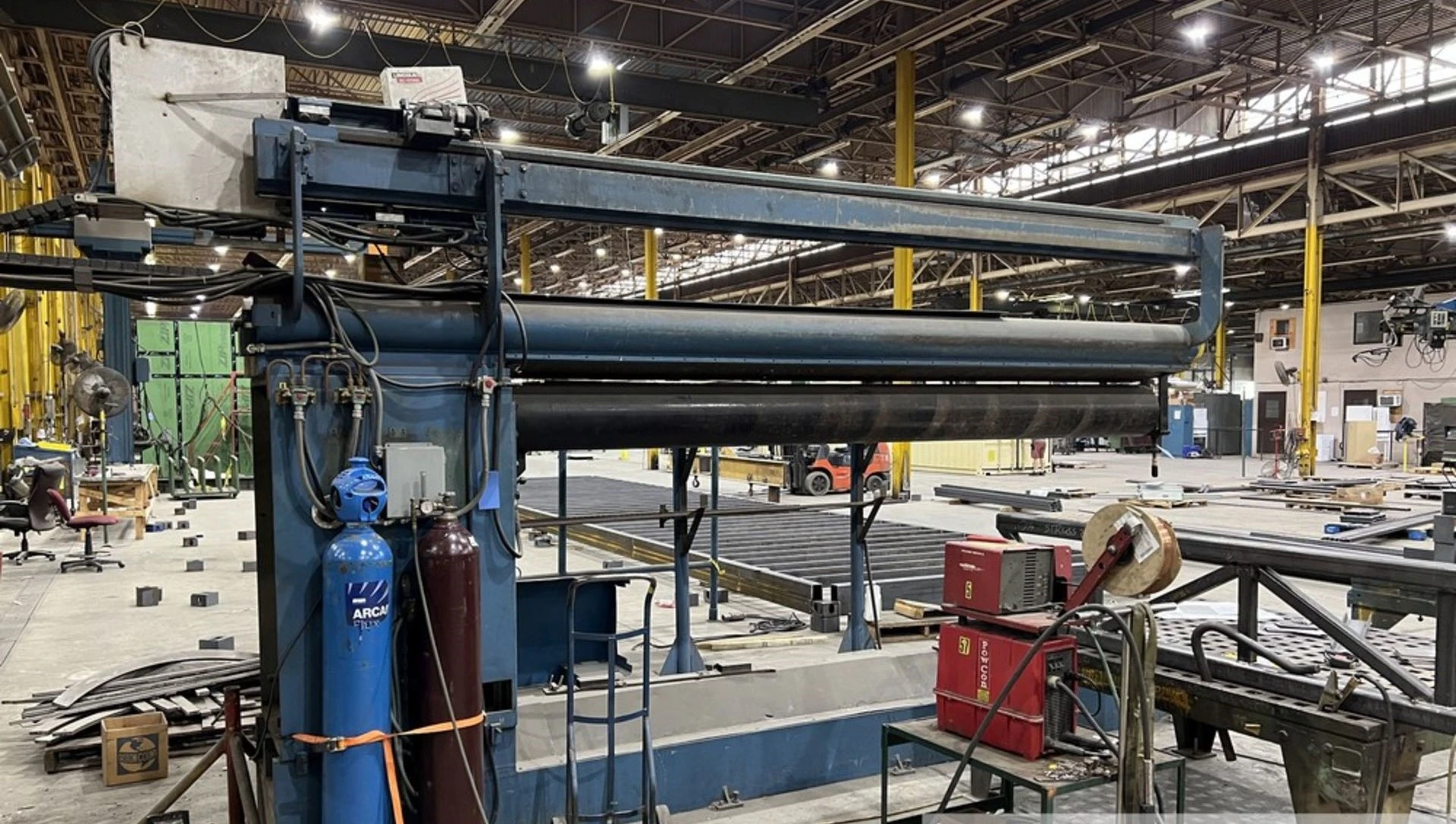

USED JETLINE LWC-144

12’ (144") JET-LINE “LWC-144” COMBINATION INTERNAL EXTERNAL LONGITUDINAL SEAM WELDER - Raised Base - Miller & Jetliner Welding Equipment

144" JETLINE COMBINATION INTERNAL EXTERNAL
LONGITUDINAL SEAM WELDER
Serial No 962029, Model LWC-144,

EQUIPPED WITH:
Raised Base
Jetline "SWC-3A" Carriage w/Standard
Jetline Carriage Control (S/N 962029)
Welding Package: 450 AMP Miller "DELTA 452" Welder,
Miller "70" Series Torch Control, Miller Head & Torch

CATALOG SPECIFICATIONS:
Welding Length Capacity 144" 3660 MM
Part Diameter, Internal Maximum 55" 2.5 M
Part Diameter, External Maximum
Part Diameter, External Minimum 12.25" 311 MM
Thickness Capacity, Range .020" to .375"
Thickness Capacity, Range .5 to 10 MM
Carriage Speed, Range 3 to 135 IPM
Carriage Speed, Range 75 to 3450 MMPM
Overall Length 200" 5080 MM
Overall Width 42" 1070 MM
Overall Height 100" 1940 MM
Weight, Approximately 13000 LBS 5900 KG

NOTE: The Combination Style Seam Welder Is Designed
For The Welding Of Cylindrical Tanks And Vessels. Parts
Can Be Loaded Either Under (For Smaller Diameters) Or
Over The Tabletop. (For Larger Diameters) The Raised
Base Allows For Larger Diameters To Be Welded Than
Standard.
F.O.B. OUR WAREHOUSE
