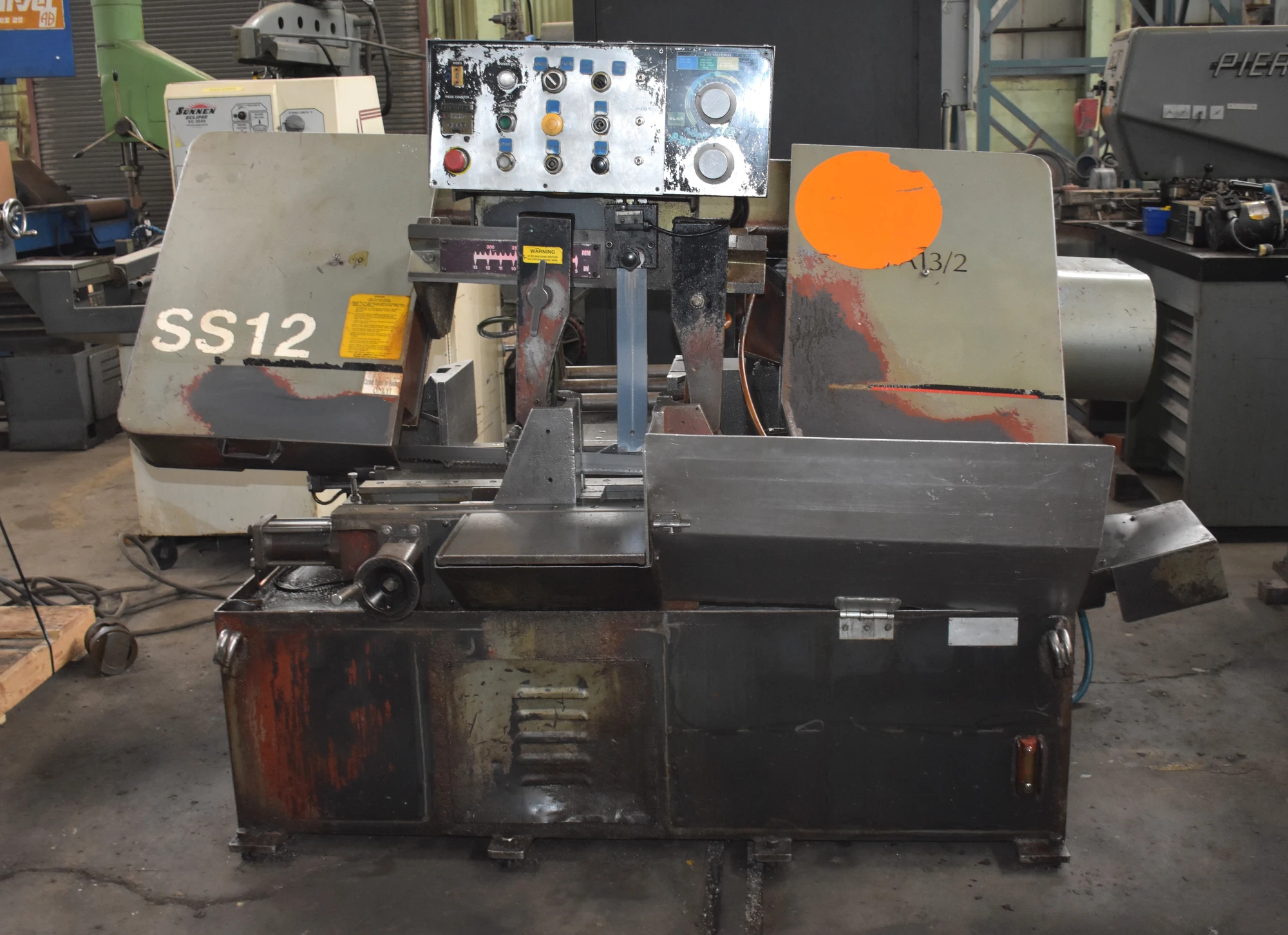

13" x 14.1" MARVEL/SPARTAN AUTOMATIC
HORIZONTAL BAND SAW
Serial No EPA130393, Model PA13N,
Series Spartan
| Rect-Cap (H) | 13" | 330.2 mm |
| Rect-Cap (W) | 14.1" | 358.14 mm |
| Rounds-Cap | 13" | 330.2 mm |
| Power | 5 hp | 3.7 kW |
| Type (Auto, Manual, Semi) | Auto | Auto |
| Blade Width | 1.25" | 31.75 mm |
| Blade Thickness | 0.042" | 1.0668 mm |
| Blade Length | 156" | 3,962.4 mm |
| Weight | 36300 | 36300 |
13" x 14.1" MARVEL/SPARTAN AUTOMATIC
HORIZONTAL BAND SAW
Serial No EPA130393, Model PA13N,
Series Spartan
EQUIPPED WITH:
47" AUTOMATIC Hydraulic-Driven Stock-Feed Table
w/MULTIPLE Indexing
1-1/4" Blade Capabilities
Hydraulic Stock-Feeding and Clamping Vises
Hydraulic Band Saw Up-Feed and Down-Feed
Hydraulic Band Tension
Automatic Auger Type Chip Removal
CATALOG SPECIFICATIONS:
Flat Stock Capacity, Maximum 13" x 14.1"
Round Stock Capacity, Maximum 13"
Vise Opening, Maximum 14.5"
Band Length 13'6"
Band Width 1-1/4"
Band Thickness .042"
Shuttle Travel, One Cycle 0 to 19.6"
Shuttle Travel, Multi-Cycle 177.1"
Band Speeds, Variable 80 to 400 SFPM
Feed Force, Infinitely Variable 0 to 300 LBS
Load Capacity, Maximum 6250 LBS
Motor, Horsepower 5 HP
Hydraulic Motor, Horsepower 1 HP
Weight, Approximately 36300 LBS
F.O.B. OUR WAREHOUSE
