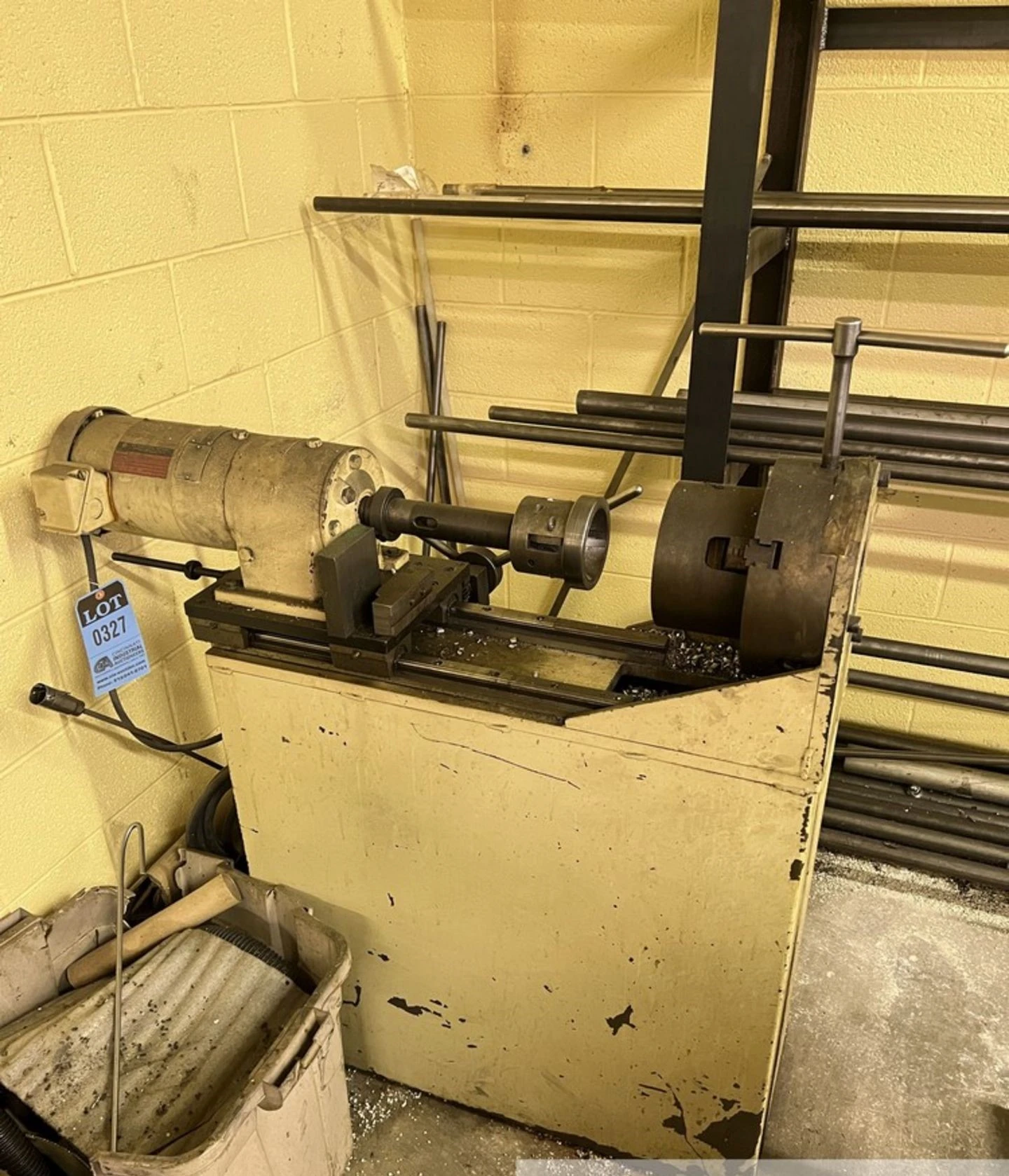

USED LNS AMERICA 76JB

3" LNS AMERICA "76JB" BAR STOCK CHAMFERING

MACHINE

Serial No 3115 138, Model 76JB

3" LNS AMERICA "76JB" BAR STOCK CHAMFERING
MACHINE
Serial No 3115 138, Model 76JB

EQUIPPED WITH:
8-1/2" 3-Jaw Heavy-Duty Chuck
Manually Operated Rack & Pinion
Adjustable Feed Stop
Removable Chip Drawer

CATALOG SPECIFICATIONS:
Round Bar Capacity, Range 1/4" to 3"
Hexagon Bar Capacity, Range 1/4" to 2-5/8"
Square Bar Capacity, Range 1/4" to 2"
Motor Horsepower 1 HP/1745 RPM
Electrical System 230-460/3/60

NOTE: This Machine Provides And Economical Means
Of Preparing The End Of A Bar For Most Bar Feed
Systems, Thereby Freeing Your Turning Equipment
For Production Work.
F.O.B. OUR WAREHOUSE
