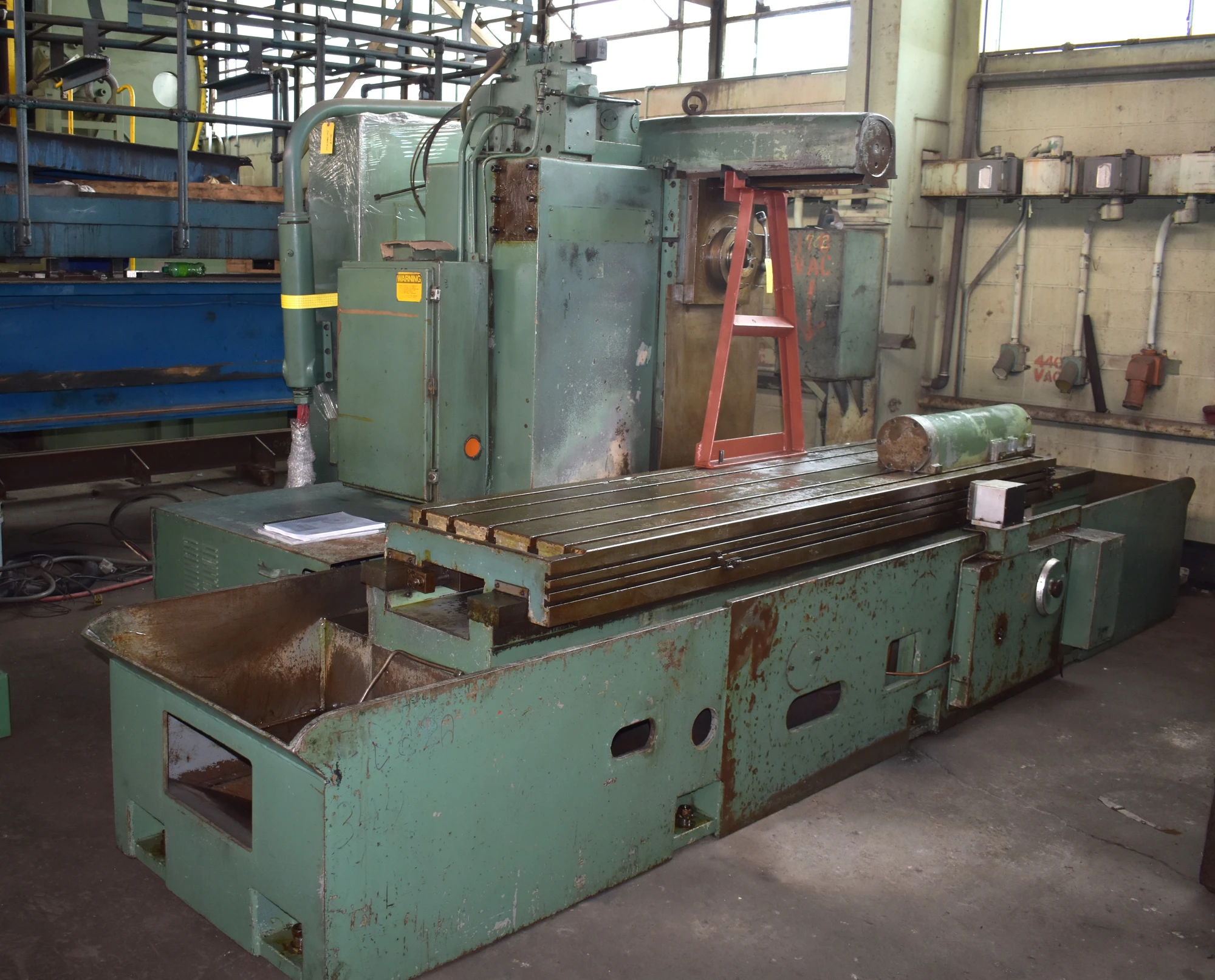

425-266 CINCINNATI-MILACRON "HYPOWERMATIC"
HORIZONTAL-SPINDLE PRODUCTION MILL
Serial No 311443P740001, Model 425-266,
Ltr DL, Series "HYPOWERMATIC"
| Table Size-W | 26" | 660.4 mm |
| Table Size-L | 96" | 2,438.4 mm |
| Power | 25 hp | 18.6 kW |
| RPM | 900 RPM | 900 RPM |
| Dimensions | 15'6" x 8' x 6'2" | 15'6" x 8' x 6'2" |
| Weight | 20000 | 20000 |
425-266 CINCINNATI-MILACRON "HYPOWERMATIC"
HORIZONTAL-SPINDLE PRODUCTION MILL
Serial No 311443P740001, Model 425-266,
Ltr DL, Series "HYPOWERMATIC"
EQUIPPED WITH:
Rise and Fall Head Travel
Automatic Quill Retraction
CATALOG SPECIFICATIONS:
Table Dimensions (Overall) W x L 26" x 106"
Table Working Surface, W x L 26" x 96"
Table Longitudinal Travel (X-Axis) 72"
Spindle-Head Vertical Travel (Y-Axis) 17.25"
Quill Cross Adjustment (Z-Axis) 6"
Spindle-Center to Table-Top, Minimum 4.75"
Spindle-Center to Table-Top, Maximum 22"
Table-Center to Spindle-Face, Minimum 9.5"
Table-Center to Spindle-Face, Maximum 15.5"
Quill Diameter 8.5"
Spindle Taper #50 NSTD
Spindle Speeds, Range 30 to 1200 RPM
Longitudinal Table Feeds, Range 1 to 100 IPM
Power Rapid Table Traverse 200 IPM
Spindle Motor, Horsepower 30 HP
Floor Space Required, L x D 15'6" x 8'
Overall Height 6'2"
Weight, Approximately 20000 LBS
F.O.B. OUR WAREHOUSE
