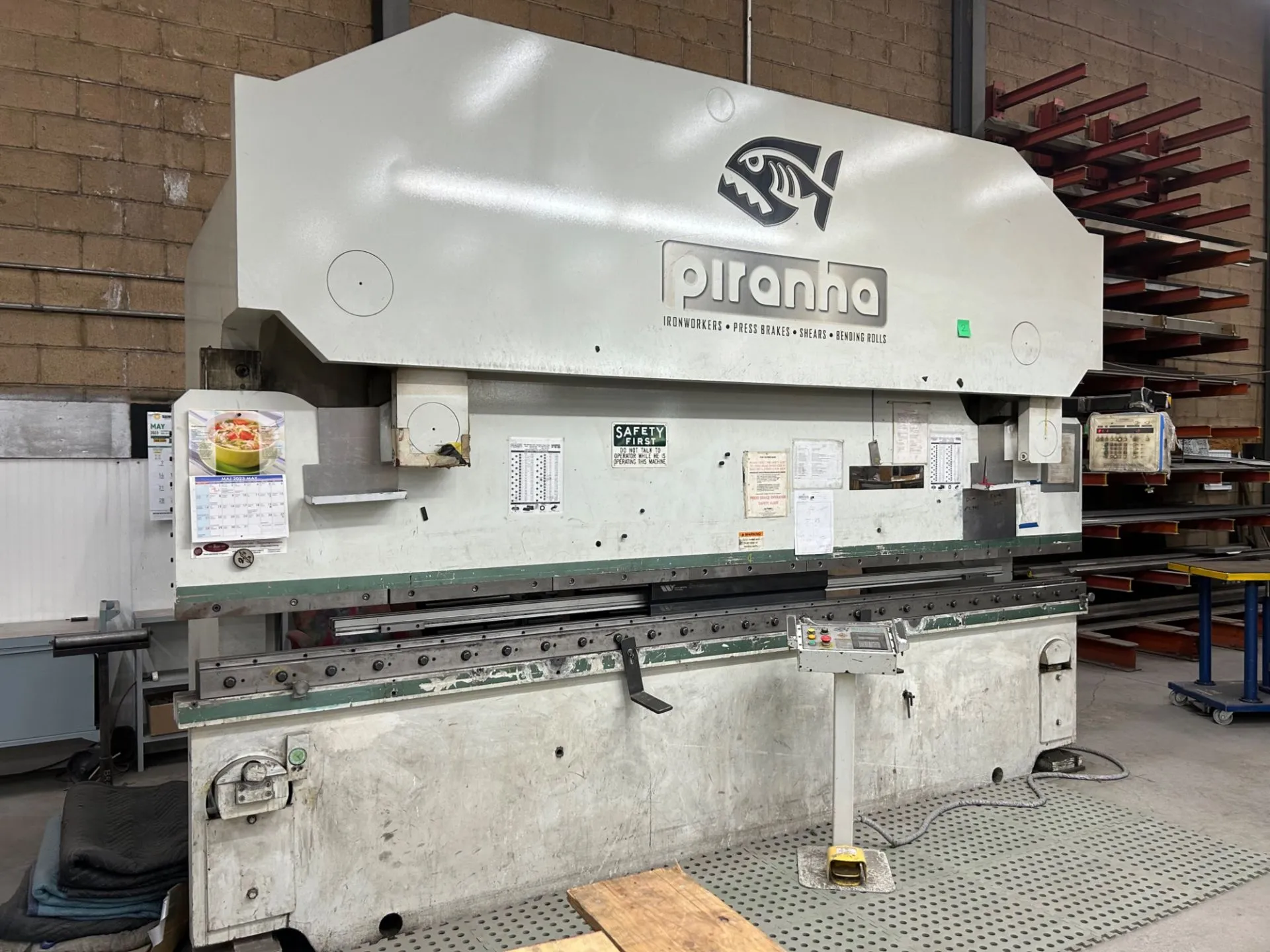

14' PIRANHA 350-TON CNC HYDRAULIC PRESS BRAKE
Serial No 1001, Model 350-14
| Tonnage | 350 T | 317.515 t |
| Type | HYD | HYD |
| Overall Length | 14' | 4.3 m |
| Between Housings | 12.5' | 3.8 m |
| Stroke | 8" | 203.2 mm |
| Dimensions | 168 x x 124 | 168 x x 124 |
| Weight | 61000 | 61000 |
14' PIRANHA 350-TON CNC HYDRAULIC PRESS BRAKE
Serial No 1001, Model 350-14
EQUIPPED WITH:
Automec CNC 300 Autogauge Back Gauge
Piranha Generation II Pedestal Control Stand
CATALOG SPECIFICATIONS:
Tonnage Capacity.......................... 350 TON
Overall Length of Bed and Ram....... 14'
Distance Between Housings........... 12'6"
Stroke Length.................................. 8"
Open Height.................................... 17"
Throat Depth.................................. 8"
Ram Speed. Approach................... 60 IPM
Ram Speed, Form.......................... 19 IPM
Ram Speed, Return........................ 60 IPM
Motor Horsepower.......................... 30 HP
Overall Dimensions, L x D 168" x "
Overall Height, Above Floor 124"
Bed Below Floor 24"
Weight Approximately 61,000 LBS
F.O.B. OUR WAREHOUSE
Tonnage Capacity: 350 TON
Overall Length of Bed and Ram: 14'
Distance Between Housings: 12'6"
Stroke Length: 8"
Open Height: 17"
Throat Depth: 8"
Ram Speed. Approach: 60 IPM
Ram Speed, Form: 19 IPM
Ram Speed, Return: 60 IPM
Motor Horsepower: 30 HP
