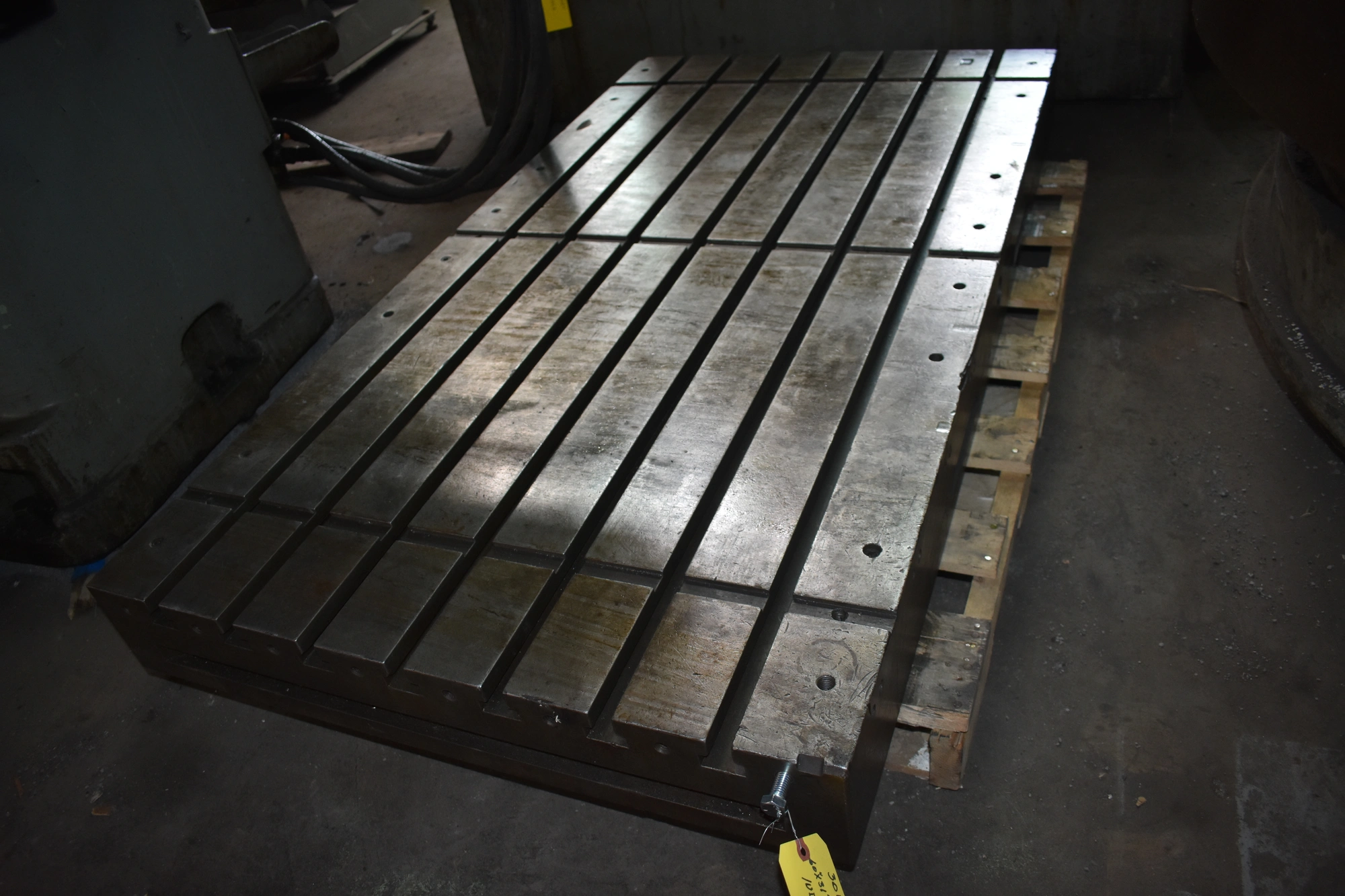

60" X 32" X 5" DEVLIEG "TYPE E" T-SLOTTED
INDEX/LAYOUT TABLE W/ADJUSTING BASE
Serial No 11045, Type E
| Width | 32" | 812.8 mm |
| Length | 60" | 1,524 mm |
| Thickness | 5" | 127 mm |
| Dimensions | 60 x 32 x 5 | 60 x 32 x 5 |
60" X 32" X 5" DEVLIEG "TYPE E" T-SLOTTED
INDEX/LAYOUT TABLE W/ADJUSTING BASE
Serial No 11045, Type E
EQUIPPED WITH:
36" x 36" x 2" Slotted Base For Adjusting
Locating Hole
Heavy-Box Section Casting
CATALOG SPECIFCATIONS:
Overall Table Dimensions, L x W 60" x 32"
Table Thickness 5"
Number Of T-Slots (7)
Base Dimensions:
Overall Dimesions, L x W x H 36" x 36" x 2"
Number Of Work Holding Slots (10)
Number Of Threaded Work Holding Holes (35)
NOTE: This Table Was Originally Designed To Be Used
With A DeVlieg Jigmill Allowing An Accurate Means
For Boring Gear Cases, Precision Parts, Etc., From
Two, Three, Or Four Sides Without Resetting Workpiece.
Obviously This Table Could Be Used For Any Layout
Type Work.
F.O.B. OUR WAREHOUSE
