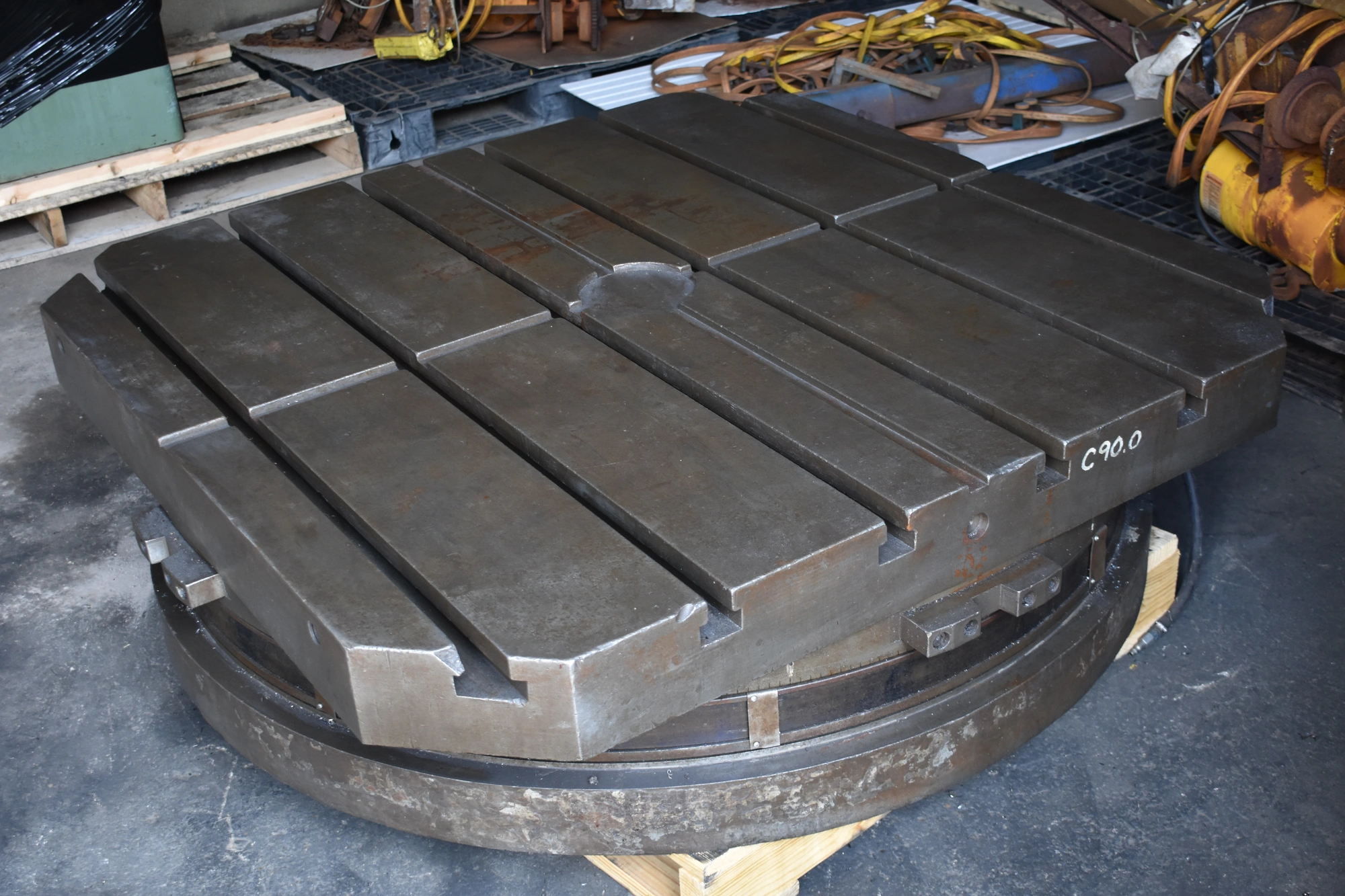

50" x 50" CINCINNATI-GILBERT AIR-LIFT
T-SLOTTED MANUAL ROTARY TABLE
Series 50
| Table Size-X | 50" | 1,270 mm |
| Table Size-Y | 50" | 1,270 mm |
| Dimensions | 50 x 50 | 50 x 50 |
| Weight | 4200 | 4200 |
50" x 50" CINCINNATI-GILBERT AIR-LIFT
T-SLOTTED MANUAL ROTARY TABLE
Series 50
EQUIPPED WITH:
Air-Lift MANUAL Table Rotation
360-Degree Table Graduations in 1-Degree Increments
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 50" x 50"
Table Diameter Over Corner 62,5"
Table Weight Load Capacity, Centered 15000 LBS
Table Weight Load Capacity, Offset 12000 LBS
T-Slots Total, Number (6)
Overall Height Of Table 14"
Weight of Table, Approximately 4200 LBS
NOTE: These Specifications Are As Taken From Previous
Owner's Records And A Close Physical Inspection
However We Could Not Find An Actual Name Plate
Or Serial Number On The Table.
F.O.B. OUR WAREHOUSE
