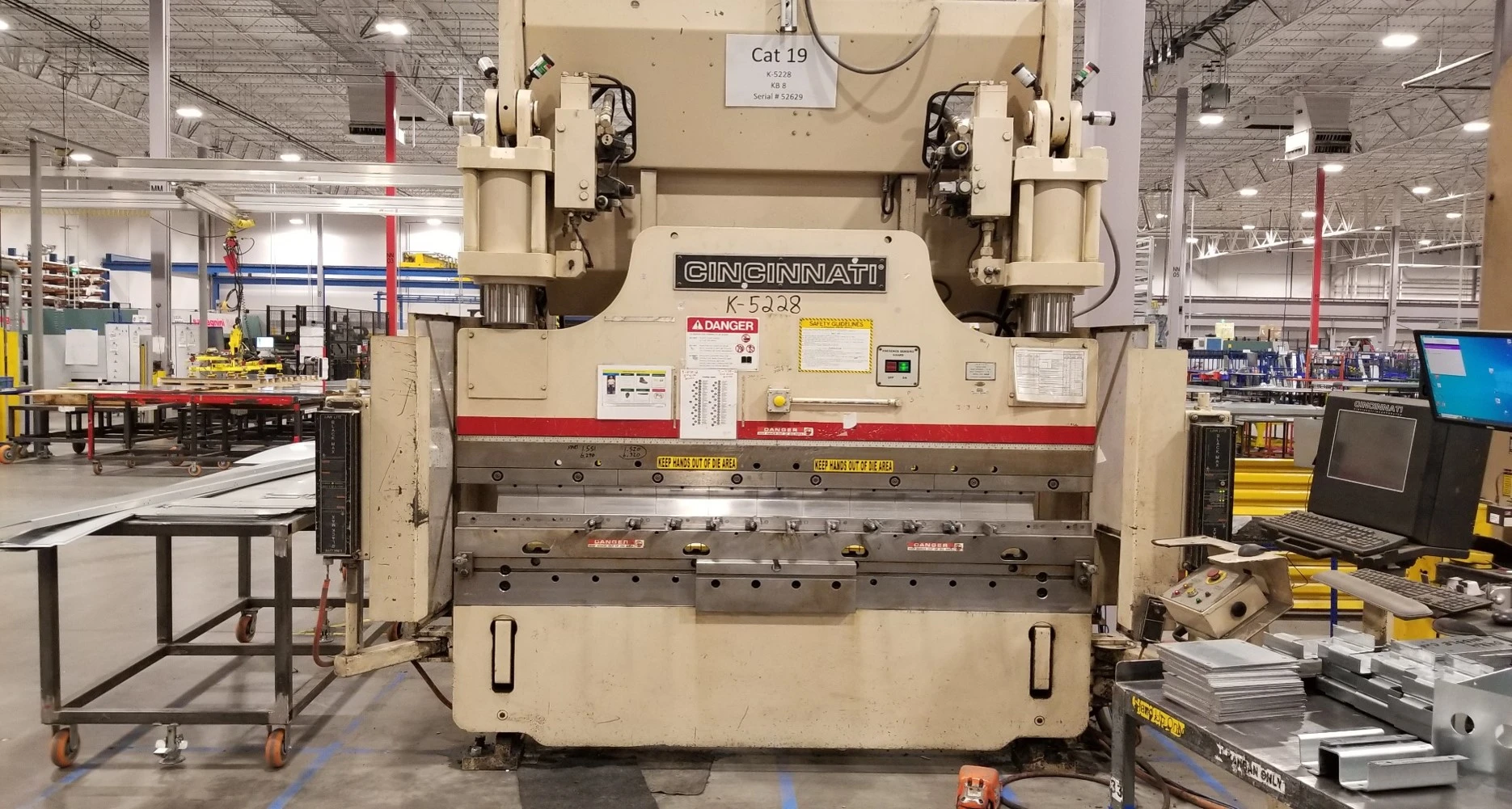

USED 2002 CINCINNATI INC 175AFX6FT

8' CINCINNATI-INC 175-TON "AUTOFORM" CNC

HYDRAULIC PRESS BRAKE

New 2002, Serial No 52629, Model 175AFX6'

8' CINCINNATI-INC 175-TON "AUTOFORM" CNC
HYDRAULIC PRESS BRAKE
New 2002, Serial No 52629, Model 175AFX6'

EQUIPPED WITH:
Autoform CNC Controls
CNC Crownable Filler Block
Operators Stand
Black Max Link Lite Light Curtains
No Pit Required

CATALOG SPECIFICATIONS:
Tonnage Capacity, Rated 175 TON
Tonnage Capacity @ Full Forming Speed 190 TON
Overall Length of Bed and Ram 8'
Distance Between Housings 6'6-3/4"
Bending Capacity 6'3' x 3/8"
Stroke Length 10"
Open Height 17"
Closed Height 7"
Throat Depth 8"
Ram Speed, High Approach 260 IPM
Ram Speed, Variable Forming 1 to 65 IPM
Ram Speed, Variable Return 1 to 290 IPM
Hydraulic Motor, Horsepower 25 HP
Weight, Approximately 19500 LBS

NOTE: This Machine Does Not Come Equipped With
A Back Gauge
F.O.B. OUR WAREHOUSE
