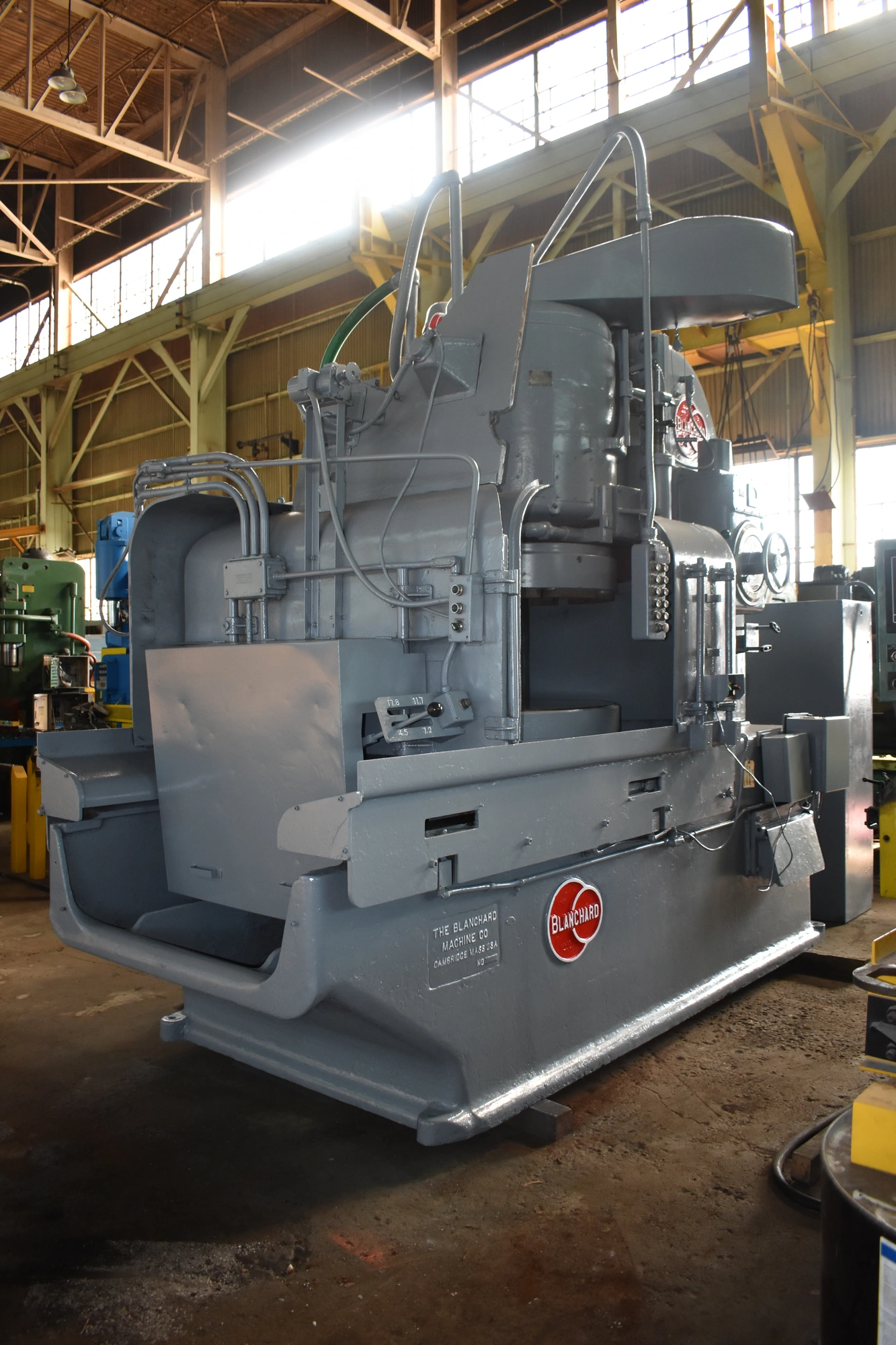

48/60" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 9802, Model 32-48
| Chuck Size | 48" | 1,219.2 mm |
| Horz/Vert | Vert | Vert |
| Power | 60 hp | 44.7 kW |
| Swing | 60" | 1,524 mm |
| Under Wheel | 16" | 406.4 mm |
| Grinding Wheel Dia. | 32" | 812.8 mm |
| Dimensions | 12'4'' x 7'1'' x 10'9'' | 12'4'' x 7'1'' x 10'9'' |
| Weight | 34000 LBS | 34000 LBS |
48/60" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 9802, Model 32-48
EQUIPPED WITH:
Updated 48" Diameter Magnetic Chuck
w/Magna-Flux Controller Variable Neutrofier
32" Segmented Grinding Wheel
60 HP Spindle Motor - 16" Vertical Range
Centromatic Lubrication System
Coolant System (Built-In)
CATALOGUE SPECIFICATIONS:
Magnetic Chuck, Diameter 48"
Swing Diameter Inside Workguards 60"
Grinding Vertical Range, Maximum 16"
Grinding Wheel Speed 514 RPM
Chuck Speeds, Range 3 to 13 RPM
Power Down Feeds, Range .000 to .005 IPR
Spindle Motor, Horsepower 60 HP
Chuck Rotation Motor 5 HP
Electrical System 440/3/60
Overall Dimensions, L x W 12'4" x 7'1"
Overall Height 10'9"
Weight, Approximately 34000 LBS
F.O.B. OUR WAREHOUSE
