USED MODERN 3K-LH
Overview

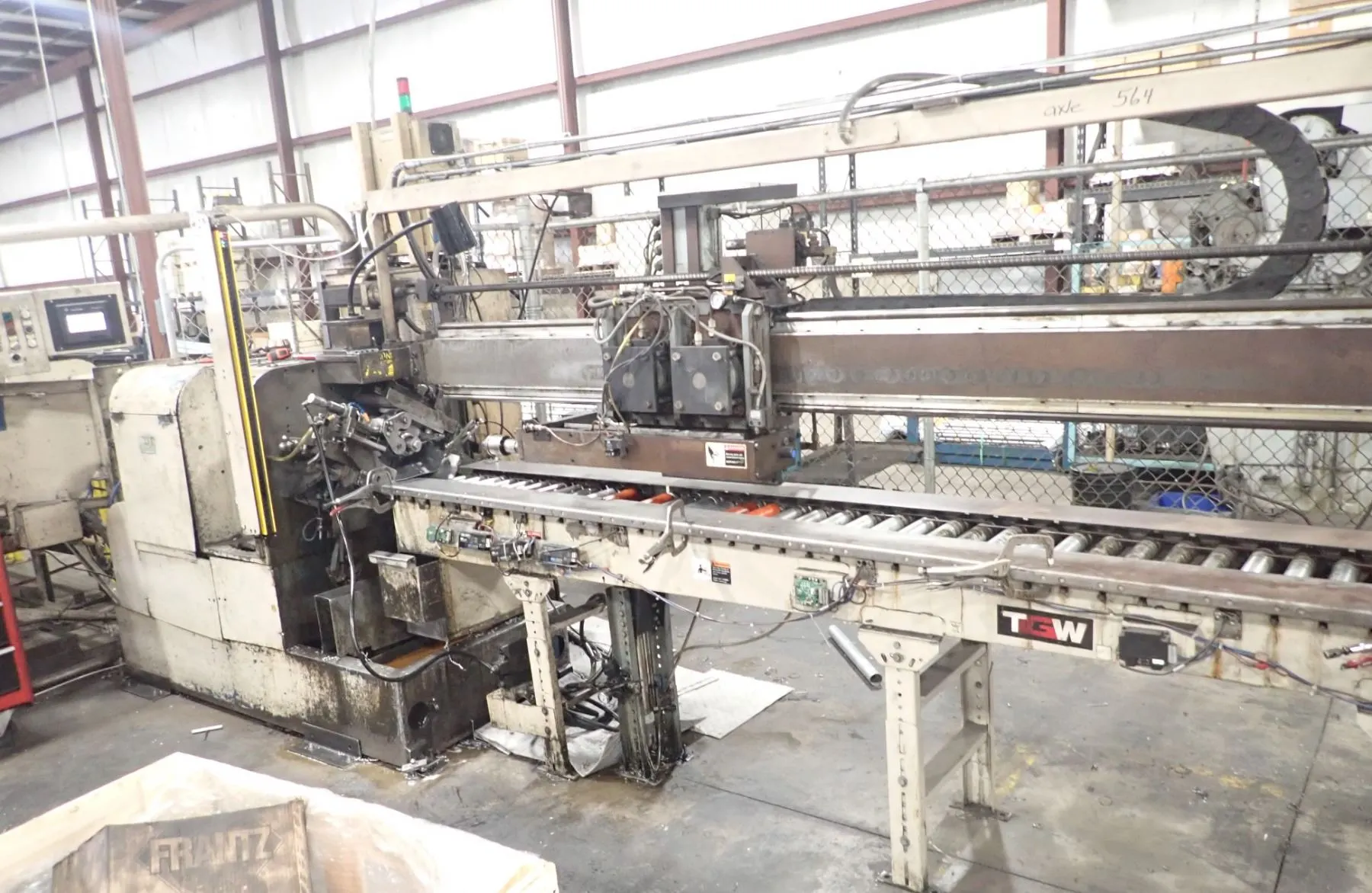

3" MODERN #3K-LH AUTOMATIC PIPE-TUBE-BAR CUT-OFF-LATHE
Serial No 3K3225LH, Model 3K-LH
Specs
3" MODERN #3K-LH AUTOMATIC PIPE-TUBE-BAR CUT-OFF-LATHE
Serial No 3K3225LH, Model 3K-LH
EQUIPPED WITH:
Updated Allen Bradley Panel View 550 PLC
Controls
20' Modern Automatic Bar-Feed System
11' Overhead Micrometer Stock-Stop
Allowing 8' Cut-Off Length
Front and Rear Cut-Off Slides
15' Exit Roller Conveyor
CATALOG SPECIFICATIONS:
Diameter Capacity, Minimum 1/4" 6MM
Diameter Capacity, Maximum 3-1/8" 79MM
Wall Capacity, Maximum 1-1/2" 38MM
Solid Bar Capacity, Maximum 3" 76MM
Stock-Stop Length Adjustment 8'
Spindle Speeds, Range 130 to 2000 RPM
Stock Feed Rate 160 FPM 49 MPM
Main Motor, Horsepower/RPM 5 HP
Motor Voltage 440 Volts
F.O.B. OUR WAREHOUSE
