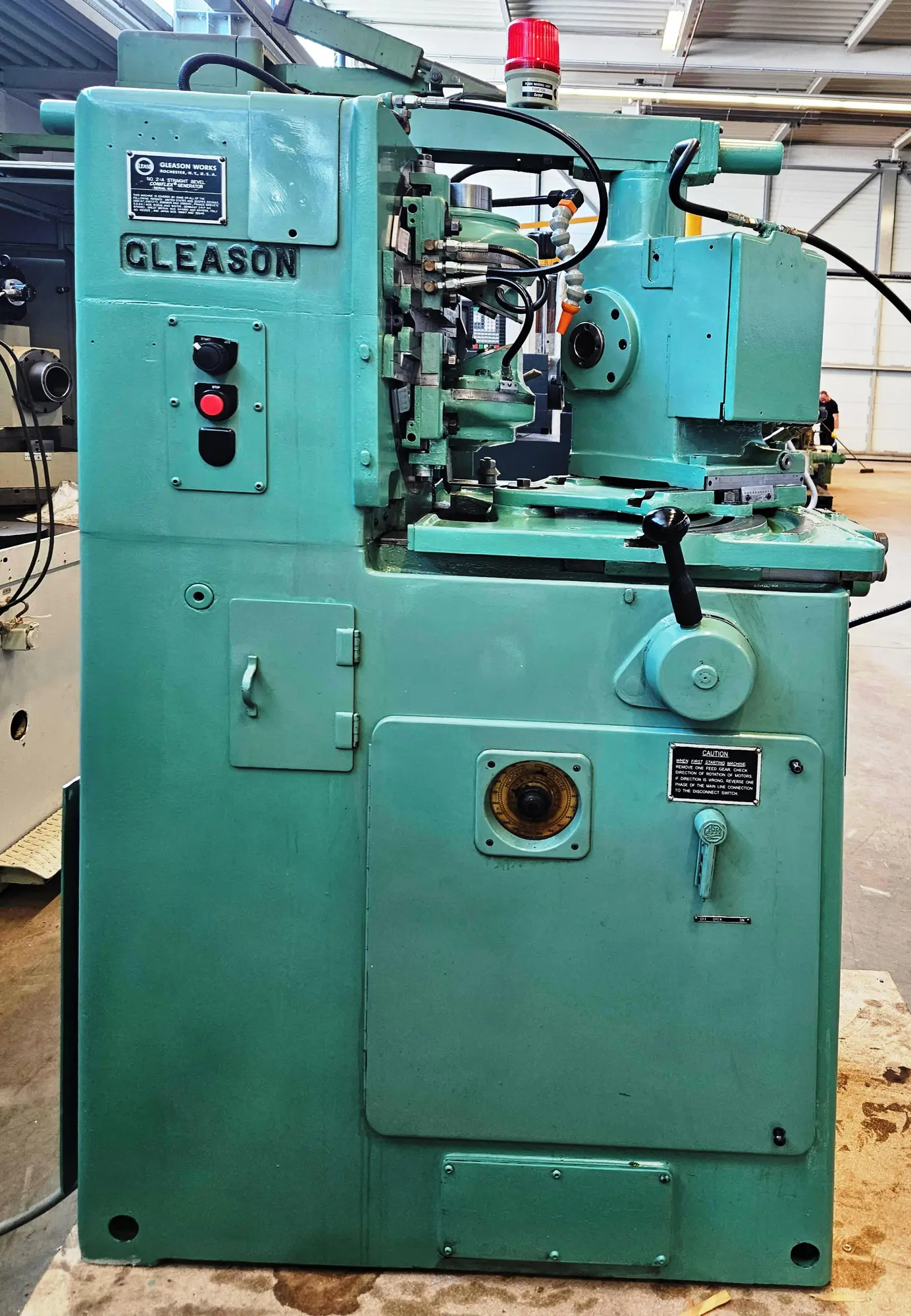

USED 2022 GLEASON 2A

2A GLEASON "Coniflex" Straight Bevel Gear Generating Machine, suitable for the cutting of straight bevel gears and pinions up to 4.5" (114mm) in diameter, 7/16" (12.5mm) face width, up to 16 DP (1.6 Module)

Serial No. 30133 (professionally refurbished 2022)

The machine is being offered in first class operational order having been completely reviewed in the shop of the service specialist Mr. Carlo Nembri in Milano, Italy. The machine would be supplied in a condition ready for immediate, trouble-free service, on a multi-shift basis.

EQUIPMENT / FEATURES:

Hydraulic double acting chucking mechanism, w/draw-in bar and nut

Self-contained hydraulic system

Self-contained coolant system

Automatic counter and stop

All machine dials, scales, calibrated in Imperial “inch”

(46) index change gears

(19) speed & feed change gears

(8) generating cams

(2) feed cams

full complement of electrics, (motors/controls)

full guards, covers

shipping bracket for work-slide

operator's manuals, parts list, wiring diagrams

2A GLEASON "Coniflex" Straight Bevel Gear Generating Machine, suitable for the cutting of straight bevel gears and pinions up to 4.5" (114mm) in diameter, 7/16" (12.5mm) face width, up to 16 DP (1.6 Module)
Serial No. 30133 (professionally refurbished 2022)
The machine is being offered in first class operational order having been completely reviewed in the shop
of the service specialist Mr. Carlo Nembri in Milano, Italy. The machine would be supplied in a condition ready for immediate, trouble-free service, on a multi-shift basis.

EQUIPMENT / FEATURES:
Hydraulic double acting chucking mechanism, w/draw-in bar and nut
Self-contained hydraulic system
Self-contained coolant system
Automatic counter and stop
All machine dials, scales, calibrated in Imperial “inch”
(46) index change gears
(19) speed & feed change gears
(8) generating cams
(2) feed cams
full complement of electrics, (motors/controls)
full guards, covers
shipping bracket for work-slide
operator's manuals, parts list, wiring diagrams

PRINCIPAL SPECIFICATIONS:
Maximum pitch diameter 4.5 (114mm)
Maximum cone distance 2.25" (57mm)
Maximum face-width .43" (11mm)
Work head angle 0 to 90 degrees
Coarsest Diamteral Pitch (Module) 16 DP (1.59 Module)
Diameter of taper hole in work-spindle
at large end of taper 1.496" (38mm)
Work spindle taper (per ft.) .5" (12.7mm)
Depth of taper 3" (76.2mm)
Maximum distance, spindle nose
to machine center 5" (127mm)
Minimum distance, spindle nose
to machine center 1.25" (31.75mm)
Index range 10 to 120
Pressure angle 20 degrees
Cutter speed 63 to 559 Ft./Min.
Feed per second (per tooth) .72 to 24
Main drive motor .75 HP/1800 rpm
Overall machine length 39.5" (1003mm)
Overall machine width 26.5" (673mm)
Overall machine height 60" (1524mm)
Approximate machine net weight 3,425 Lbs. (1553 kGs)

Price: On Location, Lahr, Germany ...$89500 Euros
